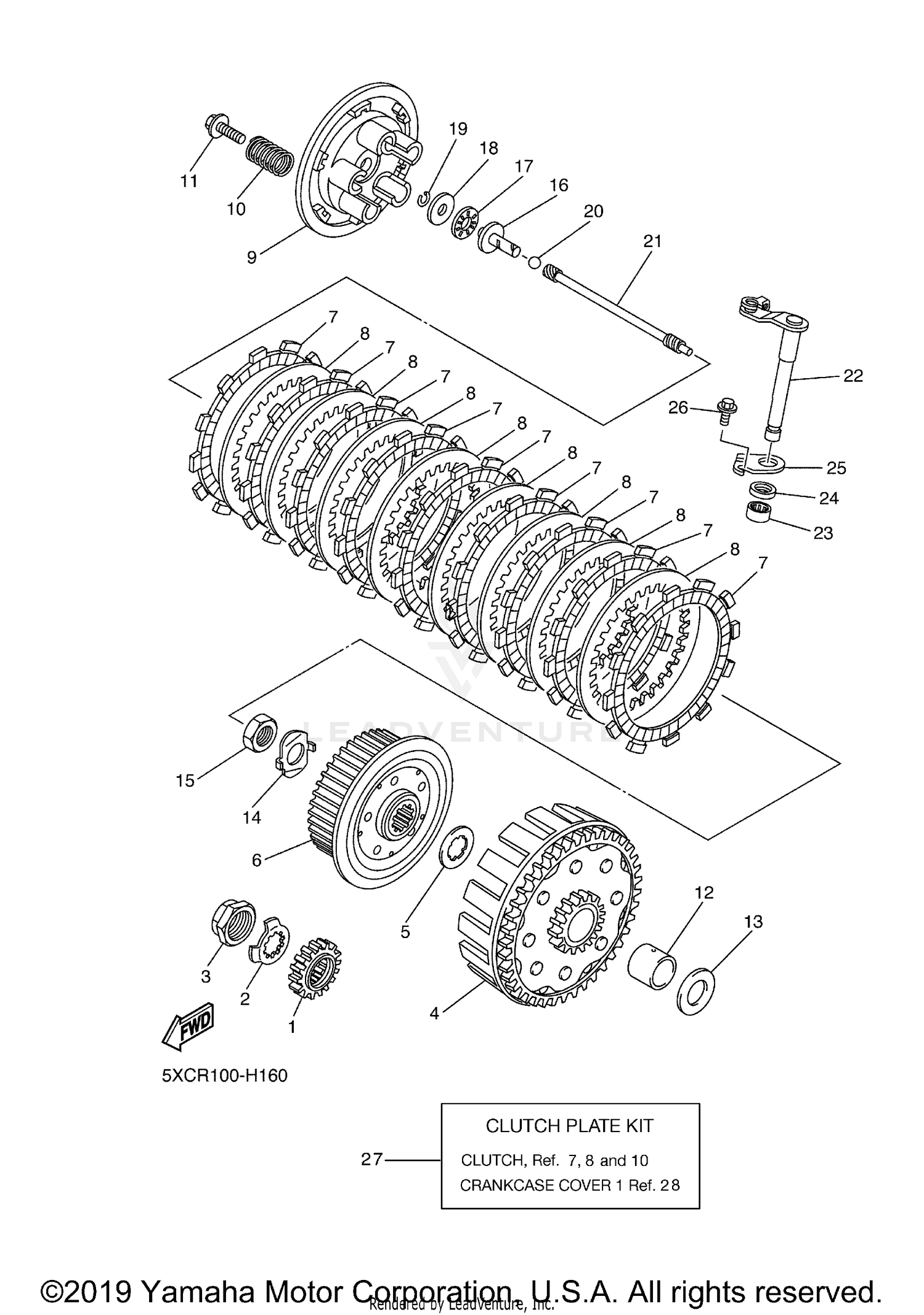

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
5NL-16111-01-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, LOCK
90215-20003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-18001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRIMARY DRIVEN GEAR COMP.
5XC-16150-10-00
|
$527.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, THRUST 1
5XC-16154-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOSS, CLUTCH
5NL-16371-30-00
Superseded by 5NL-16371-31-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, FRICTION
5XC-16321-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH 2
5NL-16325-00-00
Superseded by 5NL-16325-20-00
|
$7.49 | ||
|
Unavailable |
|||
|
#9
PLATE, PRESSURE 1
5HD-16351-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
90501-230A2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, WITH WASHER
90159-06049-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER 1
5XC-16181-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-22013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, LOCK
90215-16289-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-16326-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, PUSH 1
5XC-16356-00-00
Superseded by 1SM-16356-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93340-21008-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-080H1-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
93440-07182-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD, PUSH 2
5NL-16357-10-00
Superseded by 5NL-16357-11-00
|
$37.99 | ||
|
Unavailable |
|||
|
#22
PUSH LEVER COMP.
5XC-16381-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93317-11287-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-12224-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, SEAT
4JT-16384-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLUTCH PLATE KIT
5XC-W001G-20-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
