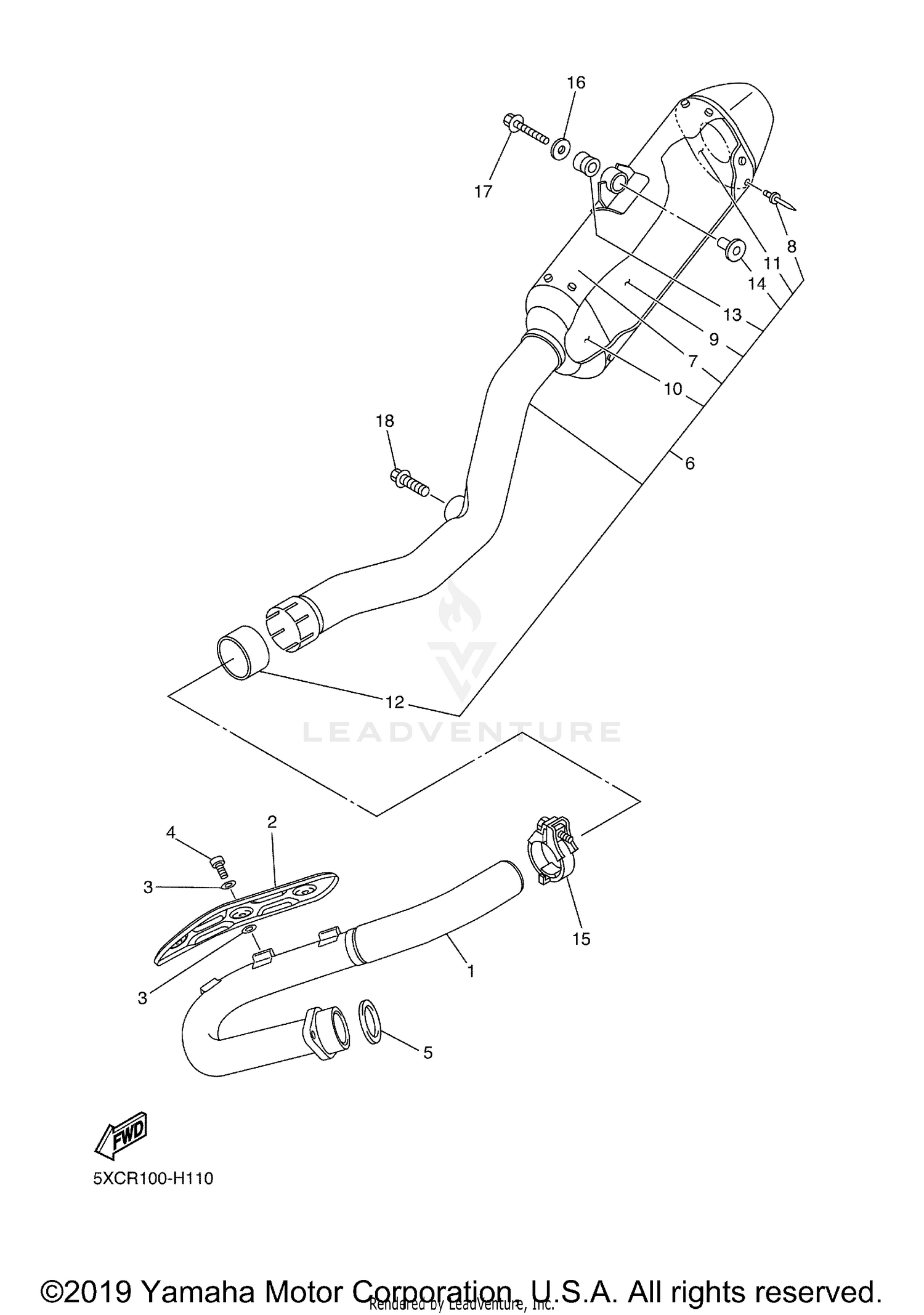

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
5XC-14611-R0-00
|
$560.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
5XC-14628-R0-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-05017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, EXHAUST PIPE
5NL-14613-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SILENCER ASSY
5XC-14750-R0-00
Superseded by 5XC-14750-R1-00
|
$1,164.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY, SILENCER
5XC-1466G-R0-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIVET, BLIND
90267-48084-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
FIBER
5XC-1469A-R0-00
|
$145.99 | ||
|
Unavailable |
|||
|
#10
FIBER
2S2-1469E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FIBER
2S2-1469F-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, MUFFLER
5XD-14714-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, MUFFLER
5BE-14747-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-08081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND, SILENCER
5BE-14788-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-08061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08137-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-08307-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
