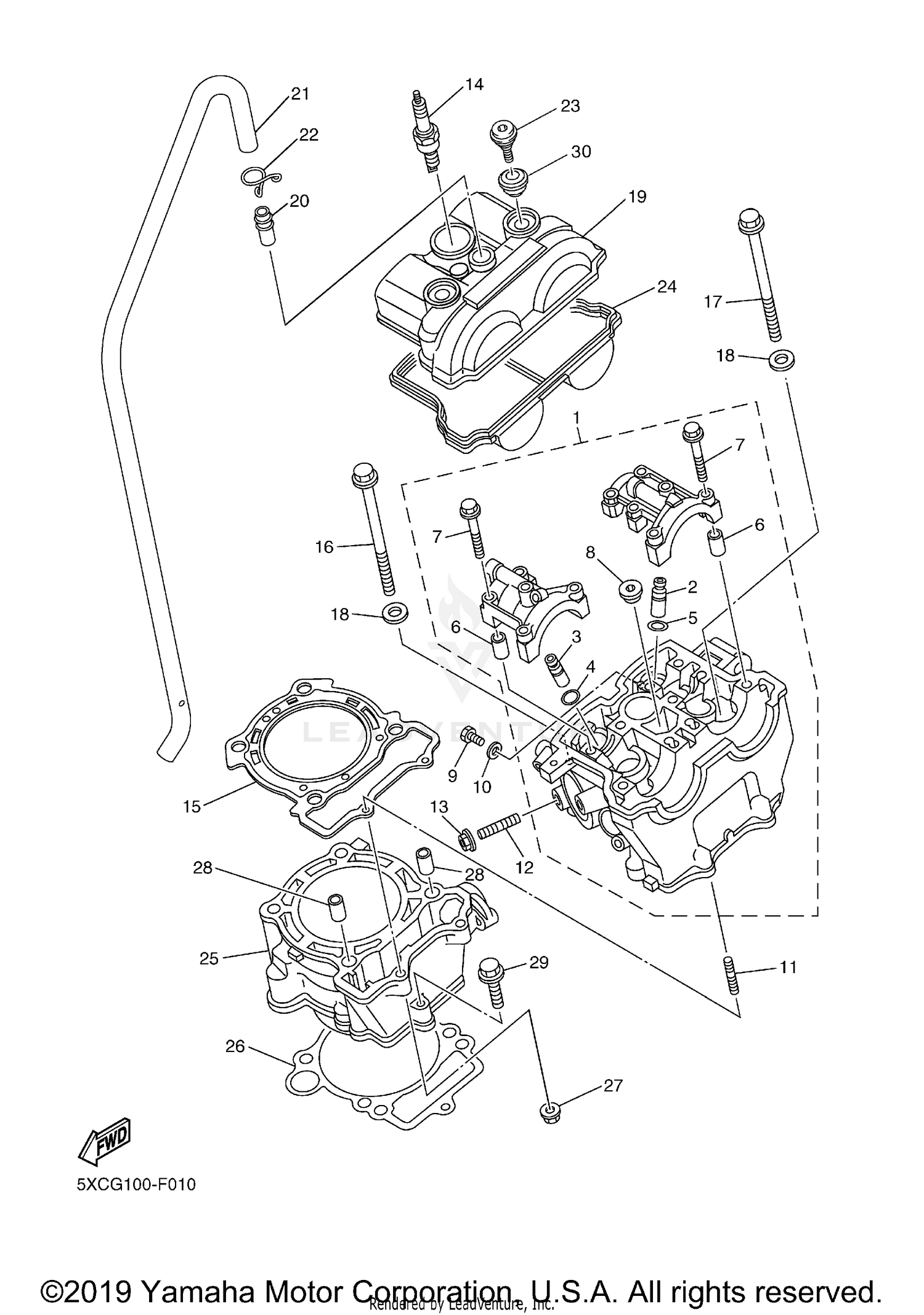

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5XC-11102-20-00
Superseded by 5XC-11102-21-00
|
$1,142.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5NL-11133-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
5NL-11134-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-10153-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-07149-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06027-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-12007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
90116-06038-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
95612-08620-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, WITH WASHER
95702-08500-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
CR9E NGK SPLUG 4PK
NGK-CR9E0-00-00
Superseded by CR9-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#14
PLUG, SPARK (NGK CR8E)
NGK-CR8E0-00-00
Superseded by CR8-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#15
GASKET, CYLINDER HEAD 1
5NL-11181-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-09004-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-09002-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-096J9-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, CYLINDER HEAD 1
5NL-11191-40-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE, BREATHER 2
371-11167-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, BREATHER 1
5XC-11166-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-140A4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, COVER HEAD
5UM-1119E-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, HEAD COVER 1
5NL-11193-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CYLINDER 1
5XC-11311-10-00
Superseded by 5XC-11311-20-00
|
$518.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, CYLINDER
5NL-11351-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, DOWEL
93612-16254-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95022-06035-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
