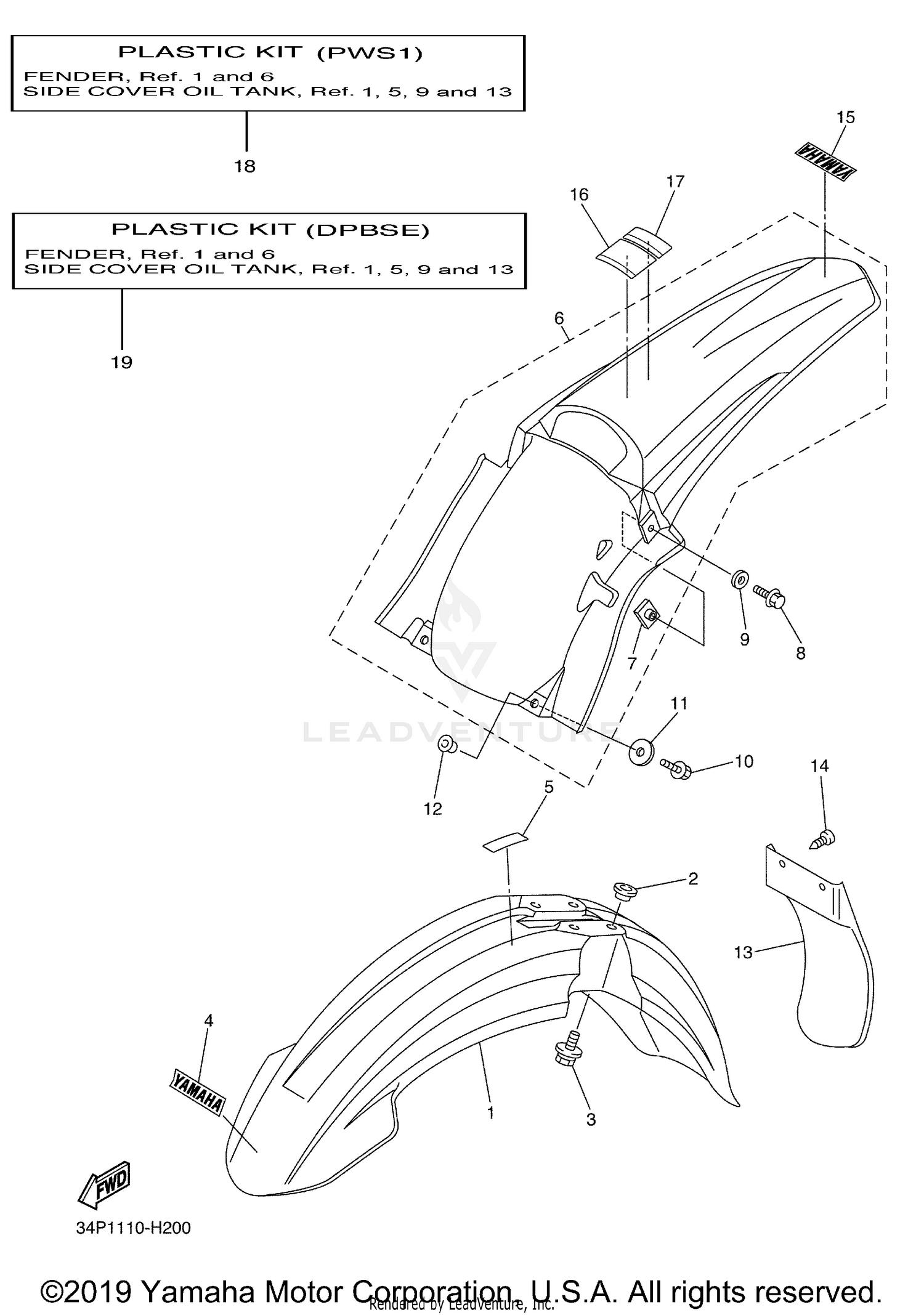

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
2S2-21511-70-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT
1C3-21511-51-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06147-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM, YAMAHA
4ES-2153E-20-00
Superseded by 4ES-2153E-21-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, CAUTION
3FB-2415E-02-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
2S2-21610-70-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
5XC-21610-90-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, REAR FENDER
5XE-21635-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06104-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-06106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-06085-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUARD, FLAP
5TA-21642-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97702-60016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
EMBLEM, YAMAHA
3WF-2153E-10-00
Superseded by 3WF-2153E-11-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
emblem yamaha
3WF-2153E-40-00
Superseded by 3WF-2153E-41-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
LABEL, CAUTION
5PA-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
LABEL 5
3XJ-2151H-A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLASTIC KIT
5XC-W003A-10-00
|
$327.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLASTIC KIT
5XC-W003A-00-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
