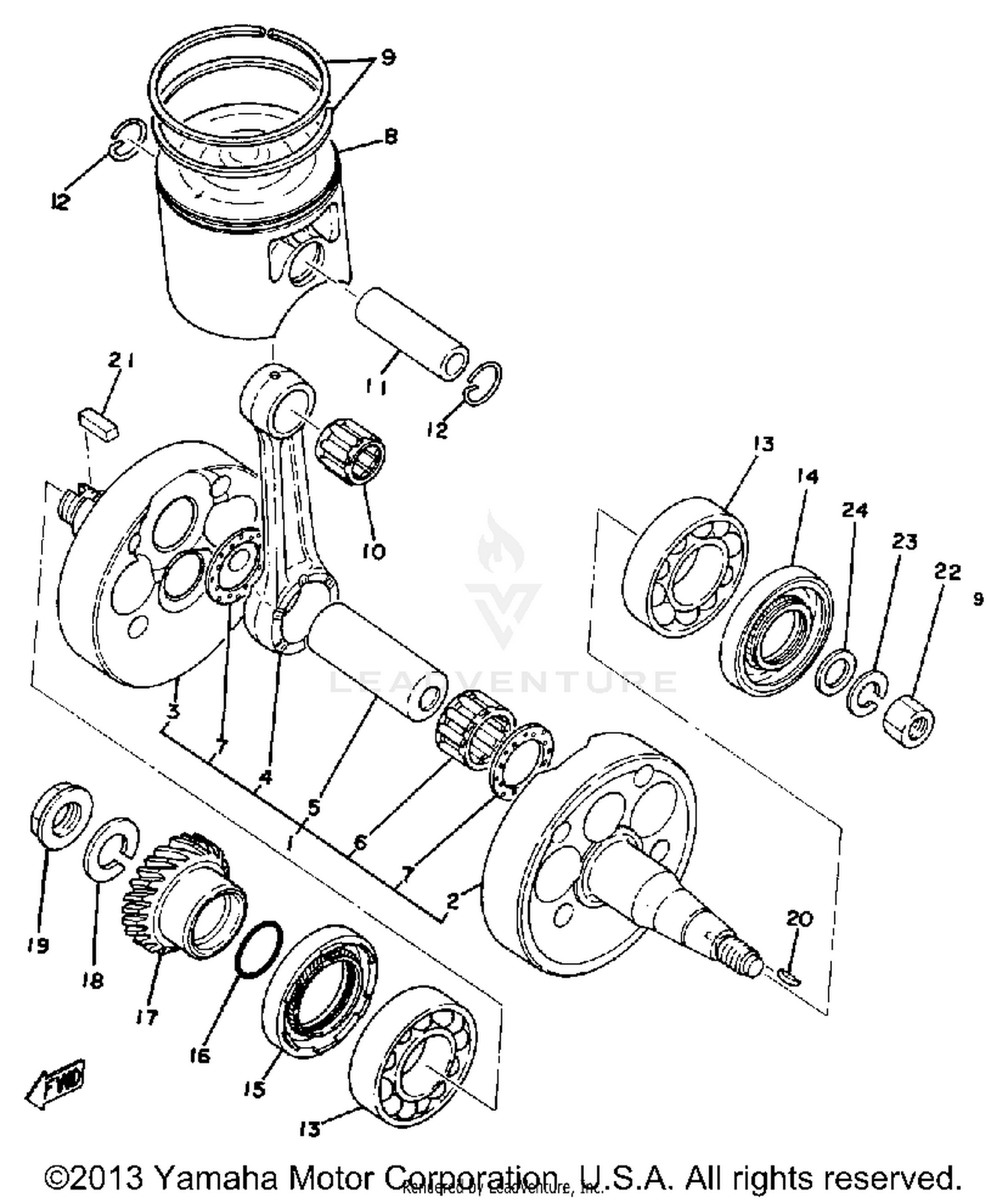

Crank-piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
2X5-11400-00-00
|
$296.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
2X5-11412-00-00
|
$192.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
2X5-11422-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#4
ROD, CONNECTING
2X5-11651-10-00
|
$51.99 | ||
|
Unavailable |
|||
|
#5
PIN, CRANK 1
2X5-11681-00-00
|
$14.62 | ||
|
Unavailable |
|||
|
#6
BEARING, CYLINDRICAL
93310-425N4-00
Superseded by 93310-425P2-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, (90209-25220)
90209-25085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON KIT 1ST
2X5-11630-10-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
2X5-11636-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00
2X5-11638-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75
2X5-11637-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25
2X5-11635-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#
PISTON STD
2X5-11631-00-96
|
$92.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 4TH
2X5-11630-40-00
|
$45.91 | ||
|
Unavailable |
|||
|
#
PISTON KIT 3RD
2X5-11630-30-00
|
$53.10 | ||
|
Unavailable |
|||
|
#9
PISTON RINGSET STD
2X5-11601-00-00
|
$57.44 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST
2X5-11601-10-00
|
$68.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH
2X5-11601-40-00
|
$57.44 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD
2X5-11601-30-00
|
$47.18 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND
2X5-11601-20-00
|
$68.99 | ||
|
Unavailable |
|||
|
#10
BEARING, CYLINDRICAL
93310-418E9-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
275-11633-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-19052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-30615-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (38W)
93103-30150-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93103-40091-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-29282-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, PRI DRIVE
2X5-16111-00-00
|
$54.44 | ||
|
Unavailable |
|||
|
#18
WASHER(N15)
92901-18100-00
Superseded by 92907-18100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-18172-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY, STRAIGHT
90282-07019-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90170-12181-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-12593-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
