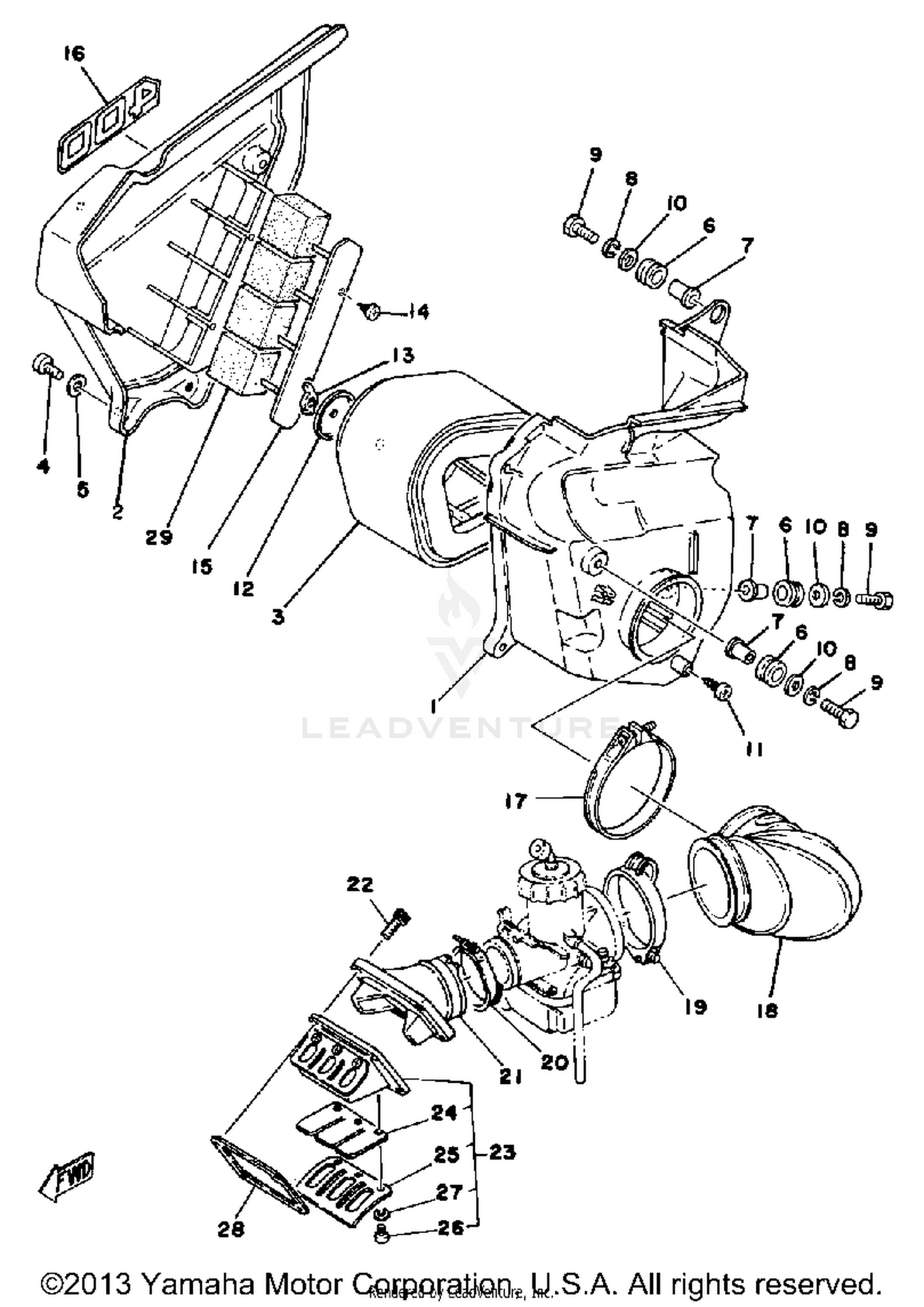

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, AIR CLEANER 1
2X4-14411-00-00
|
$45.96 | ||
|
Unavailable |
|||
|
#2
CAP, CLEANER CASE 1
2X4-14412-02-00
|
$66.99 | ||
|
Unavailable |
|||
|
#3
ELEMENT ASSEMBLY
2X4-14450-00-00
|
$28.28 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, TAPPING
90163-06001-00
|
$0.39 | ||
|
Unavailable |
|||
|
#12
PLATE, ELEMENT FTNG
2X4-14468-00-00
|
$4.58 | ||
|
Unavailable |
|||
|
#13
NUT, WING
90175-06008-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97780-40112-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE
2X4-14477-10-00
|
$4.84 | ||
|
Unavailable |
|||
|
#16
EMBLEM
2X5-21737-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#17
CLAMP, HOSE
90460-85277-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT, AIR CLNR 1
2X5-14453-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#19
CLAMP, HOSE
90460-68231-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP, HOSE
90460-51109-00
|
$12.99 | ||
|
Unavailable |
|||
|
#21
JOINT, CARBURETOR
2K7-13565-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#22
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
REED VALVE ASSEMBLY
2X5-13610-00-00
|
$135.99 | ||
|
Unavailable |
|||
|
#24
REED, VALVE
2K7-13613-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#25
STOPPER, REED VALVE
2X5-13616-00-00
|
$5.08 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, VALVE SEAT
80L-13621-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
ELEMENT, AIR CLNR 2
2X4-14461-00-00
|
$1.59 | ||
|
Unavailable |
|||
