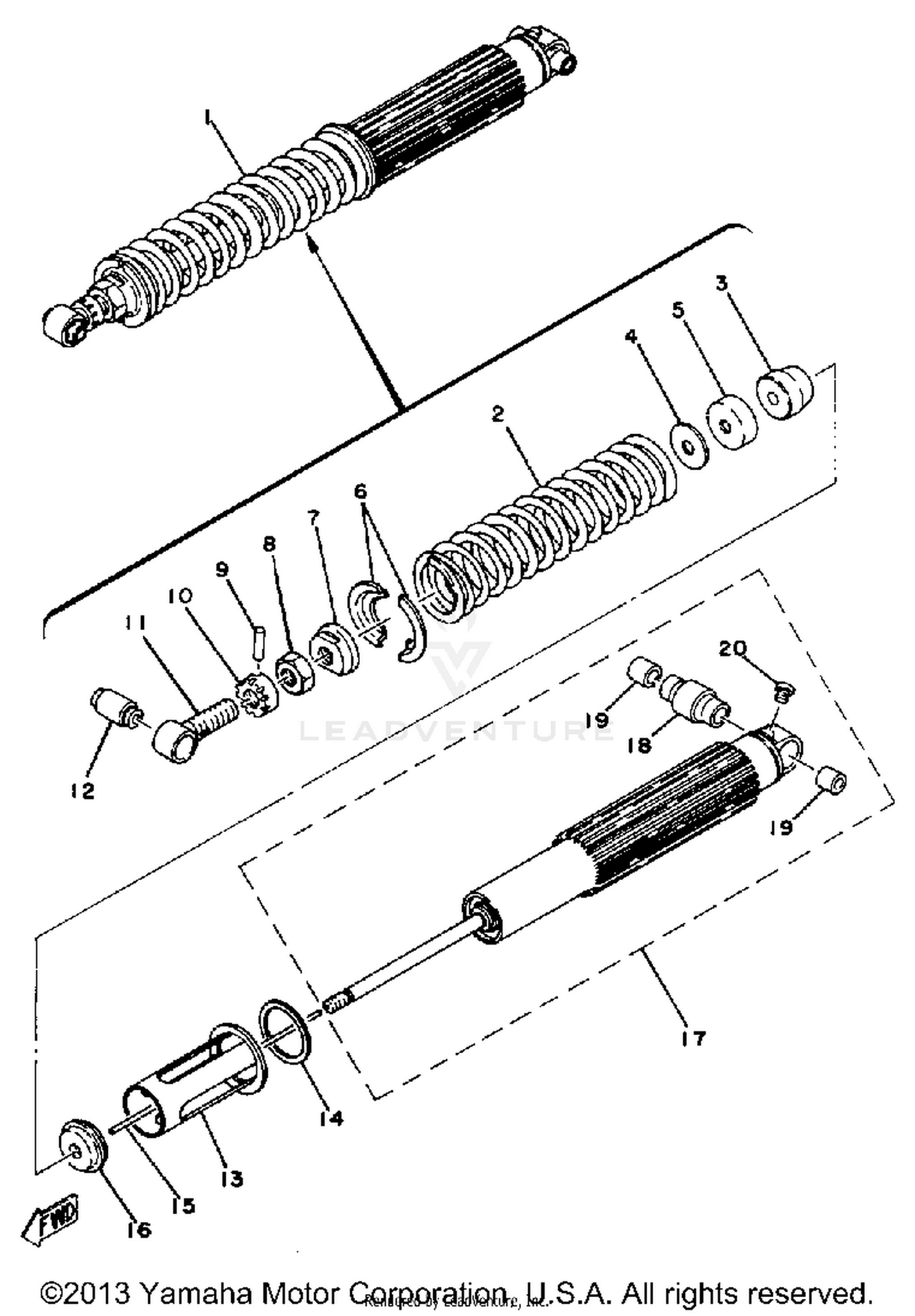

Rear Cushion Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
2X5-22210-00-00
|
$329.99 | ||
|
Unavailable |
|||
|
#2
SPRING, COMPRESSION (K=5.03 K
90501-99479-00
|
$52.22 | ||
|
Unavailable |
|||
|
#
SPRING, COMPRESSION
90501-99480-00
|
$39.14 | ||
|
Unavailable |
|||
|
#
SPRING, COMPRESSION
90501-99481-00
|
$38.25 | ||
|
Unavailable |
|||
|
#3
BUMP, STOP
2X4-22493-00-00
|
$4.00 | ||
|
Unavailable |
|||
|
#4
SUPPORT, BUMP STOP
2X4-22228-00-00
|
$2.08 | ||
|
Unavailable |
|||
|
#5
COVER
2X4-22221-00-00
|
$0.93 | ||
|
Unavailable |
|||
|
#6
GUIDE, SPRING 1
2K6-22214-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING UPPER
2K6-22213-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#8
NUT
90170-20320-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93604-26132-00
|
$2.00 | ||
|
Unavailable |
|||
|
#10
NUT, ADJUSTING
1W1-22497-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#11
BRACKET, UPPER
2X4-22219-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#12
BUSH, REAR SHOCK ABSORBER
1YW-22216-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, SPRING 2
2X4-22224-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#14
SEAT, SPRING LOWER
2X4-22223-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#15
ROD, PUSH
2X4-22489-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#16
CAP, CASE
2X4-22472-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#17
DAMPER SUB-ASSEMBLY.
2X4-22401-00-00
|
$267.99 | ||
|
Unavailable |
|||
|
#18
BUSH, SHOCK ABS LWR
1W1-22226-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#19
BUSH, SOLID
90380-12051-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
