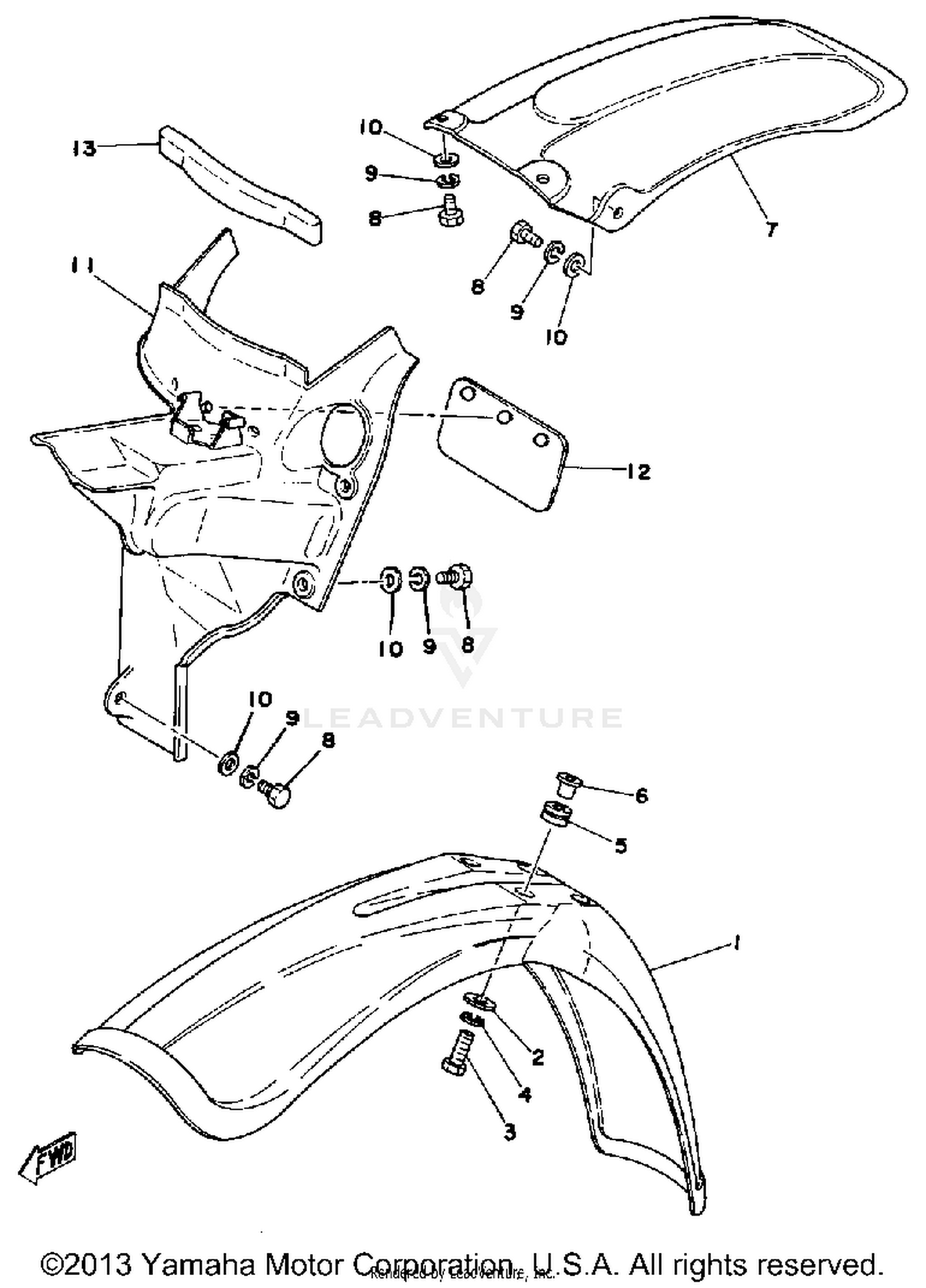

Front Fender-rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5X6-21511-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-14198-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR (1W4-21611-00)
2K8-21611-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#10
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#11
GUARD, MUD
2X5-21620-00-00
|
$36.47 | ||
|
Unavailable |
|||
|
#12
FLAP
1M1-21621-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
565-21746-00-00
|
$13.72 | ||
|
Unavailable |
|||
