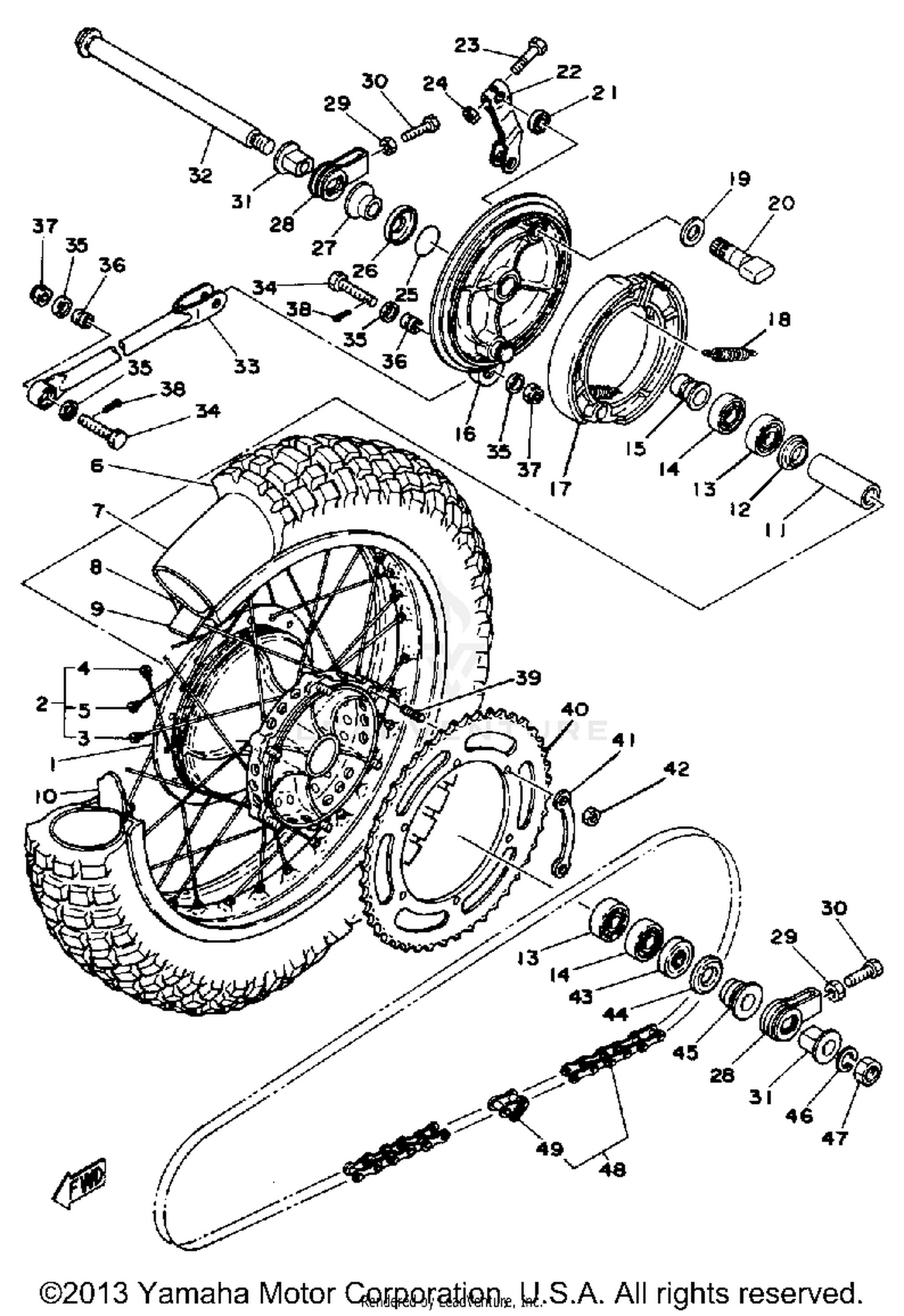

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
483-25311-13-98
|
$179.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
2X5-25304-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#3
SPOKE SET, INNER 2
2X5-25396-90-00
|
$9.48 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, INNER 1
2X5-25391-90-00
|
$10.60 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, OUTER 1
2X5-25392-90-00
|
$9.48 | ||
|
Unavailable |
|||
|
#6
150/80-18 M2A (TT) (94151-18684
94115-186A2-00
|
$191.99 | ||
|
Unavailable |
|||
|
#7
TUBE
94245-18125-00
|
$17.49 | ||
|
Unavailable |
|||
|
#8
RIM 2.50X18
94425-18218-00
|
$153.99 | ||
|
Unavailable |
|||
|
#9
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, BEAD
2X5-25394-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#11
SPACER, BEARING
483-25317-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#12
FLANGE, SPACER
483-25315-00-00
|
$4.17 | ||
|
Unavailable |
|||
|
#13
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#15
COLLAR
90387-17700-00
|
$5.44 | ||
|
Unavailable |
|||
|
#16
PLATE, BRAKE SHOE
2X4-25321-00-98
|
$73.79 | ||
|
Unavailable |
|||
|
#17
BRAKE SHOE KIT
2X4-W2536-00-00
Superseded by 3BH-W253E-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM, CAMSHAFT
148-25353-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAMSHAFT
1E6-25151-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#21
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER, CAMSHAFT
2X4-25355-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#23
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-31114-00
Superseded by 93210-31MJ5-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, PLATE
275-25327-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
COLLAR
90387-17651-00
|
$4.36 | ||
|
Unavailable |
|||
|
#28
PULLER, CHAIN 1
2K8-25388-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#29
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSH, SOLID
90381-17027-00
|
$7.99 | ||
|
Unavailable |
|||
|
#32
AXLE, WHEEL
2K8-25381-00-00
|
$68.17 | ||
|
Unavailable |
|||
|
#33
BAR, TENSION
2X4-25371-00-00
|
$33.24 | ||
|
Unavailable |
|||
|
#34
BOLT, WITH HOLE
90102-08034-00
|
$3.35 | ||
|
Unavailable |
|||
|
#35
OIL SEAL
93104-11056-00
Superseded by 93104-12003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-08699-00
|
$5.49 | ||
|
Unavailable |
|||
|
#37
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, STUD
90116-08218-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPROCKET, DRIVN 48T
431-25448-04-XX
|
$52.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 50TSPROCKET WHE
431-25450-04-XX
|
$93.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 52T
431-25452-04-XX
|
$51.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 54TSPROCKET WHE
431-25454-04-XX
|
$93.99 | ||
|
Unavailable |
|||
|
#41
WASHER
583-25412-00-00
Superseded by 2XJ-25412-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, HEXAGON
90170-08193-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#43
OIL SEAL, SD-TYPE
93102-25061-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
COVER, HUB DUST
431-25367-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#45
COLLAR
90387-17650-00
|
$8.49 | ||
|
Unavailable |
|||
|
#46
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT, HEXAGON
90170-16177-00
|
$9.99 | ||
|
Unavailable |
|||
|
#48
520 DS 108L (520DS-108L)
94585-20108-00
|
$102.99 | ||
|
Unavailable |
|||
|
#49
JOINT CHAIN
94680-11001-00
|
$8.49 | ||
|
Unavailable |
|||
