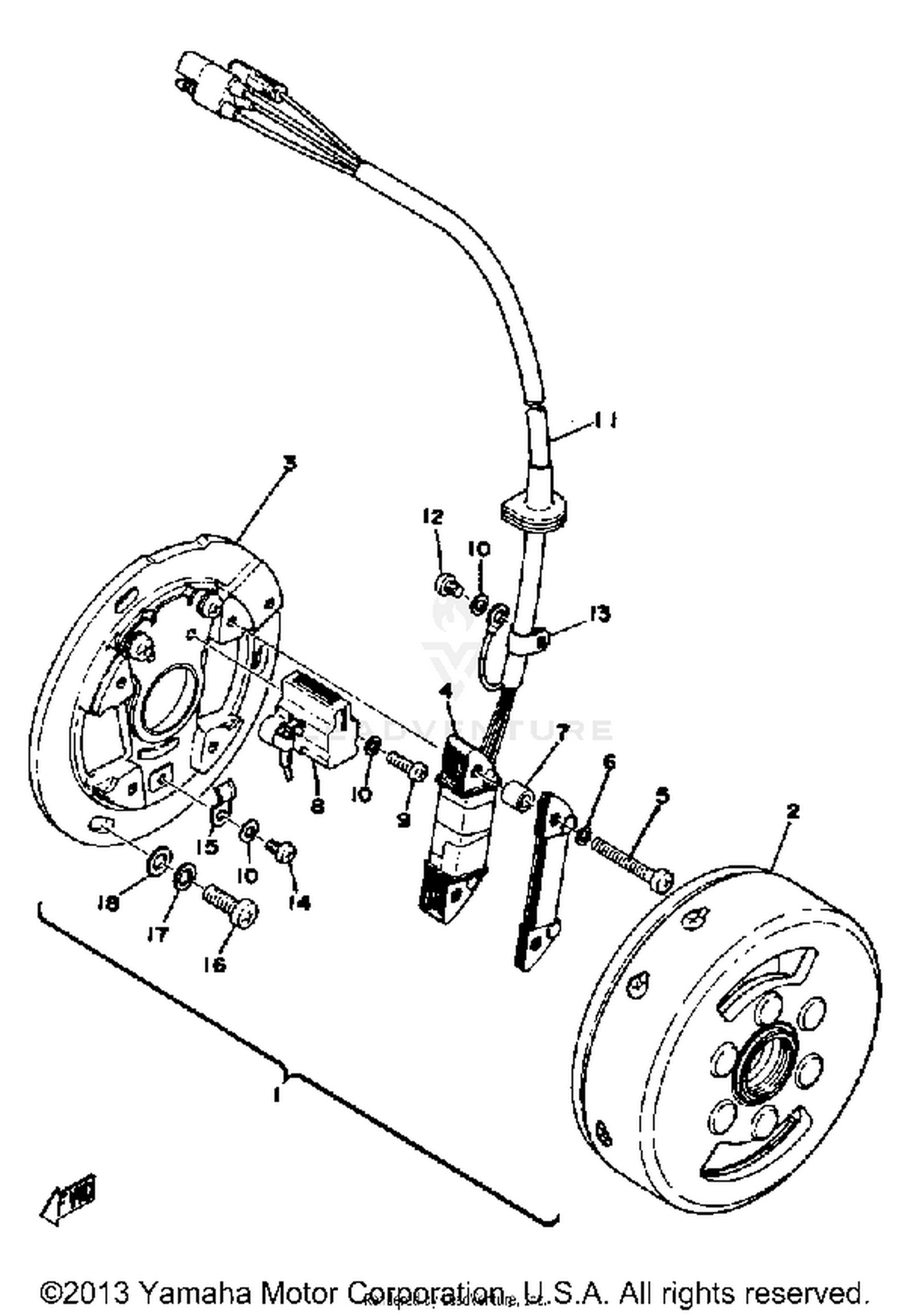

Cdi Magneto Yz400c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
510-85500-21-00
|
$273.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
445-85550-21-00
|
$222.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
445-85509-20-00
|
$46.48 | ||
|
Unavailable |
|||
|
#4
COIL SOURCE 2
445-85512-20-00
|
$150.99 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
445-85519-20-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
COIL, PULSER
445-85580-21-00
|
$142.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEAD WIRE ASSEMBLY
510-85515-20-00
|
$29.38 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
445-81328-20-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, LEAD
445-85528-20-00
|
$2.17 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
