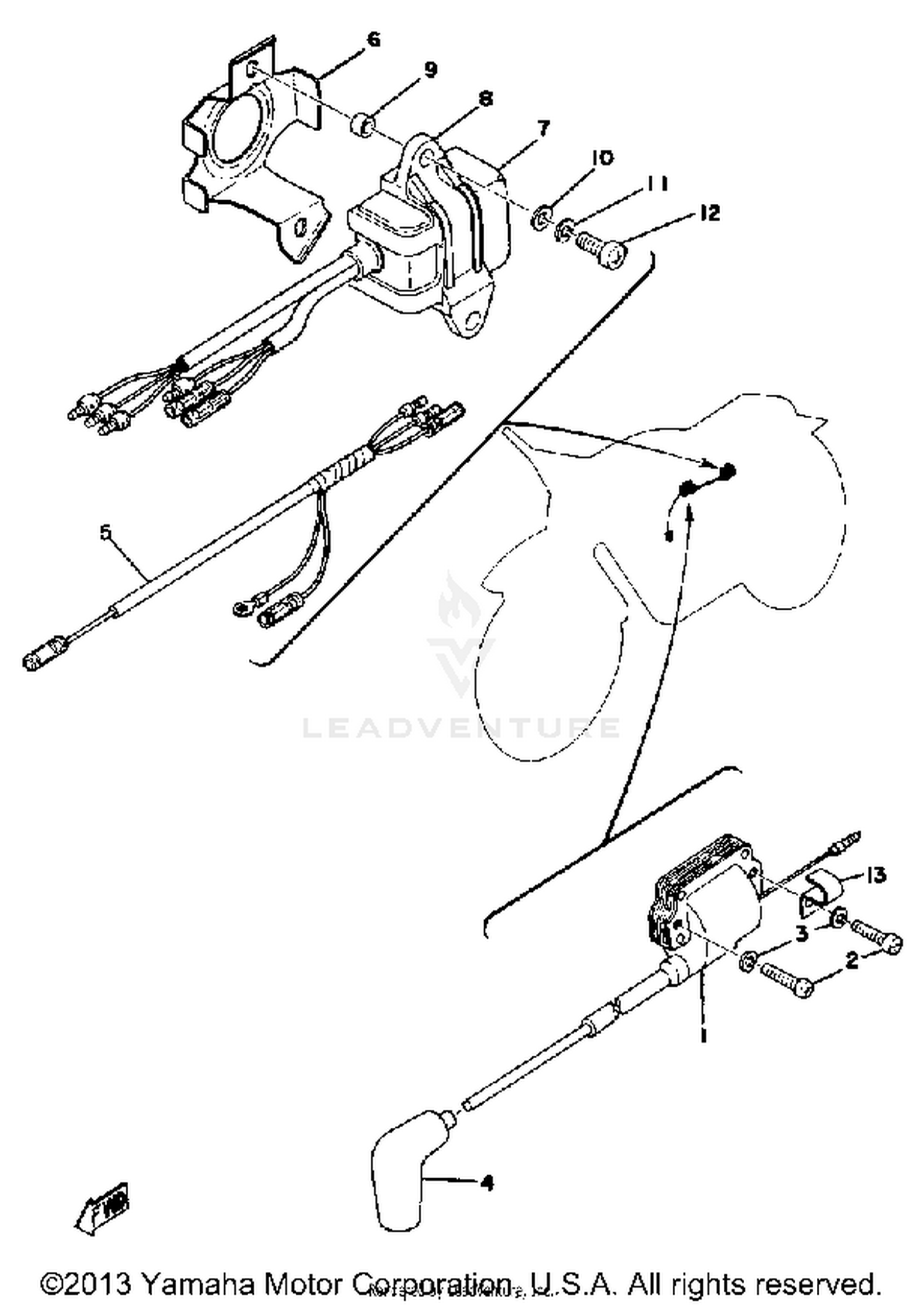

Electrical Yz400c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSEMBLY
5G4-82310-40-00
Superseded by 355-82310-40-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG CAP ASSEMBLY
294-82370-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#5
WIRE, SUB LEAD
509-85517-10-00
|
$6.04 | ||
|
Unavailable |
|||
|
#6
BRACKET
509-85542-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#7
CDI UNIT ASSEMBLY
445-85540-22-00
|
$647.99 | ||
|
Unavailable |
|||
|
#8
BAND
510-85546-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#9
COLLAR
90387-062N2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90462-05005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
