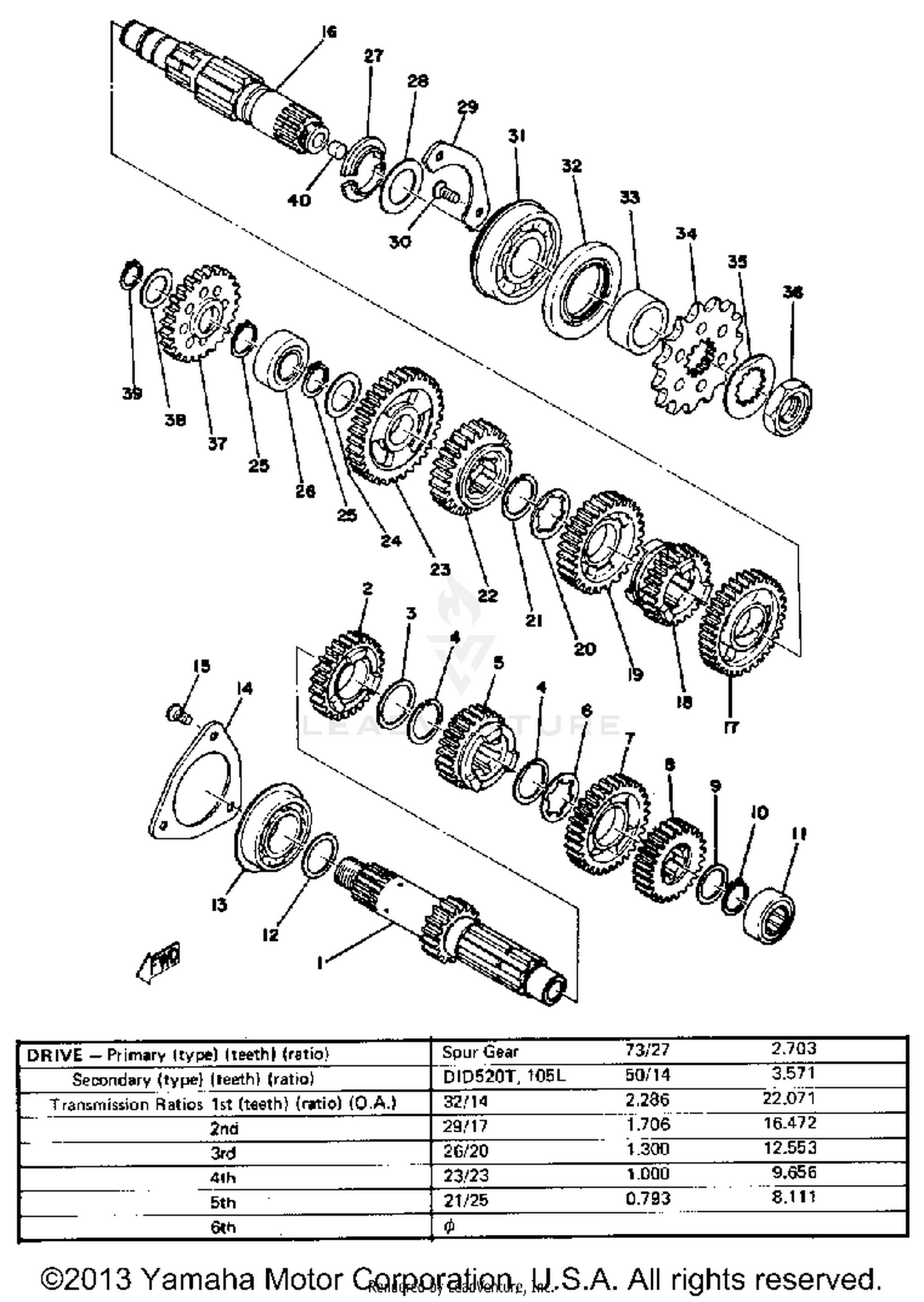

Transmission Yz400c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
510-17411-01-00
|
$87.38 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION
510-17141-00-00
|
$47.04 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
510-17131-10-00
|
$51.99 | ||
|
Unavailable |
|||
|
#6
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH PINION
510-17151-00-00
|
$41.08 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
510-17121-00-00
|
$26.68 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-19400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93311-42012-00
Superseded by 93311-42077-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM 2
168-17428-01-05
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#13
BEARING (93306-20515)
93306-20535-00
|
$20.99 | ||
|
Unavailable |
|||
|
#14
PLATE, BRNG COVER
363-15383-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, DRIVE
498-17421-01-00
|
$114.99 | ||
|
Unavailable |
|||
|
#17
GEAR, 2ND WHEEL
510-17221-00-00
|
$82.58 | ||
|
Unavailable |
|||
|
#18
GEAR, 5TH WHEEL
510-17251-00-00
|
$41.08 | ||
|
Unavailable |
|||
|
#19
GEAR, 3RD WHEEL
510-17231-00-00
|
$49.72 | ||
|
Unavailable |
|||
|
#20
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
GEAR, 4TH WHEEL
510-17241-00-00
|
$47.04 | ||
|
Unavailable |
|||
|
#23
GEAR, 1ST WHEEL
510-17211-00-00
|
$33.74 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
99009-19400-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
BEARING, CYLINDER.#13
93313-32008-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER, DRIVE AXLE
156-17429-00-00
|
$7.94 | ||
|
Unavailable |
|||
|
#28
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#
SHIM 2
168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#29
PLATE, BRNG COVER
509-15381-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#30
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
BEARING
93306-30517-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL, SD-TYPE
93102-35109-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-25193-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
SPROCKET, DRIVE (13T)
9383E-13144-00
Superseded by 9383E-13216-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE (14T)
9383E-14145-00
Superseded by 9383E-14215-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
9383E-15082-00
Superseded by 4DN-17460-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SPEC'L SHAPE
90179-18020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GEAR, KICK IDLE
498-15651-02-00
|
$55.99 | ||
|
Unavailable |
|||
|
#38
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLUG, TAPER
90336-11025-00
|
$0.94 | ||
|
Unavailable |
|||
