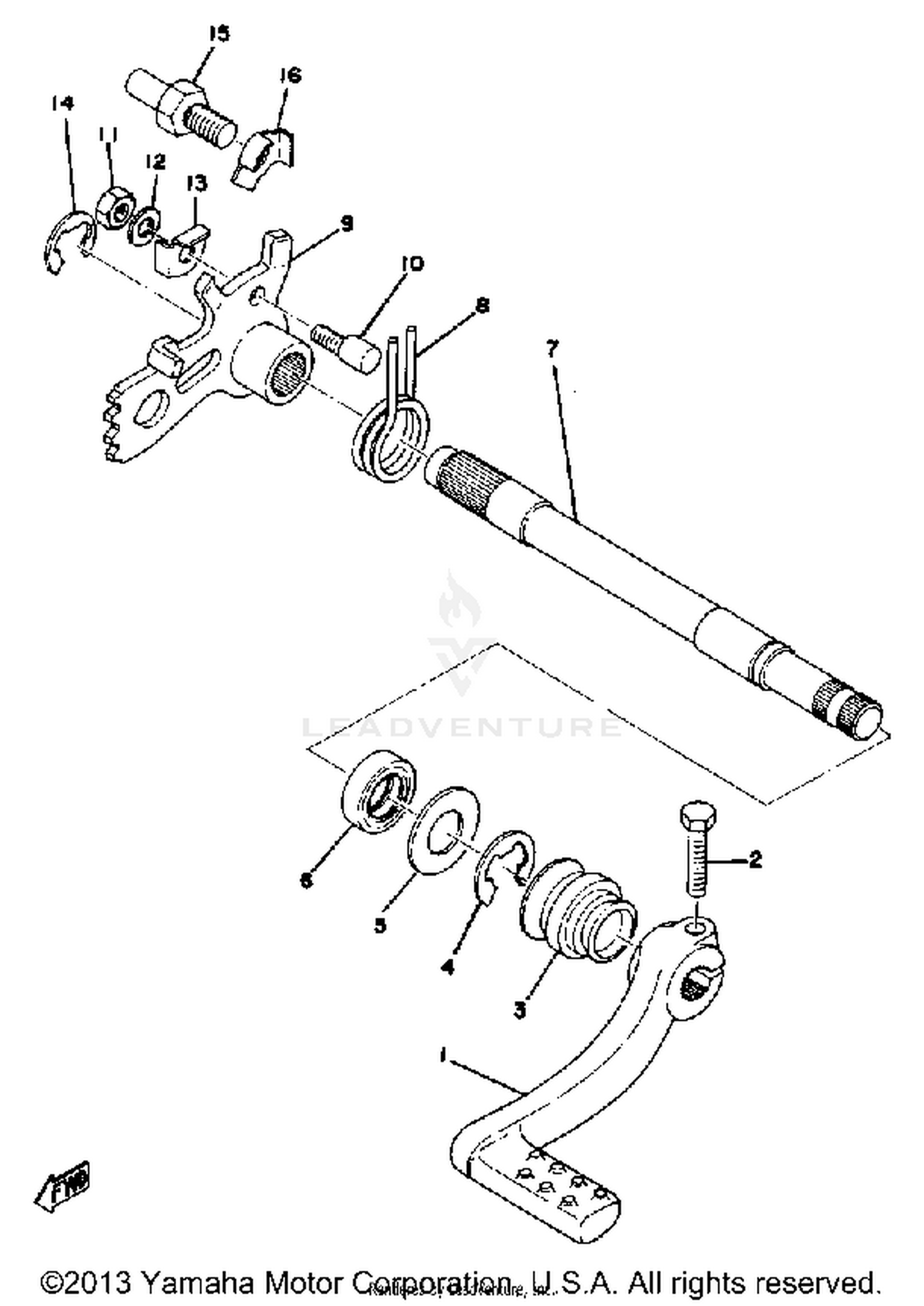

Shifter 2 Yz400c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT PEDAL ASSEMBLY (509-18111
5X4-18110-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#2
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT, SEALING
214-18131-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
CIRCLIP
99001-12600-00
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-14220-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL, SDO-TYPE
93109-14010-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, SHIFT
363-18125-00-00
|
$23.94 | ||
|
Unavailable |
|||
|
#8
SPRING, TORSION
90508-32265-00
|
$3.60 | ||
|
Unavailable |
|||
|
#9
LEVER, SHIFT 1
434-18121-00-00
|
$22.16 | ||
|
Unavailable |
|||
|
#10
SCREW, SPEC'L SHAPE
90149-06017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, LOCK
90215-06016-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, SCREW
278-18127-00-00
Superseded by 278-18127-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, LOCK
90215-08015-00
|
$4.35 | ||
|
Unavailable |
|||
