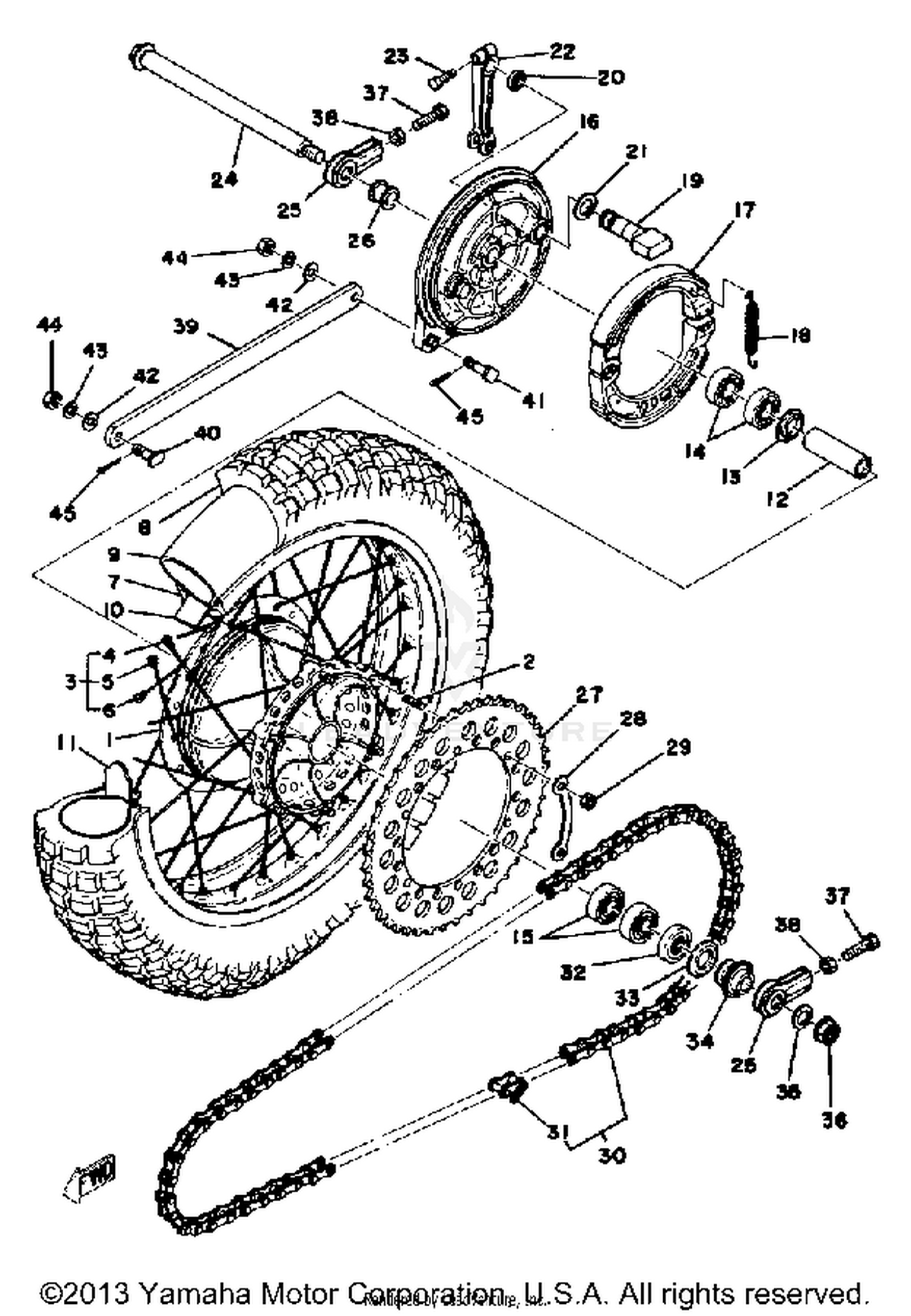

Rear Wheel Yz400c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
483-25311-13-98
|
$179.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08218-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPOKE SET, REAR (431-25304-00)
431-25304-01-00
|
$147.99 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, INNER 2
431-25396-90-00
|
$4.50 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, INNER 1
431-25391-90-00
|
$4.50 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, OUTER 1
431-25392-90-00
|
$4.05 | ||
|
Unavailable |
|||
|
#7
RIM 2.15X18 (94421-18151) (2.15
94421-18238-00
|
$307.99 | ||
|
Unavailable |
|||
|
#8
500X18 DUN K88
94150-18339-00
|
$57.62 | ||
|
Unavailable |
|||
|
#9
TUBE
94246-18040-00
|
$11.37 | ||
|
Unavailable |
|||
|
#10
BAND, RIM (2.50-18)
94340-18022-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, BEAD
363-25394-00-00
Superseded by 1T1-25394-01-00
|
$83.99 | ||
|
Unavailable |
|||
|
#12
SPACER, BEARING
483-25317-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#13
FLANGE, SPACER
483-25315-00-00
|
$4.17 | ||
|
Unavailable |
|||
|
#14
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-20333-00
Superseded by 93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#16
PLATE, BRAKE SHOE
483-25321-00-98
|
$94.18 | ||
|
Unavailable |
|||
|
#17
BRAKE SHOE SET-2PCS
431-W2536-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#18
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAMSHAFT
509-25351-00-00
|
$18.22 | ||
|
Unavailable |
|||
|
#20
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM, CAMSHAFT
148-25353-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#23
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
AXLE, WHEEL
431-25381-00-00
|
$47.04 | ||
|
Unavailable |
|||
|
#25
PULLER, CHAIN 1
431-25388-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#26
COLLAR
90387-17215-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
SPROCKET, DRIVN 48T
431-25448-04-XX
|
$52.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 50TSPROCKET WHE
431-25450-04-XX
|
$93.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 52T
431-25452-04-XX
|
$51.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 54TSPROCKET WHE
431-25454-04-XX
|
$93.99 | ||
|
Unavailable |
|||
|
#28
WASHER
509-25412-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#29
NUT, HEXAGON
90170-08158-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
520 DS 106L
94585-20106-00
|
$47.04 | ||
|
Unavailable |
|||
|
#31
JOINT CHAIN
94680-11001-00
|
$8.49 | ||
|
Unavailable |
|||
|
#32
OIL SEAL, SD-TYPE
93102-25061-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, HUB DUST
431-25367-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#34
COLLAR
90387-17555-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, HEXAGON
90170-16177-00
|
$9.99 | ||
|
Unavailable |
|||
|
#37
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#39
BAR, TENSION
509-25371-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#40
BOLT
90109-08378-00
|
$2.20 | ||
|
Unavailable |
|||
|
#41
BOLT
90109-08176-00
|
$4.54 | ||
|
Unavailable |
|||
|
#42
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#45
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
