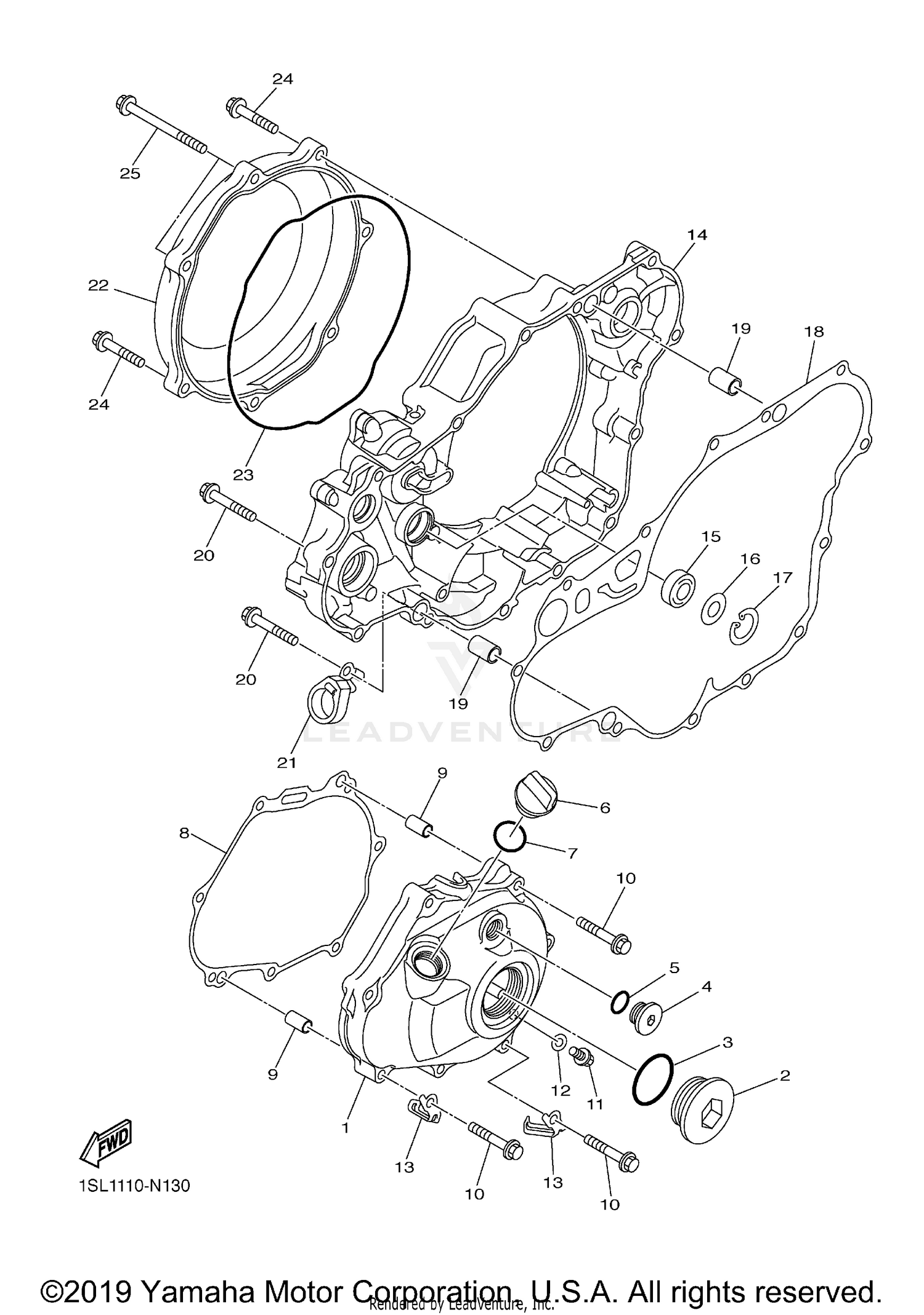

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
1SL-15411-00-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, STRAIGHT SCREW
90340-36002-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-357A3-00
Superseded by 93210-35804-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-14011-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, OIL
3Y1-15363-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, CRANKCASE COVER 1
1SL-15451-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95022-06030-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-08062-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CRANKCASE 3
1SL-15431-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93101-14164-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE (T=1.0)
90201-15701-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
99009-22500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, CRANKCASE COVER 3
1SL-15462-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL
99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-06030-00
|
$3.50 | ||
|
Unavailable |
|||
|
#21
HOLDER
1SL-15378-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, 1
33D-15415-10-00
|
$286.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Gasket
33D-15453-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95022-06025-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95022-06070-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET KIT 2
1SL-W0002-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
