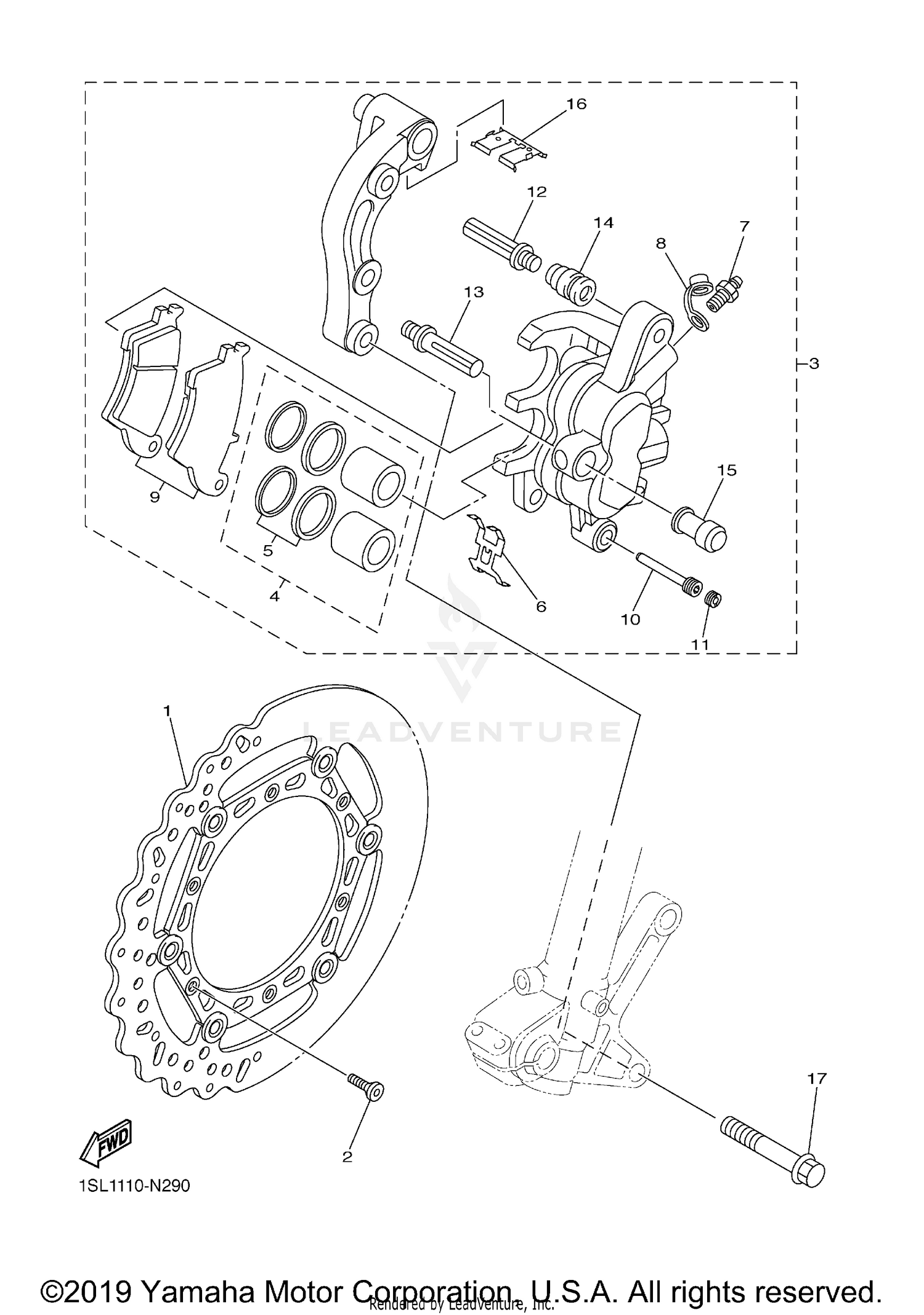

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSY
5XC-2581T-G0-00
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, COUNTERSUNK
90151-06051-00
Superseded by 90151-06079-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
5XC-2580T-G0-00
|
$450.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
5XC-W0057-00-00
Superseded by 5XC-25802-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
5KM-W0047-10-00
Superseded by 5KM-25803-10-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
5DH-25919-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
1UY-25824-51-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLEED SCREW KIT
1UY-25825-51-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
BRAKE PAD KIT
5XC-W0045-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, PAD
5DH-25933-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG
5DH-25916-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
3SP-25926-51-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, SLIDE
3SP-25914-51-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT, CALIPER
3JD-25917-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT 2
1UY-25937-51-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RETAINER, CALIPER
5XC-25849-G0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08137-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
