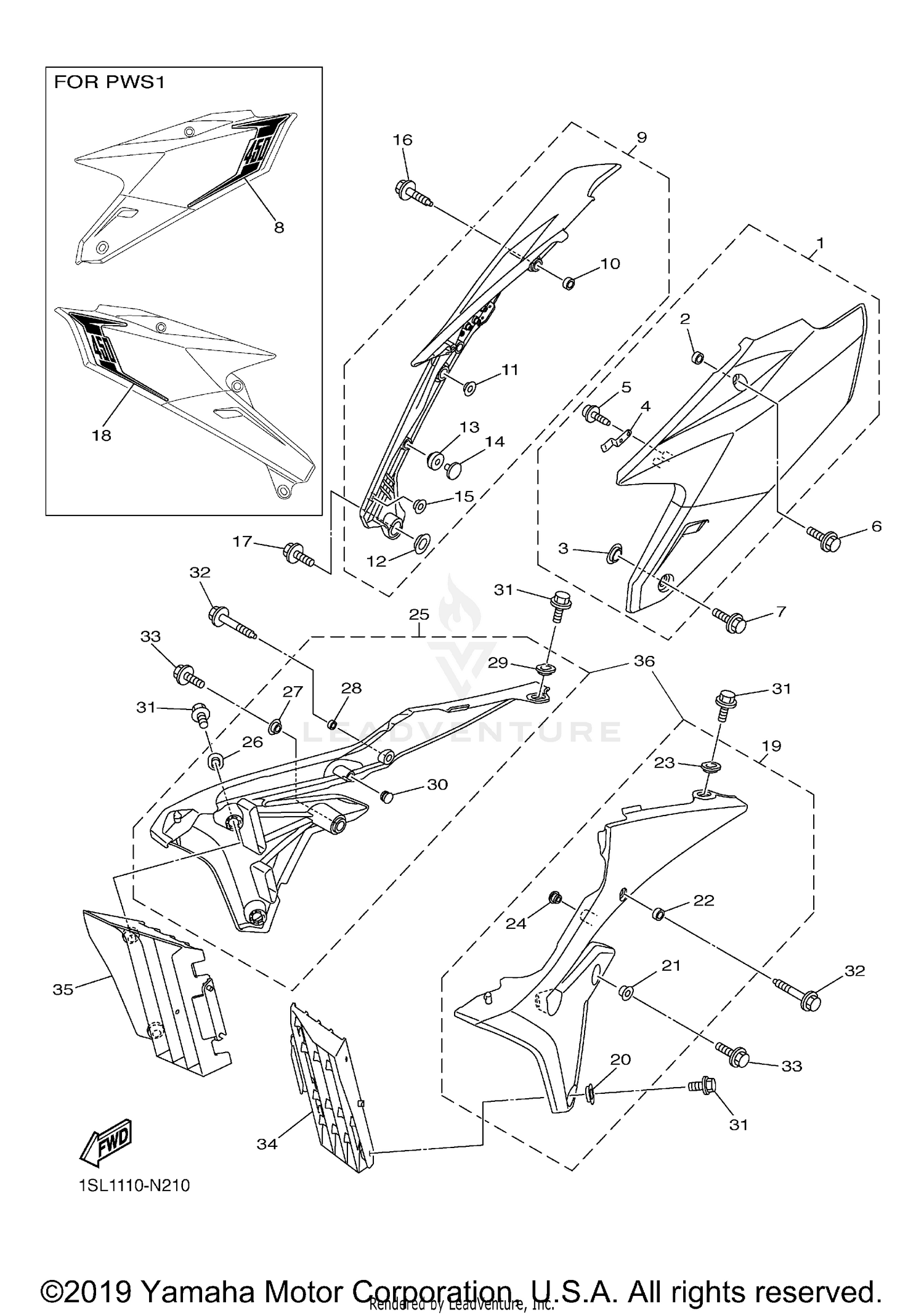

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SIDE COVER ASSY 1
1SL-21710-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-08057-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
5TA-21749-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOOK
1SL-2176M-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97702-40012-00
Superseded by 97707-40012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-08230-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRAPHIC 1
1SL-2173E-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SIDE COVER ASSY 2
1SL-21720-00-00
Superseded by 1SL-21720-10-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-08057-00
|
$8.49 | ||
|
Unavailable |
|||
|
#11
COLLAR
5BE-21749-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
5TA-21749-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#13
GROMMET
1SL-21719-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
1DX-21746-00-00
Superseded by 1DX-21746-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-06M31-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-08230-00
|
$4.05 | ||
|
Unavailable |
|||
|
#17
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Unavailable |
|||
|
#18
GRAPHIC 2
1SL-2173F-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SIDE COVER ASSY 3 (W/GRAPHIC)
1SL-217R0-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SIDE COVER ASSY 3 (W/GRAPHIC)
1SL-217R0-10-00
|
$231.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SIDE COVER ASSY 3 (W/O GRAPHIC)
1SL-21730-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
17D-21749-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-11009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
1SL-21748-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SIDE COVER ASSY 4 (W/GRAPHIC)
1SL-217S0-10-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SIDE COVER ASSY 4 (W/GRAPHIC)
1SL-217S0-00-00
|
$217.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SIDE COVER ASSY 4 (WO/GRAPHIC)
1SL-21740-00-00
Superseded by 1SL-21740-01-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
17D-21749-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#27
COLLAR
90387-11009-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
COLLAR
1SL-21748-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#30
GROMMET
90480-10068-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
90105-06064-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
90105-06179-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
90105-06203-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#34
PANEL 1
1SL-2172A-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PANEL 2
1SL-2172F-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SIDE COVER KIT
1SL-W003D-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
