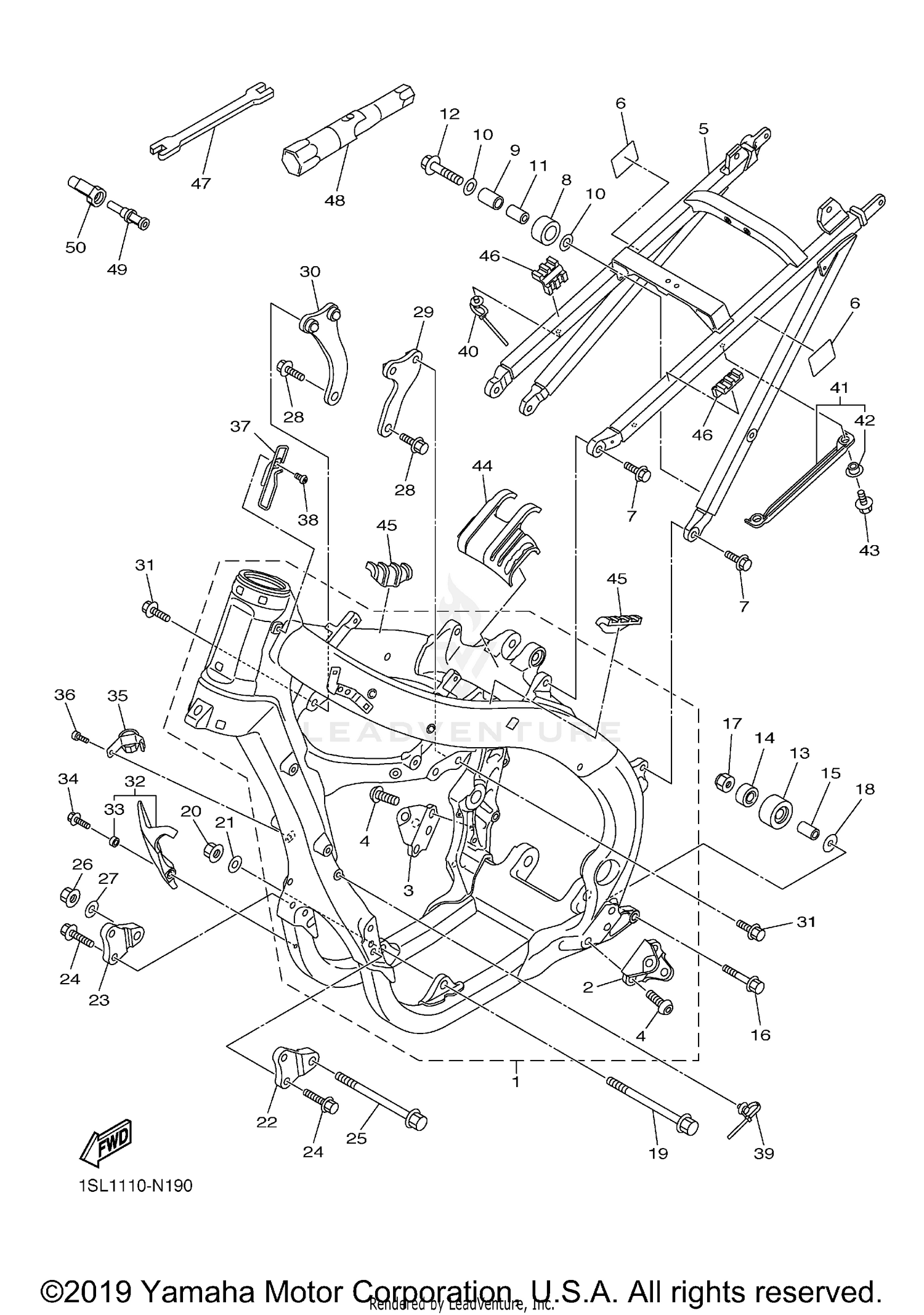

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME SET
1SL-21101-00-00
Superseded by 99999-04265-00
|
$1,686.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FOOTREST
17D-21447-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FOOTREST
17D-21448-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-10031-00
Superseded by 90149-10033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#5
REAR FRAME COMP.
1SL-21190-00-00
Superseded by 1SL-21190-10-00
|
$471.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR
33D-23472-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-08230-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-08041-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
TENSIONER
3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93300-60839-00
Superseded by 93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-08232-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
90185-08009-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08043-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-10176-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, FRONT LOWER 1
1SL-21417-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, FRONT LOWER 2
1SL-21418-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-08143-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-10035-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90201-10025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
90105-10189-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, REAR UPPER 1
1SL-21425-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET, REAR UPPER 2
1SL-21426-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-08143-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
PROTECTOR, ENGINE
1SL-21471-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-06106-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
90105-06203-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP, WIRE HARNESS 1
1SL-21335-00-00
Superseded by 1SL-21335-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
91312-05008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOLDER, CLUTCH CABLE
1SL-21163-00-00
Superseded by 1SL-21163-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, BUTTON HEAD
92012-06010-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-31002-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90464-31002-00
|
$4.55 | ||
|
Unavailable |
|||
|
#41
COVER, SIDE 5
1SL-2171E-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR
90387-065T2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#44
DAMPER, LOCATING 1
1SL-24181-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
DAMPER, LOCATING 2
33D-24182-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
DAMPER, LOCATING 3
33D-24183-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
WRENCH, HEXAGON
5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOX, SPARK PLUG
5TA-2814F-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
CAP
18P-2467E-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
CASE, CAP
18P-2464V-00-00
Superseded by 18P-2464V-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
