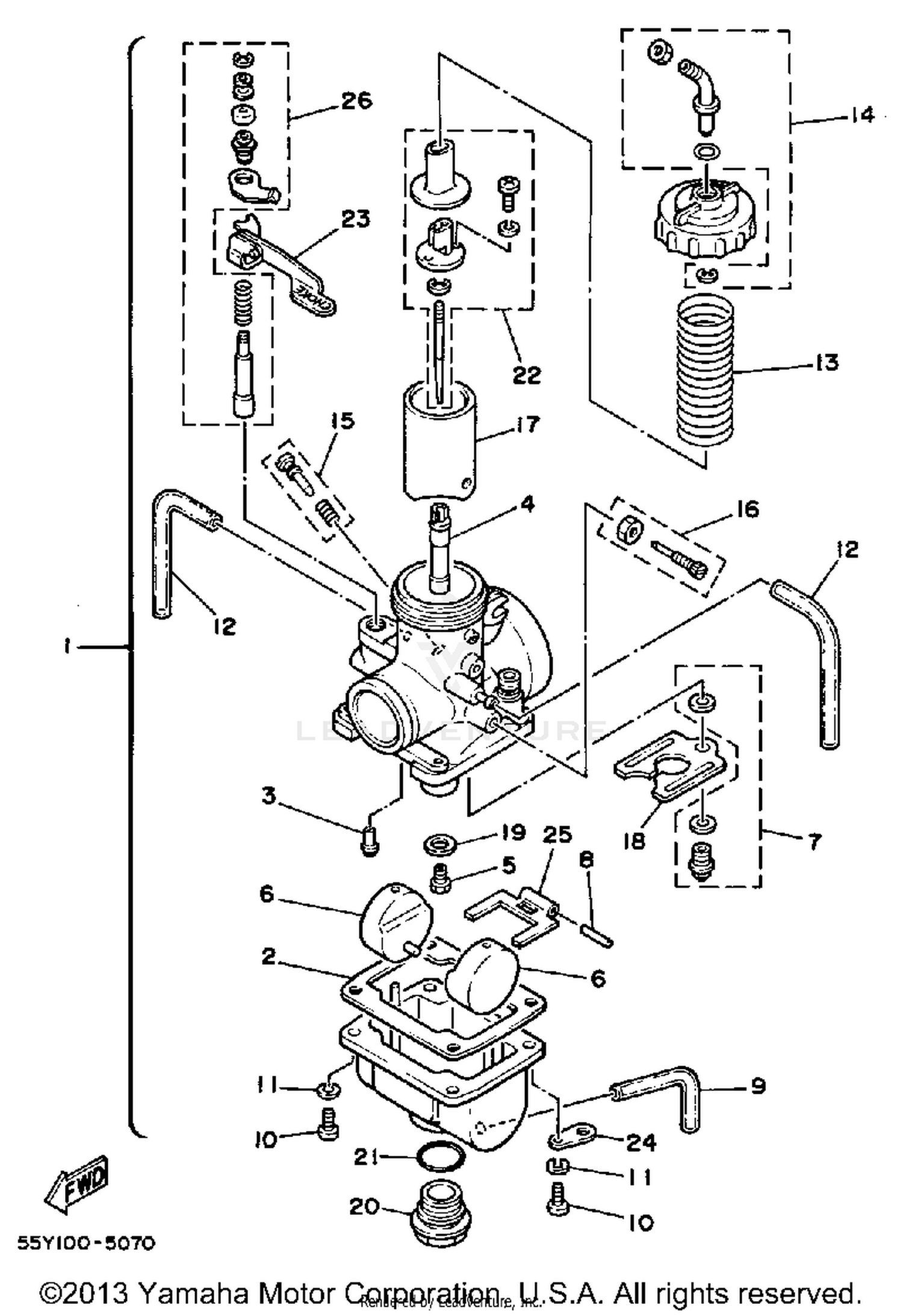

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
55Y-14101-10-00
|
$337.99 | ||
|
Unavailable |
|||
|
#2
GASKET, FLOAT CHAMBER
483-14184-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, PILOT (#60)
193-14142-60-00
|
$5.00 | ||
|
Unavailable |
|||
|
#
JET, PILOT (65)
193-14142-65-00
|
$5.49 | ||
|
Unavailable |
|||
|
#
JET, PILOT #55 (# 55)
193-14142-55-00
|
$4.55 | ||
|
Unavailable |
|||
|
#4
NOZZLE, MAIN
239-14141-52-00
|
$17.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
239-14141-54-00
|
$22.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
239-14141-56-00
|
$9.28 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#260)
137-14143-52-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#250)
137-14143-50-A1
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#240)
137-14143-48-A1
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
310-14185-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#7
NEEDLE VALVE SET (#3.3)
24X-14107-33-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, FLOAT
537-14186-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE
2J2-14196-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, THROTTLE VALVE
431-14131-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#14
CBLE AJST SCRW SETSCREW SET
24X-14106-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#15
AIR SCREW SET
23X-14104-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
THROTTLE SCREW SET
24X-14103-00-00
Superseded by 40T-14103-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
VALVE, THROTTLE 1
3R6-14112-20-00
|
$85.85 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
3R6-14112-25-00
|
$75.66 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE
3R6-14112-30-00
|
$43.64 | ||
|
Unavailable |
|||
|
#18
PLATE
483-14146-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#19
WASHER, MAIN JET
55Y-14153-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#20
PLUG, SCREW
2K6-14115-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#21
O-RING
2K6-14147-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NEEDLE SET
24X-1490J-00-00
|
$11.20 | ||
|
Unavailable |
|||
|
#23
LEVER, STARTER 1
1W1-14175-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#24
PLATE
313-14146-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#25
ARM, FLOAT
310-14187-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#26
STARTER SET
43G-1410A-00-00
|
$50.99 | ||
|
Unavailable |
|||
