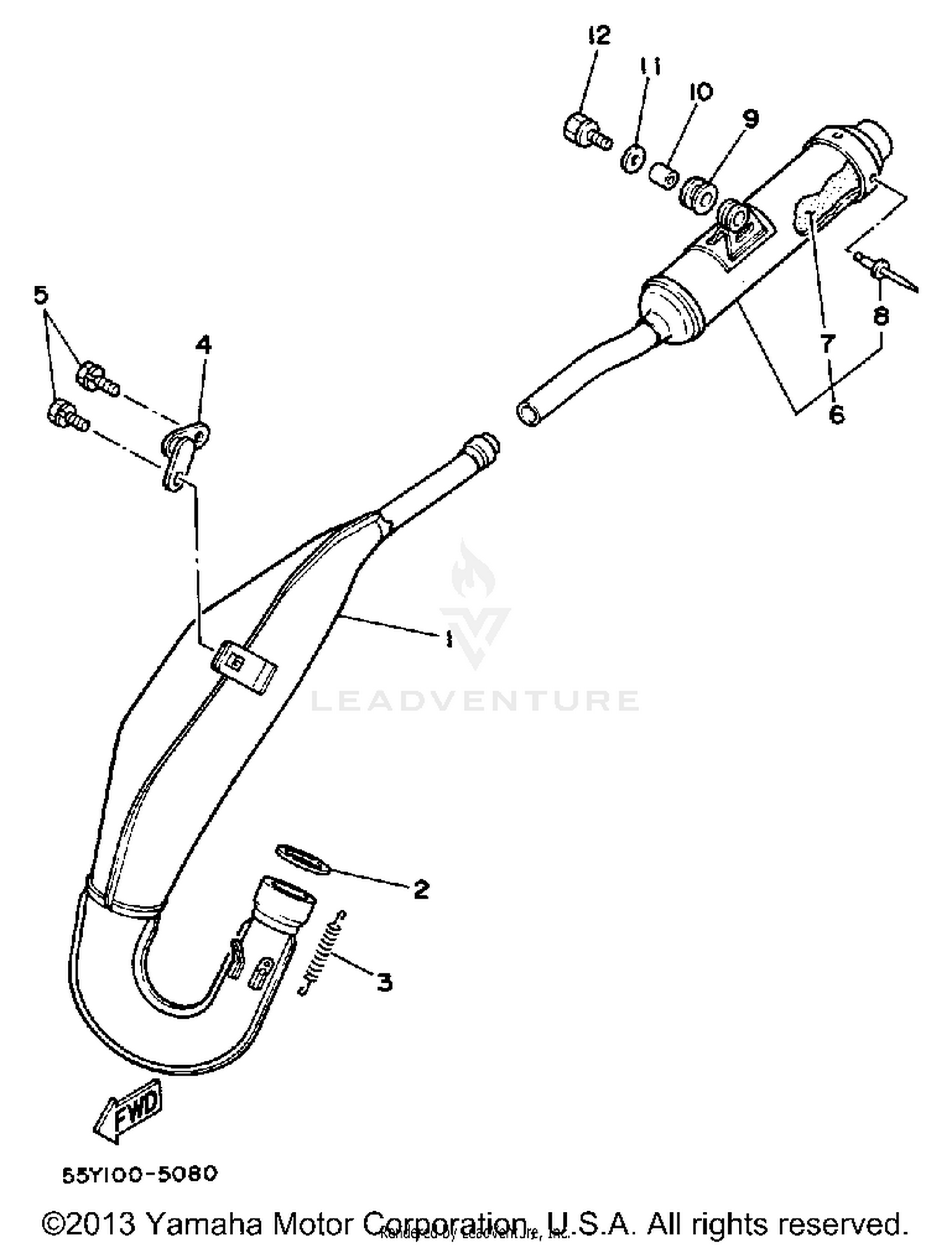

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
55Y-14610-00-00
|
$314.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
3R3-14613-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TENSION
90507-20030-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, MUFFLER 1
24X-14771-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#5
BOLT,W/WASHER
97501-06116-00
|
|||
|
Unavailable |
|||
|
#6
SILENCER, EXHAUST
39W-14753-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#7
FIBER
39W-1469A-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#8
RIVET, BLIND
90267-40115-00
|
$2.99 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-22269-00
|
$8.99 | ||
|
Unavailable |
|||
|
#10
COLLAR
90387-081A3-00
|
$5.99 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-085E6-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90109-08512-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
