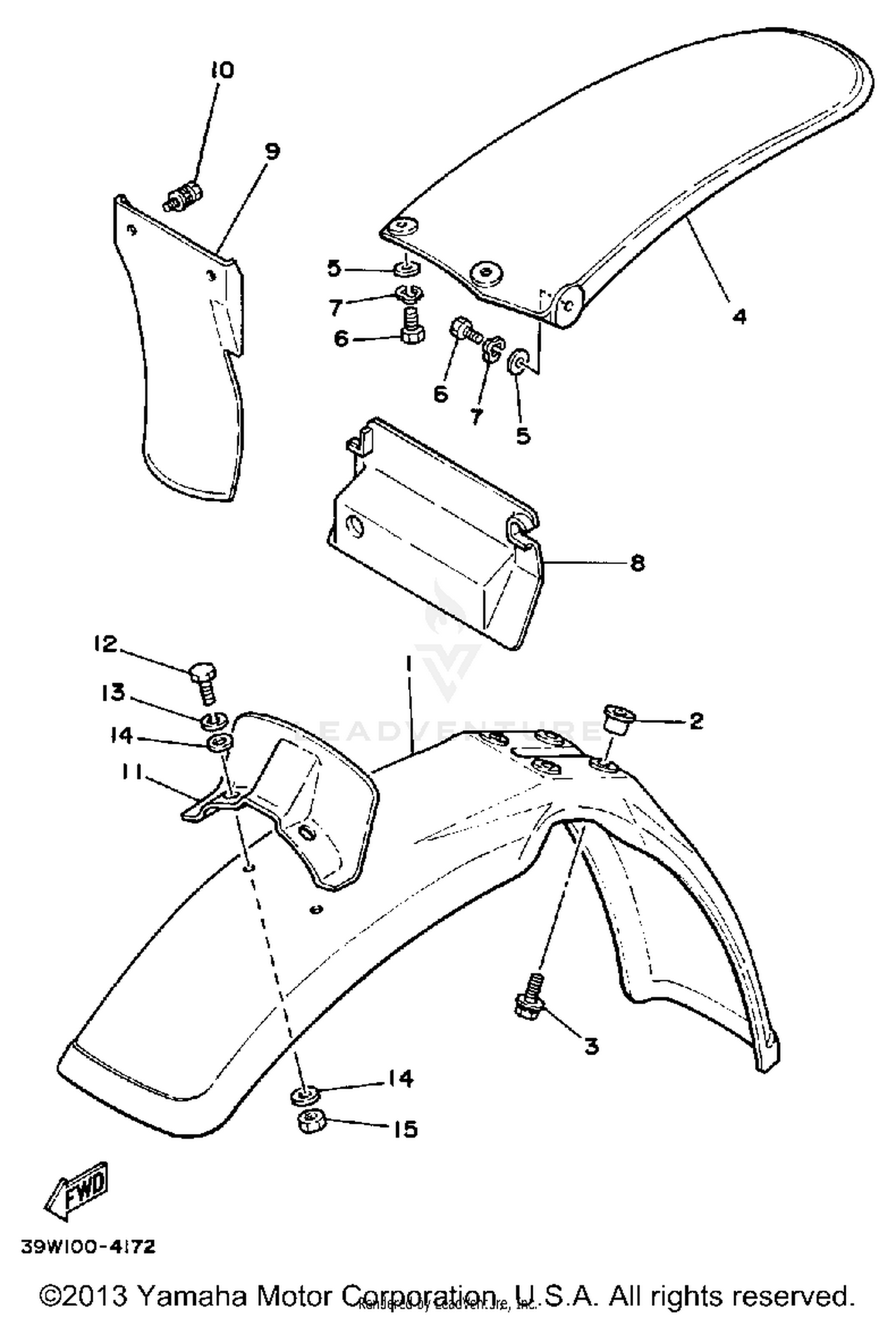

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5X6-21511-11-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06063-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, REAR
39W-21611-10-00
|
$33.99 | ||
|
Unavailable |
|||
|
#5
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,WAVE
92901-06700-00
Superseded by 92907-06700-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUARD, MUD
39W-21629-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#9
GUARD, FLAP
39W-21642-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#10
BOLT, WITH WASHER
90119-06042-00
Superseded by 90119-06117-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE 1
4V2-21543-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#12
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
