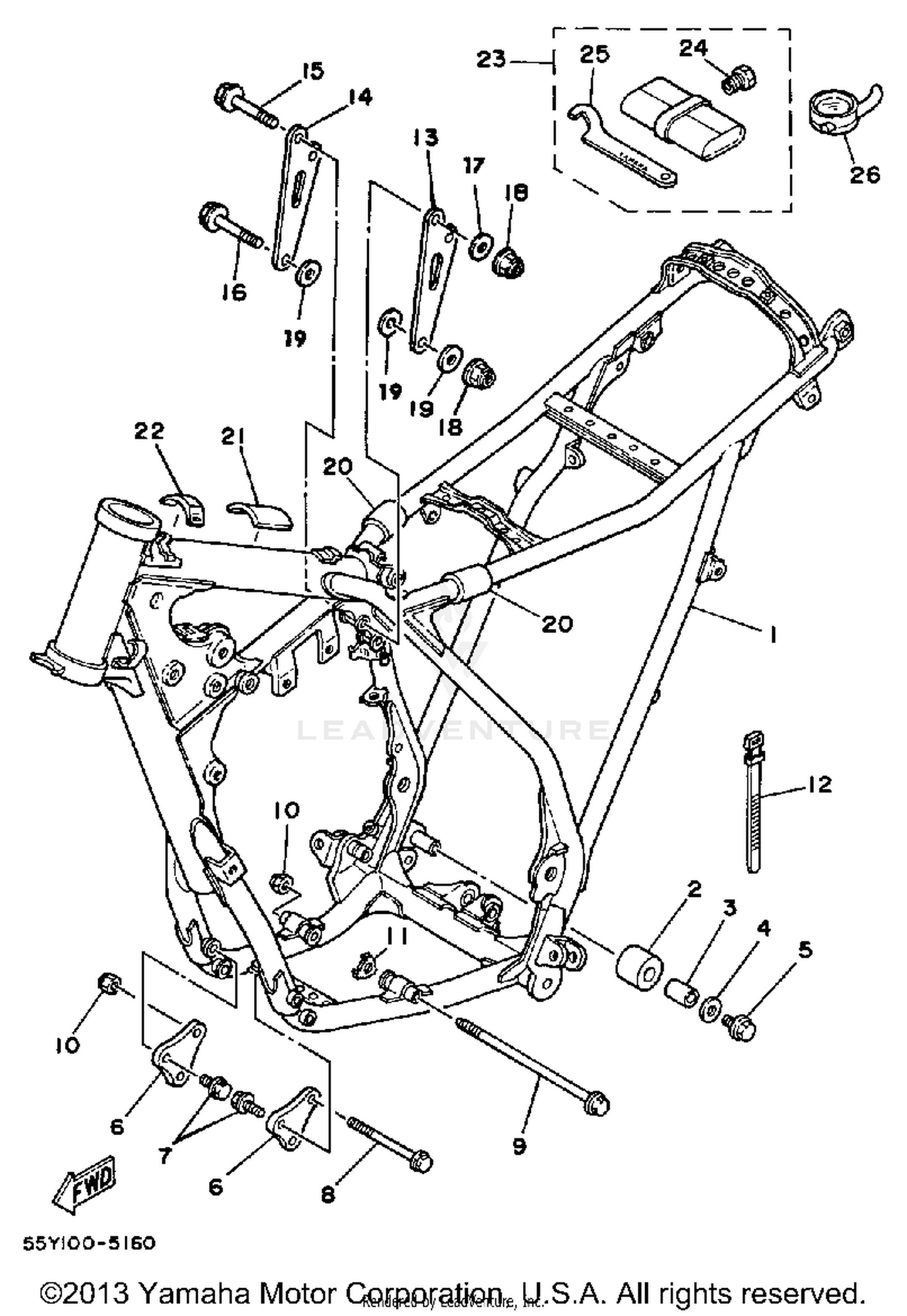

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
55Y-21110-00-FH
|
$398.99 | ||
|
Unavailable |
|||
|
#2
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, ENGINE 2
39W-21419-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95811-08040-00
Superseded by 95817-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95811-08095-00
Superseded by 95817-08095-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WASHER BASED
90105-08326-00
|
$3.40 | ||
|
Unavailable |
|||
|
#10
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, CLAW
90214-09019-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, REAR UPR 1
55Y-21425-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#14
BRACKET, REAR UPR 2
55Y-21426-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95811-08065-00
Superseded by 95814-08065-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-08022-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-085E6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, LOCATING 2
3G2-24182-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#21
DAMPER, LOCATING 2
583-24182-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, LOCATING 4
5X5-24184-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#23
TOOL KIT
39W-28100-01-00
|
$16.96 | ||
|
Unavailable |
|||
|
#24
PULLER, ROTOR
2K7-85555-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPANNER, SPECIAL
10V-28135-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#26
GAUGE, AIR
2X4-2811A-01-00
|
$83.99 | ||
|
Unavailable |
|||
