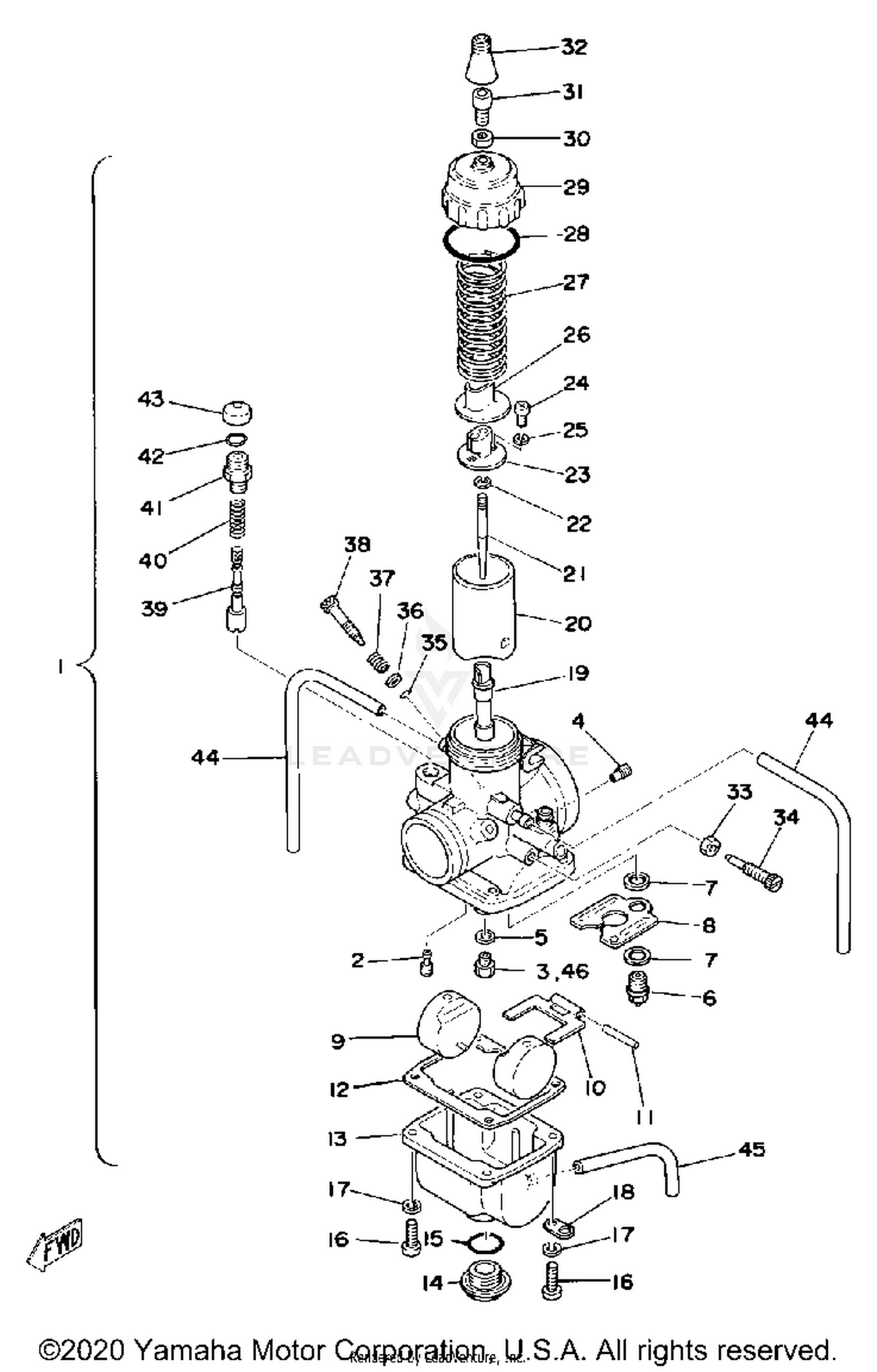

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
1L8-14101-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#2
JET, PILOT #60 (60)
193-14142-60-00
|
$5.00 | ||
|
Unavailable |
|||
|
#3
JET, MAIN (#390)
137-14143-78-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, MAIN (370)
137-14143-74-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PILOT JET, AIR #2.5
239-14172-25-00
|
$0.62 | ||
|
Unavailable |
|||
|
#5
WASHER, MAIN JET
1G8-14153-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#6
NEEDLE VALVE SET (#3.3)
24X-14107-33-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
483-14146-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#9
FLOAT
310-14185-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#10
ARM, FLOAT
310-14187-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#11
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, FLOAT CHAMBER
483-14184-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY, FLOAT CHAMBER 1
310-14181-16-00
|
$33.74 | ||
|
Unavailable |
|||
|
#14
PLUG, SCREW
500-14115-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
558-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE
313-14146-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#19
NOZZLE, MAIN P-8
239-14141-48-00
|
$16.49 | ||
|
Unavailable |
|||
|
#20
VALVE, THROTTLE 1
509-14112-35-00
|
$49.49 | ||
|
Unavailable |
|||
|
#21
NEEDLE (6F15-3)
239-14116-15-00
|
$11.18 | ||
|
Unavailable |
|||
|
#22
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CONNECTOR
509-14274-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN HEAD (98501-03008-00
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING (92901-03100-0
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAT, SPRING
509-14136-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#27
SPRING, THROTTLE VALVE
363-14131-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#28
O-RING
93210-40289-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
TOP, MIXING CHAMBER
509-14158-00-00
|
$16.96 | ||
|
Unavailable |
|||
|
#30
NUT, CABLE ADJUSTING
802-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, CABLE ADJUSTING
360-14124-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#32
CAP
525-14169-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#33
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
THROTTLE SCREW SET
24X-14103-00-00
Superseded by 40T-14103-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
812-14147-00-00
Superseded by 6K8-14562-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, NEEDLE
812-14235-00-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, AIR ADJUSTING
137-14134-00-00
|
$4.58 | ||
|
Unavailable |
|||
|
#38
SCREW, AIR ADJUSTING
1G8-14123-00-00
|
$10.32 | ||
|
Unavailable |
|||
|
#39
PLUNGER, STARTER
1G8-14171-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#40
SPRING, PLUNGER
156-14135-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP, PLUNGER
152-14174-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP, PLUNGER
353-14138-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, PLUNGER CAP
637-14173-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#44
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIPE
2J2-14196-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
JET, MAIN (#300)
137-14143-60-A0
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
