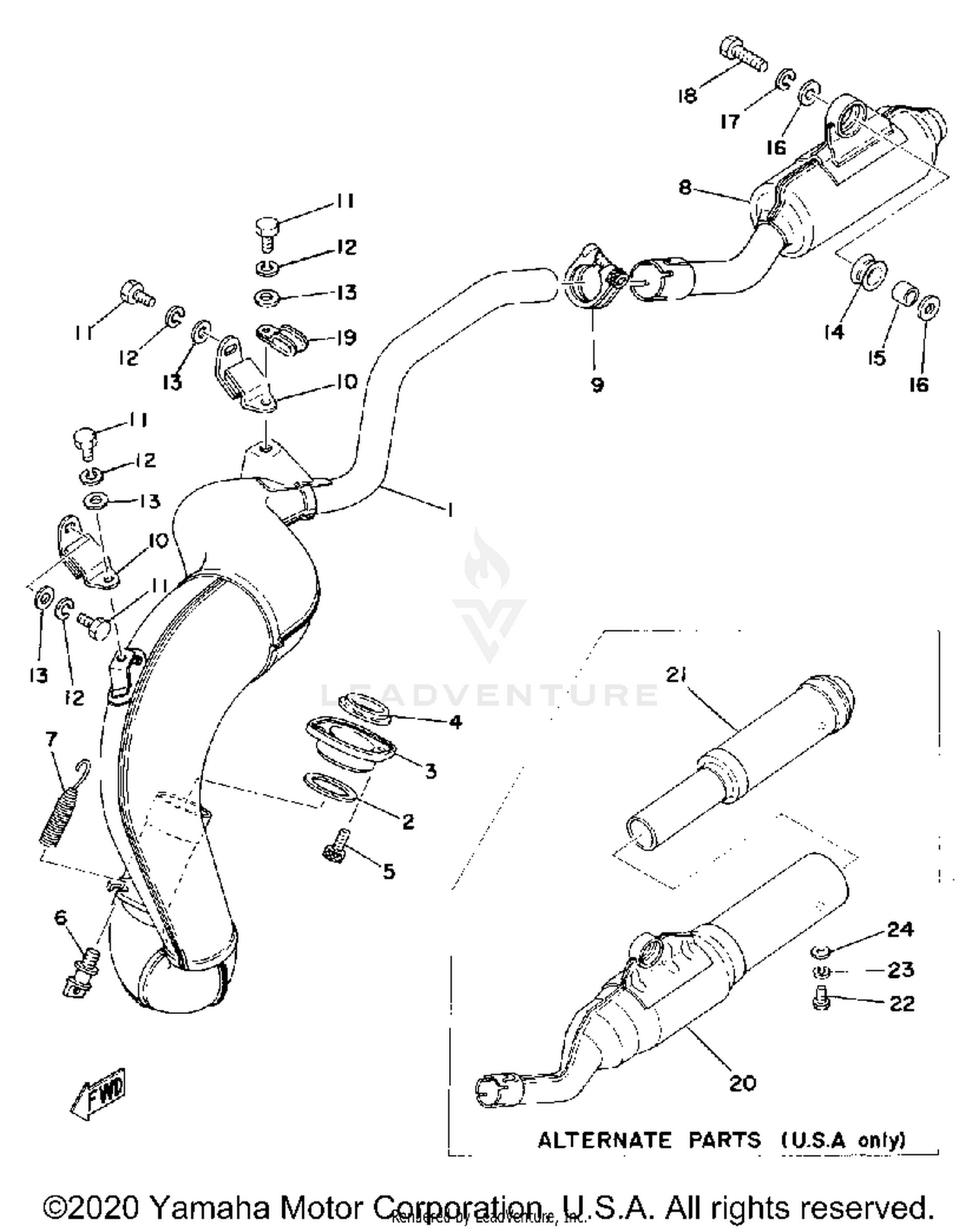

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
1L8-14610-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#2
GASKET
248-14623-00-00
Superseded by 248-14623-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, RING
1L8-14612-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#4
GASKET, EXHAUST PIPE
152-14613-00-00
Superseded by 3PA-14613-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HOOK
409-14684-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#7
SPRING, TENSION (145-14683-00)
90507-20012-00
|
$14.99 | ||
|
Unavailable |
|||
|
#8
SILENCER, EXHAUST (1G8-14753-00
1G8-14753-01-00
|
$81.99 | ||
|
Unavailable |
|||
|
#9
BAND, SILENCER
537-14788-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#10
STAY, MUFFLER 1
537-14771-01-00
|
$15.99 | ||
|
Unavailable |
|||
|
#11
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-07081-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90461-06M01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SILENCER, EXHAUST
1G8-14753-10-00
|
$60.96 | ||
|
Unavailable |
|||
|
#21
PIPE, OUTLET
1G8-14752-10-00
|
$26.68 | ||
|
Unavailable |
|||
|
#22
BOLT (661)
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
