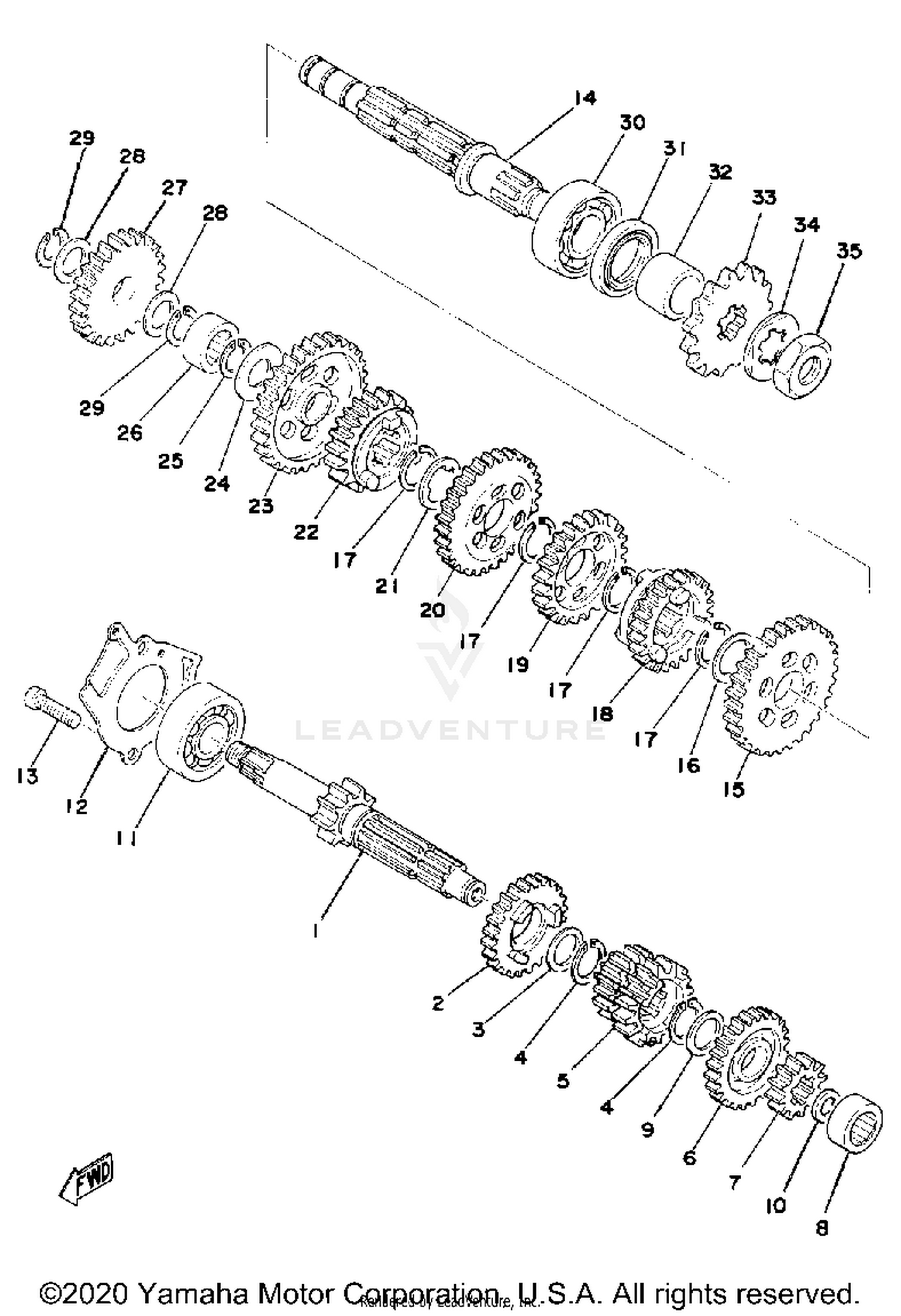

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
1G8-17411-00-00
|
$68.84 | ||
|
Unavailable |
|||
|
#2
GEAR, 5TH PINION
537-17151-00-00
|
$36.74 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP, S-TYPE
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
537-17131-01-00
|
$42.84 | ||
|
Unavailable |
|||
|
#6
GEAR, 6TH PINION
537-17161-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION
537-17121-00-00
|
$18.22 | ||
|
Unavailable |
|||
|
#8
BEARING, CYLINDER.#11
93311-31522-00
|
$37.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-15564-00
Superseded by 90201-15234-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE (T=1.0)
90201-15701-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, COVER
1G8-17471-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
AXLE, DRIVE
537-17421-00-00
|
$49.20 | ||
|
Unavailable |
|||
|
#15
GEAR, 2ND WHEEL
537-17221-01-00
|
$35.38 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 6TH WHEEL
537-17261-01-00
|
$41.64 | ||
|
Unavailable |
|||
|
#19
GEAR, 4TH WHEEL
537-17241-02-00
|
$35.38 | ||
|
Unavailable |
|||
|
#20
GEAR, 3RD WHEEL
537-17231-02-00
|
$35.38 | ||
|
Unavailable |
|||
|
#21
WASHER
90209-18135-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 5TH WHEEL
537-17251-01-00
|
$63.14 | ||
|
Unavailable |
|||
|
#23
GEAR, 1ST WHEEL
537-17211-00-00
|
$46.48 | ||
|
Unavailable |
|||
|
#24
SHIM 1 (T=0.6)
164-17427-00-06
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP, OUTER
93440-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, CYLINDRICAL
93311-31567-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, KICK IDLE (25T)
525-15651-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM 1 (0.5T)
137-17417-00-05
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP, OUTER
93440-15012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
BEARING (B6204CS)
93306-20458-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93102-26042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-202A0-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, DRIVE 13T
93832-13027-00
|
$15.47 | ||
|
Unavailable |
|||
|
#33
SPROCKET, DRIVE 12T
93832-12014-00
|
$17.99 | ||
|
Unavailable |
|||
|
#33
SPROCKET, DRIVE 11T
93832-11007-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, LOCK
90215-16127-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
90179-16226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
