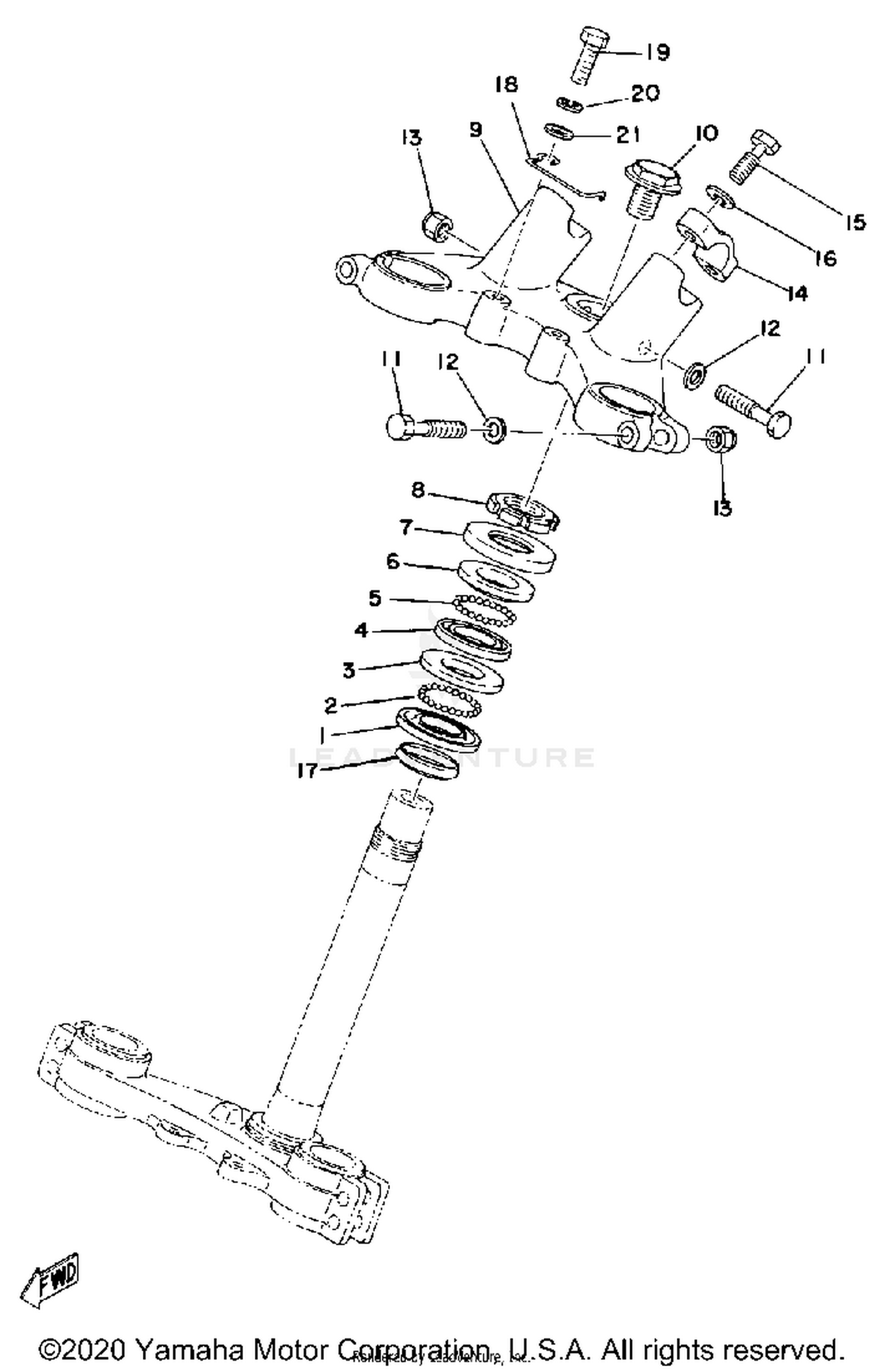

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, BALL 2
156-23412-00-00
Superseded by B6E-23412-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
RACE, BALL 2
22F-23412-01-00
Superseded by BP2-23412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
RACE, BALL 1
22F-23411-01-00
Superseded by BP2-23411-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, BALL RACE 2
10V-23416-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FRONT FORK ASSEMBLY
1G8-23101-L1-00
|
$239.99 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
90105-14136-00
Superseded by 90105-14220-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (661)
97321-08055-00
Superseded by 97013-08055-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, HANDLE UPPER
401-23441-00-98
|
$17.49 | ||
|
Unavailable |
|||
|
#15
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, STEERING
164-23462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, LOWER
483-23345-00-33
|
$120.99 | ||
|
Unavailable |
|||
|
#19
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
