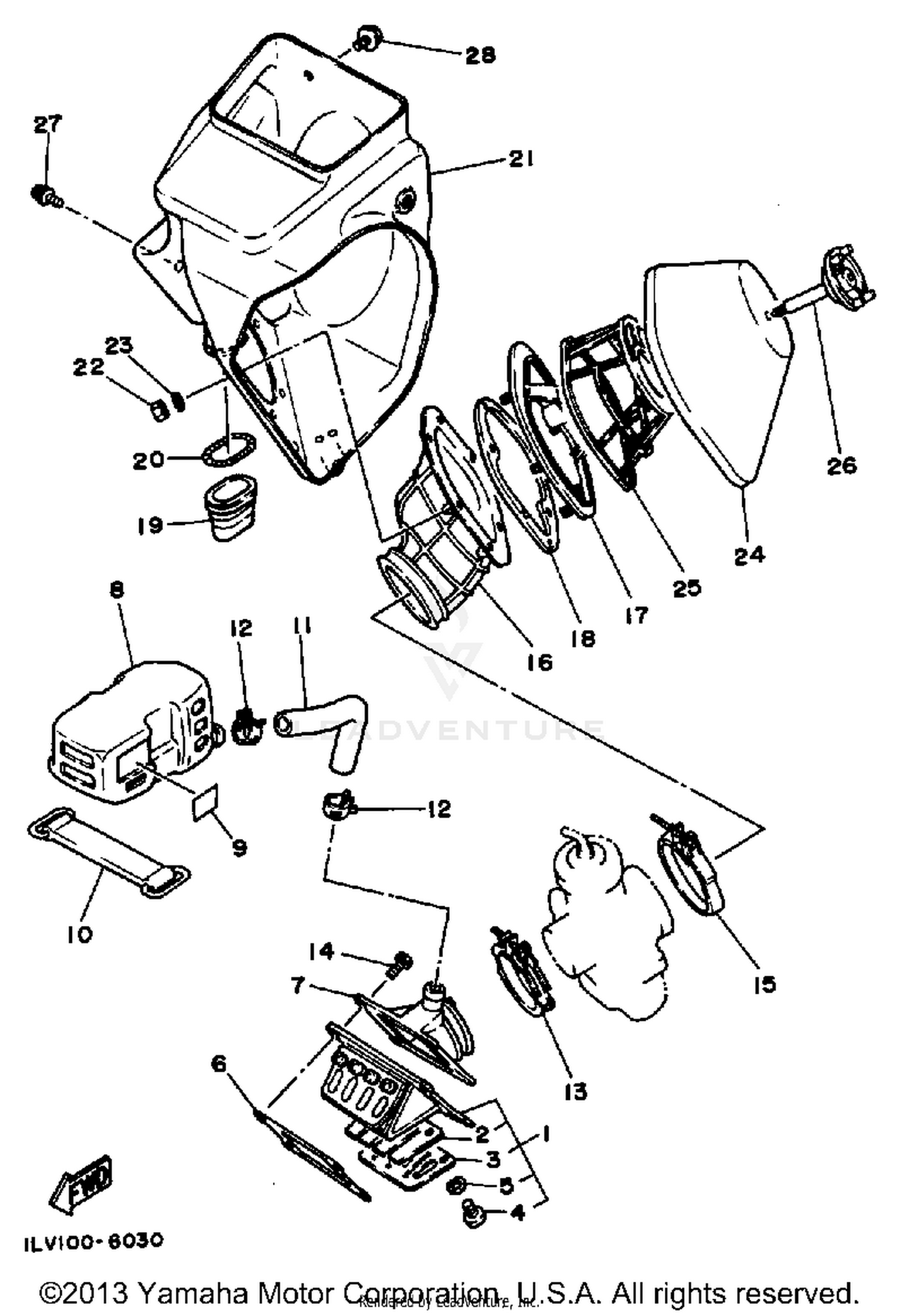

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
56A-13610-01-00
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
56A-13613-00-00
Superseded by 8AB-13613-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
STOPPER, REED VALVE
56A-13616-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, VALVE SEAT
39X-13621-11-00
|
$12.99 | ||
|
Unavailable |
|||
|
#7
JOINT, CARBURETOR
40T-13565-00-00
|
$114.99 | ||
|
Unavailable |
|||
|
#8
CHAMBER, AIR
40T-13581-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#9
EMBLEM
4V3-1441K-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#10
BAND
26A-13575-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#11
PIPE, MANIFOLD
1LV-13584-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#12
CLIP
90467-23059-00
Superseded by 90467-23177-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND
86M-13575-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, HOSE
90460-74254-00
|
$14.99 | ||
|
Unavailable |
|||
|
#16
JOINT, AIR CLNR 1
1LV-14453-00-00
|
$208.99 | ||
|
Unavailable |
|||
|
#17
HOLDER, GUIDE
1LX-14459-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#18
SEAL
1LX-14462-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
SEAL
39K-14457-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#20
SPRING, COMPRESSION
90504-03033-00
|
$4.35 | ||
|
Unavailable |
|||
|
#21
AIR CLEANER CASE
1LX-W1441-01-00
|
$89.99 | ||
|
Unavailable |
|||
|
#22
NUT, U
95601-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
ELEMENT, AIR CLNR
1LX-14451-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#25
GUIDE, ELEMENT
1LX-14458-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
PLATE, ELEMENT FITTING
56A-14468-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
90119-06081-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
