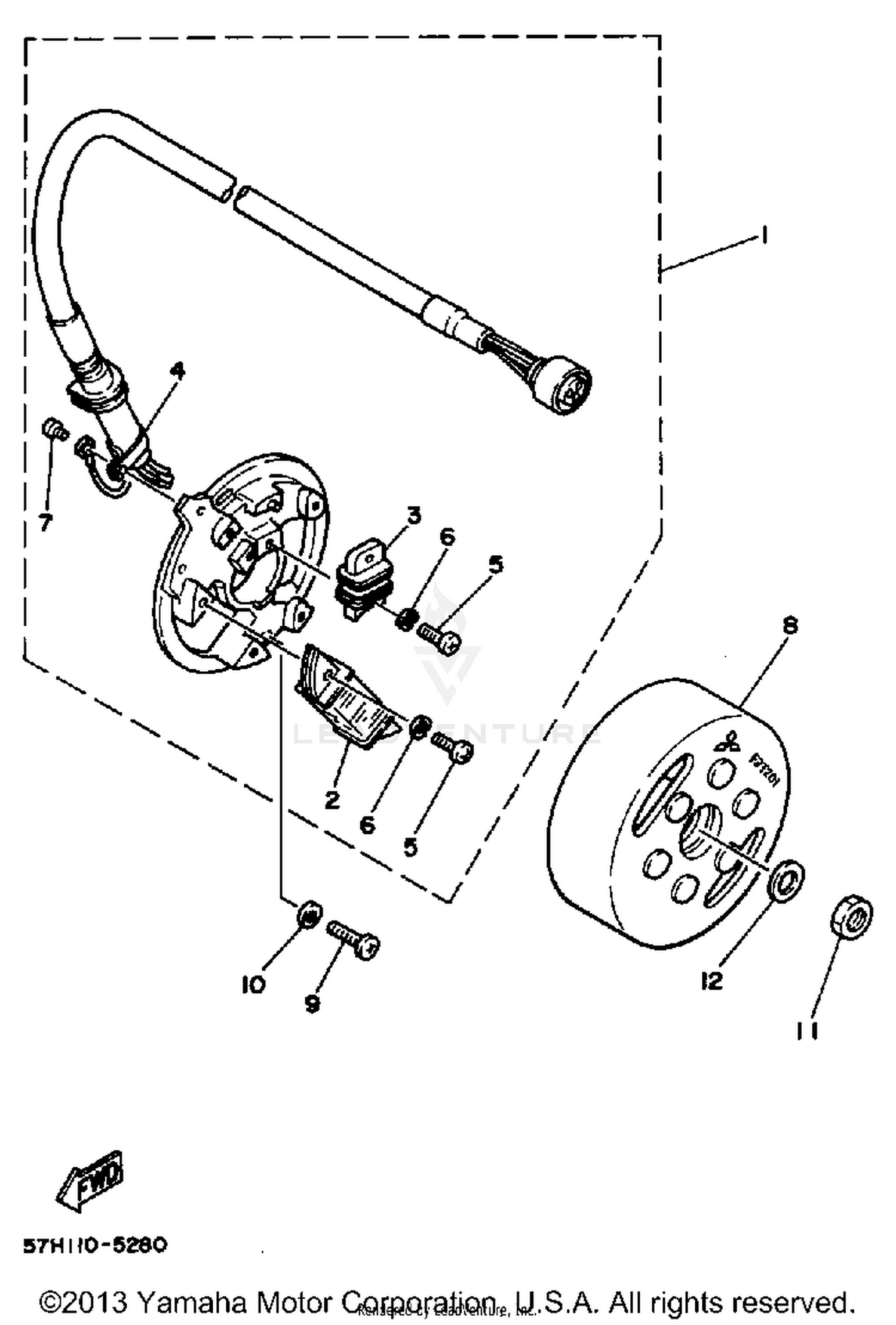

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSEMBLY
23X-85510-21-00
|
$638.99 | ||
|
Unavailable |
|||
|
#2
COIL, CHARGE
23X-85520-21-00
|
$223.99 | ||
|
Unavailable |
|||
|
#3
COIL, PULSER
23X-85580-20-00
|
$271.99 | ||
|
Unavailable |
|||
|
#4
CLAMP
104-81328-20-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROTOR ASSEMBLY
23X-85550-20-00
|
$447.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-06020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-061A5-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEXAGON
90170-12347-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-12593-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
