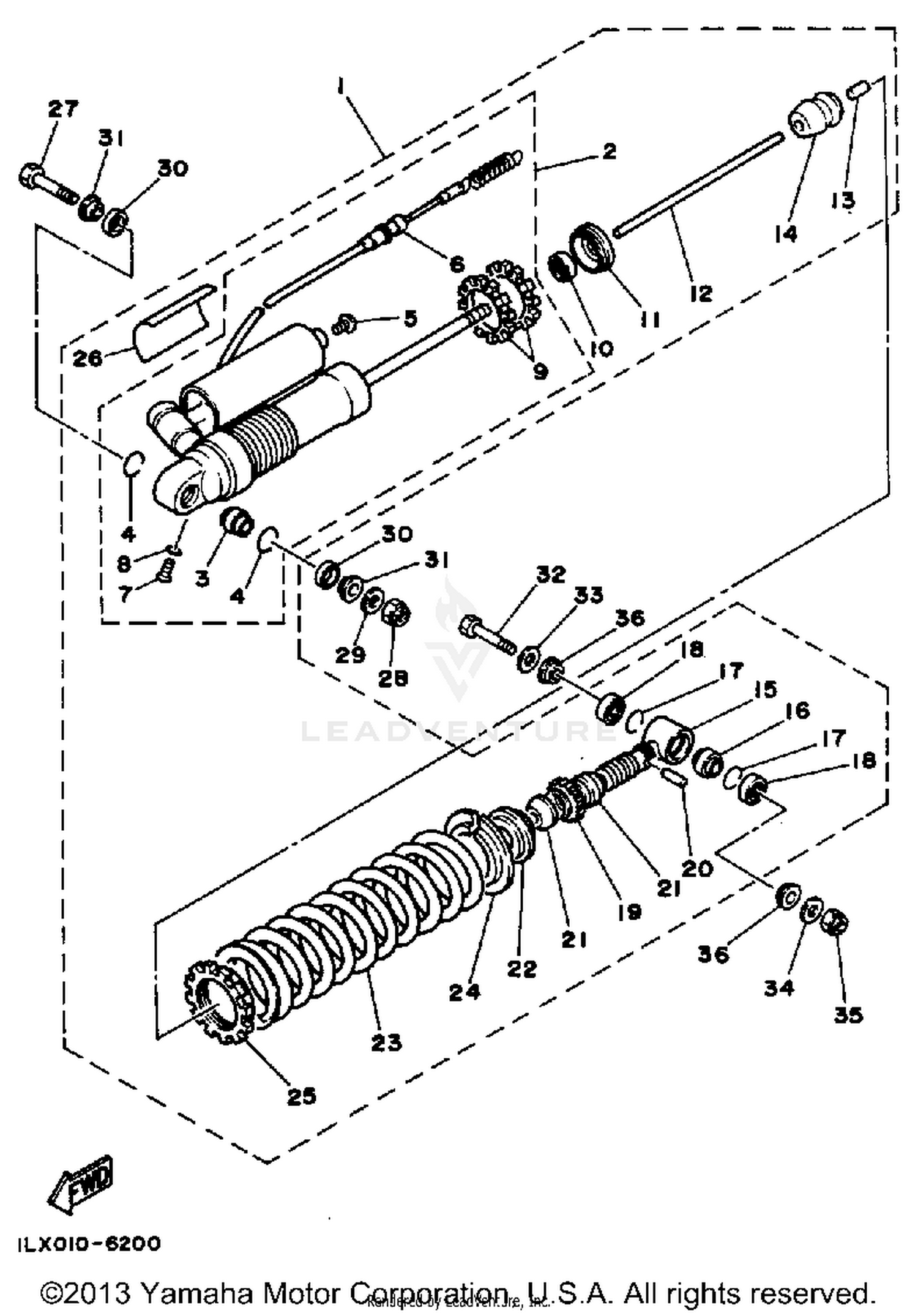

Rear Shock Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
1LV-22210-00-6W
|
$454.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB-ASSEMBLY.
1LV-22401-00-00
|
$599.99 | ||
|
Unavailable |
|||
|
#3
BEARING (93399-99934-00)
93399-99934-00
Superseded by 93399-999T3-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, CONTROL 1
1LV-22463-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#7
SCREW, OVAL HEAD (92701-060
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#8
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, HOLD
1LX-22225-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#10
SEAL,DUST
23X-22475-00-00
Superseded by 23X-22475-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#11
CAP, CASE
26A-22472-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
ROD, PUSH
1LX-22489-00-00
|
$3.40 | ||
|
Unavailable |
|||
|
#13
PIN, DOWEL
93604-21193-00
|
$1.15 | ||
|
Unavailable |
|||
|
#14
BUMP, STOP
1LX-22493-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#15
UPPER BRKT SUB ASSEMBLY
1LX-22409-00-00
|
$38.25 | ||
|
Unavailable |
|||
|
#16
BEARING (93399-99934-00)
93399-99934-00
Superseded by 93399-999T3-00
|
$57.99 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Unavailable |
|||
|
#18
OIL SEAL
93104-18077-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, ADJUSTING
5X3-22497-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#20
PIN, DOWEL
93604-26132-00
|
$2.00 | ||
|
Unavailable |
|||
|
#21
COVER
3R4-22221-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
SEAT, SPRING UPPER
1LX-22213-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#
SPRING (5.25) (BLACK-WHITE)
1LV-22212-10-6W
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING (5.50) (BLACK-BLUE)
1LV-22212-00-6W
|
$157.99 | ||
|
Unavailable |
|||
|
#
SPRING (5.75)
1LV-22212-20-6W
|
$125.99 | ||
|
Unavailable |
|||
|
#24
GUIDE, SPRING 1
2VN-22214-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#25
SEAT, SPRING LOWER
1LX-22223-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#26
LABEL, CAUTION
1LV-22499-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#27
BOLT
90109-10704-00
|
$11.49 | ||
|
Unavailable |
|||
|
#28
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
UNAVAILABLE IN PRICE BOOK (9020
90201-104F7-00
|
|||
|
Unavailable |
|||
|
#30
COVER
23X-22211-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-127G8-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-10700-00
|
$15.49 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#36
COLLAR
90387-126H8-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
