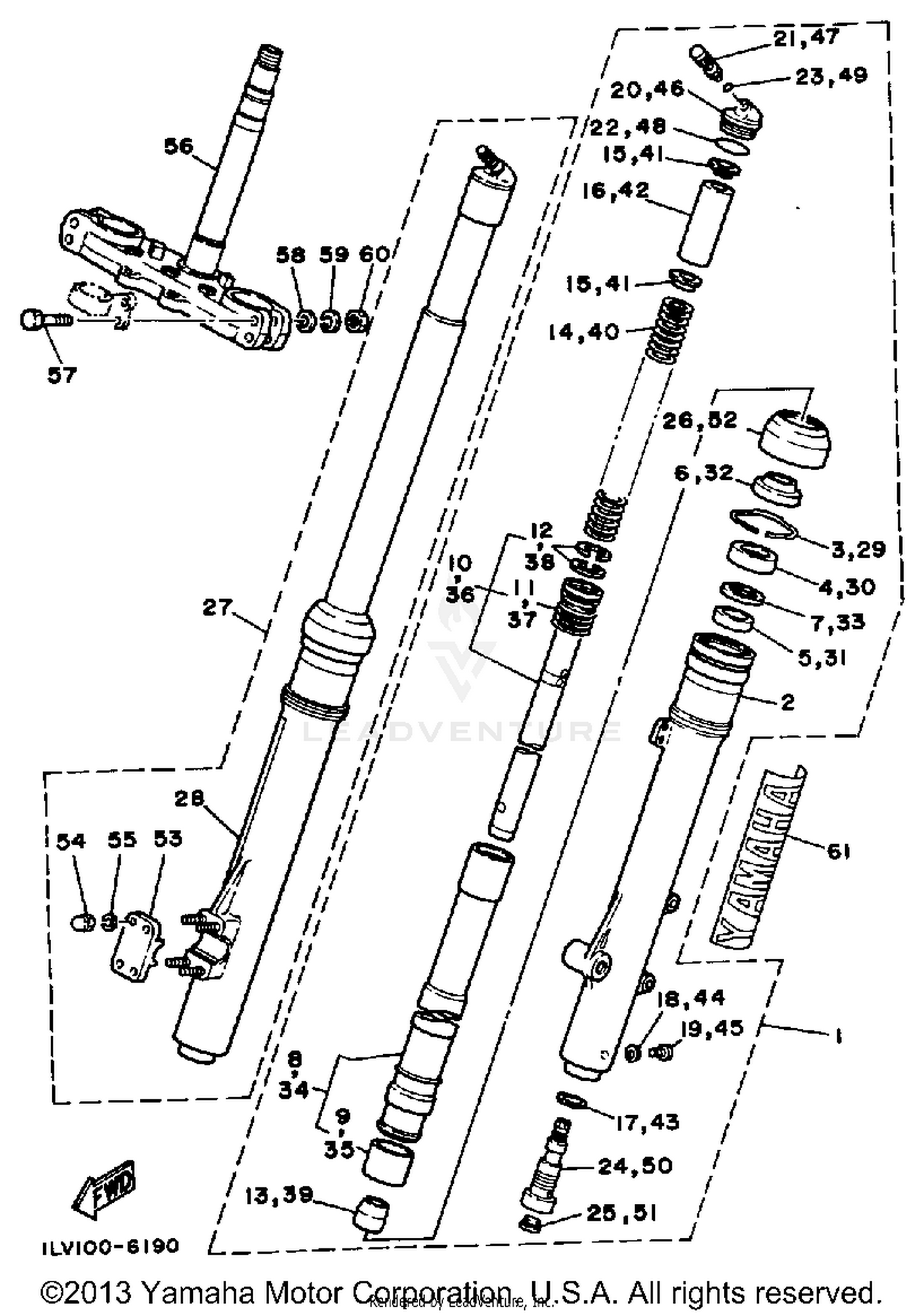

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
1LV-23102-L0-00
|
$423.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
1LX-23126-L0-00
|
$294.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
23X-23145-L0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
23X-23144-L0-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE 1
1LX-23110-L0-00
|
$239.99 | ||
|
Unavailable |
|||
|
#9
PISTON, FRONT FORK
4V4-23171-L0-00
|
$63.99 | ||
|
Unavailable |
|||
|
#10
CYLINDER, FRONT FORK
1LV-23170-M0-00
|
$131.99 | ||
|
Unavailable |
|||
|
#11
SPRING, SUB
55Y-23152-M0-00
|
$6.44 | ||
|
Unavailable |
|||
|
#12
RING, PISTON FRONT FORK
4V4-23157-L0-00
|
$19.99 | ||
|
Unavailable |
|||
|
#13
SPINDLE, TAPER
23X-23173-L0-00
|
$35.99 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK HARD (K@0.
57H-23141-20-00
|
$85.99 | ||
|
Unavailable |
|||
|
#14
SPRING, FRONT FORK (K=0.375)
1LV-23141-L0-00
|
$88.99 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK (K=0.4)
1LV-23141-20-00
|
$61.52 | ||
|
Unavailable |
|||
|
#15
SEAT, SPRING UPPER
4V4-23142-L0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
1LV-23118-L0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#
SPACER
1LV-23118-10-00
Superseded by 1LV-23118-L0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#17
GASKET
23X-23158-L0-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CAP
43M-23111-L0-00
|
$80.99 | ||
|
Unavailable |
|||
|
#21
AIR VALVE COMP.
23X-23190-L0-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
4V4-23188-L0-00
Superseded by 4V4-23188-L1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#23
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
VALVE
56A-2316A-L0-00
|
$111.99 | ||
|
Unavailable |
|||
|
#25
PLUG
55Y-2312G-M0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL, DUST
1LX-23144-L0-00
|
$15.99 | ||
|
Unavailable |
|||
|
#27
FRONT FORK ASSEMBLY R
1LV-23103-L0-00
|
$444.99 | ||
|
Unavailable |
|||
|
#28
TUBE, OUTER 2
1LX-23136-L0-00
|
$284.99 | ||
|
Unavailable |
|||
|
#29
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#30
OIL SEAL
23X-23145-L0-00
|
$30.99 | ||
|
Unavailable |
|||
|
#31
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#32
SEAL, DUST
23X-23144-L0-00
|
$25.99 | ||
|
Unavailable |
|||
|
#33
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
INNER TUBE 1
1LX-23110-L0-00
|
$239.99 | ||
|
Unavailable |
|||
|
#35
PISTON, FRONT FORK
4V4-23171-L0-00
|
$63.99 | ||
|
Unavailable |
|||
|
#36
CYLINDER, FRONT FORK
1LV-23170-M0-00
|
$131.99 | ||
|
Unavailable |
|||
|
#37
SPRING, SUB
55Y-23152-M0-00
|
$6.44 | ||
|
Unavailable |
|||
|
#38
RING, PISTON FRONT FORK
4V4-23157-L0-00
|
$19.99 | ||
|
Unavailable |
|||
|
#39
SPINDLE, TAPER
23X-23173-L0-00
|
$35.99 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK HARD (K@0.
57H-23141-20-00
|
$85.99 | ||
|
Unavailable |
|||
|
#40
SPRING, FRONT FORK (K=0.375)
1LV-23141-L0-00
|
$88.99 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK (K=0.4)
1LV-23141-20-00
|
$61.52 | ||
|
Unavailable |
|||
|
#41
SEAT, SPRING UPPER
4V4-23142-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#42
SPACER
1LV-23118-L0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#
SPACER
1LV-23118-10-00
Superseded by 1LV-23118-L0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#43
GASKET
23X-23158-L0-00
|
$4.35 | ||
|
Unavailable |
|||
|
#44
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#45
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#46
BOLT, CAP
43M-23111-L0-00
|
$80.99 | ||
|
Unavailable |
|||
|
#47
AIR VALVE COMP.
23X-23190-L0-00
|
$64.99 | ||
|
Unavailable |
|||
|
#48
O-RING
4V4-23188-L0-00
Superseded by 4V4-23188-L1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#49
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#50
VALVE
56A-2316A-L0-00
|
$111.99 | ||
|
Unavailable |
|||
|
#51
PLUG
55Y-2312G-M0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#52
SEAL, DUST
1LX-23144-L0-00
|
$15.99 | ||
|
Unavailable |
|||
|
#53
HOLDER, AXLE
43M-23167-L0-00
Superseded by 1LX-23167-L0-00
|
$57.99 | ||
|
Unavailable |
|||
|
#54
NUT, SPECIAL
5Y3-23393-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#56
UNDER BRACKET
1LX-23340-L0-00
|
$395.99 | ||
|
Unavailable |
|||
|
#57
BOLT
90101-08340-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#58
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#59
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#
BAND
43M-23192-L0-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BAND
3LD-23489-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM
1LX-23108-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#
BOOT, FRONT FORK
43M-23191-L0-00
|
$146.99 | ||
|
Unavailable |
|||
