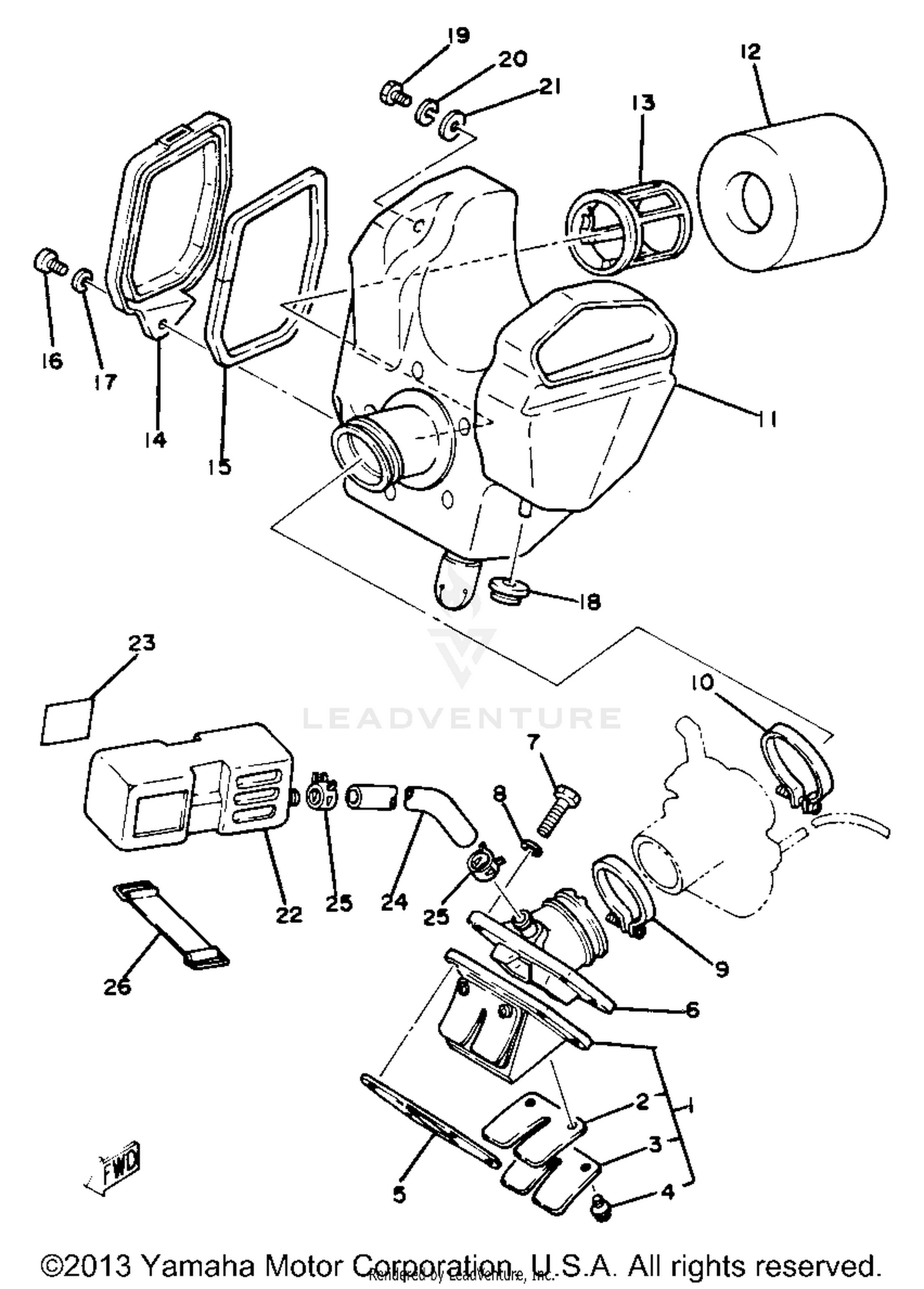

Intake Yz80j Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY (885-13610-
10V-13610-01-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE (1L8-13613-00-00)
10V-13613-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE (10V-1261
1UA-13616-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, VALVE SEAT
3TT-13621-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CARBURETOR
5X2-13565-00-00
|
$45.46 | ||
|
Unavailable |
|||
|
#7
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HOSE
90460-51059-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
AIR CLNR CASE ASSEMBLY
5X2-14401-00-00
|
$60.37 | ||
|
Unavailable |
|||
|
#12
ELEMENT, AIR CLNR
4V1-14451-00-00
|
$24.98 | ||
|
Unavailable |
|||
|
#13
GUIDE, ELEMENT
4V1-14458-00-00
|
$9.40 | ||
|
Unavailable |
|||
|
#14
CAP, CLEANER CASE 1
4V1-14412-00-00
|
$23.26 | ||
|
Unavailable |
|||
|
#15
SEAL
4V1-14452-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
CHAMBER, AIR
5X2-13581-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#23
EMBLEM
4V3-1441K-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#24
HOSE
90445-15612-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
CLIP
90467-16063-00
Superseded by 90467-16181-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND, BATTERY
2T4-82131-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
