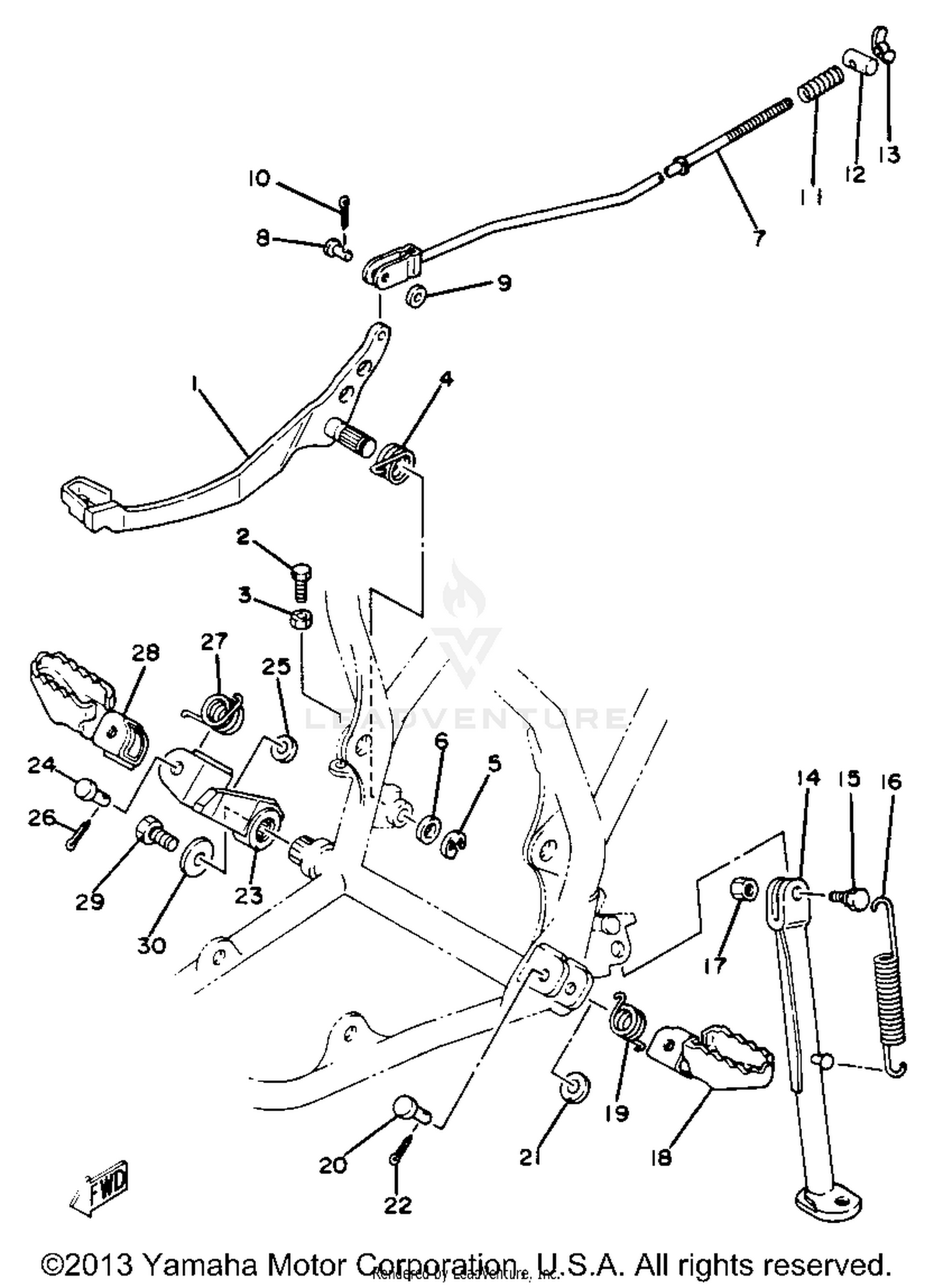

Stand-footrest Yz80j Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5X2-27211-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#2
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-32468-00
|
$7.99 | ||
|
Unavailable |
|||
|
#5
CIRCLIP (E) (99001-09600-00)
99001-09600-00
Superseded by 99080-09600-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92990-12600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, BRAKE
5X2-27231-00-00
|
$11.08 | ||
|
Unavailable |
|||
|
#8
PIN, CLEVIS
90240-06103-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-10245-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
90249-12008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-06411-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAND, SIDE
4V1-27311-00-R4
|
$36.99 | ||
|
Unavailable |
|||
|
#15
BOLT
90109-08063-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, TENSION
90506-26270-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST 1
22W-27411-01-90
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TORSION
90508-20023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, CLEVIS
90240-08085-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, FOOTREST 2 (5X2-27422-
5X2-27422-01-33
|
$76.99 | ||
|
Unavailable |
|||
|
#24
PIN, CLEVIS
90240-08085-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#26
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Unavailable |
|||
|
#27
SPRING, TORSION
90508-20023-00
|
$7.99 | ||
|
Unavailable |
|||
|
#28
FOOTREST 2 (3R1-27421-00)
22W-27421-01-90
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
97011-10020-00
Superseded by 97017-10020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-10144-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
