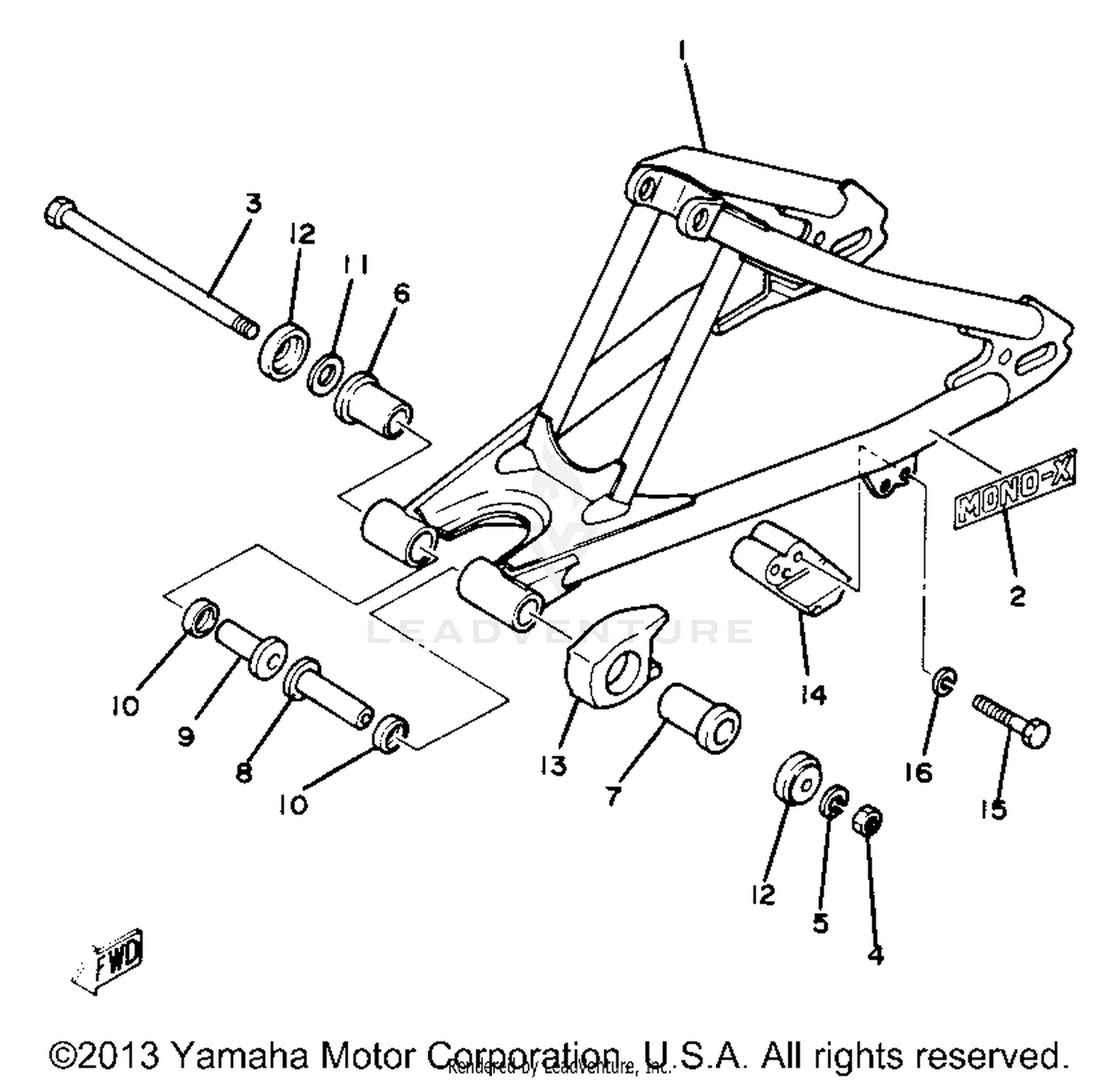

Rear Arm Yz80j Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
5X2-22110-00-35
|
$121.99 | ||
|
Unavailable |
|||
|
#2
REFLECTOR
4V0-2218A-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#3
SHAFT, PIVOT
4V1-22141-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#4
NUT
95311-12700-00
Superseded by 95317-12700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
90386-18099-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH
90386-18109-00
Superseded by 90386-18163-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-121F6-00
|
$29.99 | ||
|
Unavailable |
|||
|
#9
COLLAR
90387-121F7-00
|
$35.99 | ||
|
Unavailable |
|||
|
#10
OIL SEAL
93109-18020-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM
401-22127-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, THRUST 1
401-22128-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, GUARD
4V1-22151-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#14
SUPPORT, CHAIN
4V0-22199-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#15
BOLT
97313-06045-00
Superseded by 97013-06045-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
