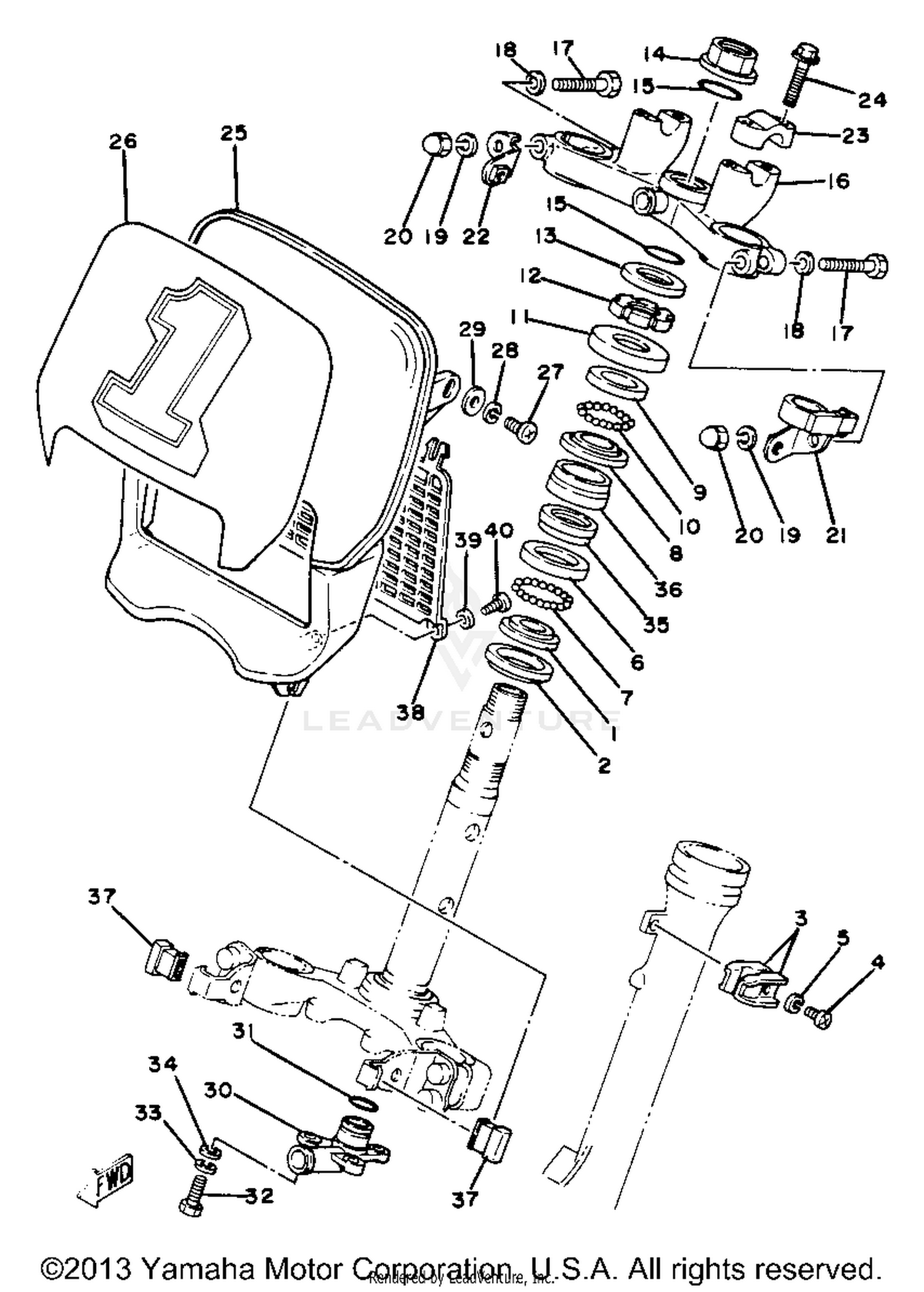

Steering Yz80j Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, DUST
164-23462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
90462-14055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
RACE, BALL 2
156-23412-00-00
Superseded by B6E-23412-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RACE, BALL 1
22F-23411-01-00
Superseded by BP2-23411-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RACE, BALL 2
22F-23412-01-00
Superseded by BP2-23412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, BALL RACE 2
122-23416-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-237E8-00
|
$5.99 | ||
|
Unavailable |
|||
|
#14
NUT
90179-22330-00
|
$12.49 | ||
|
Unavailable |
|||
|
#15
O-RING
93210-23505-00
|
$10.99 | ||
|
Unavailable |
|||
|
#16
CROWN, HANDLE
5X2-23435-00-98
|
$50.80 | ||
|
Unavailable |
|||
|
#17
BOLT,HEX
97313-08050-00
Superseded by 97013-08050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT (CROWN)
95303-08800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER, CABLE 1
5X2-23318-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#22
STAY, PLATE
5X2-23486-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#23
HOLDER, HANDLE UPR (1E6-23441-0
1E6-23441-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, NUMBER
5X2-23485-00-00
|
$69.27 | ||
|
Unavailable |
|||
|
#26
EMBLEM 5
5X2-21785-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
JOINT
5X2-23491-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#31
O-RING
93210-21276-00
Superseded by 93210-21001-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL, SD-TYPE
93102-29256-00
|
$17.99 | ||
|
Unavailable |
|||
|
#36
OIL SEAL, SD-TYPE
93102-28257-00
|
$18.99 | ||
|
Unavailable |
|||
|
#37
DAMPER
5X2-23445-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#38
PROTECTOR
5X2-23472-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#39
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, TAPPING
97780-50612-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
