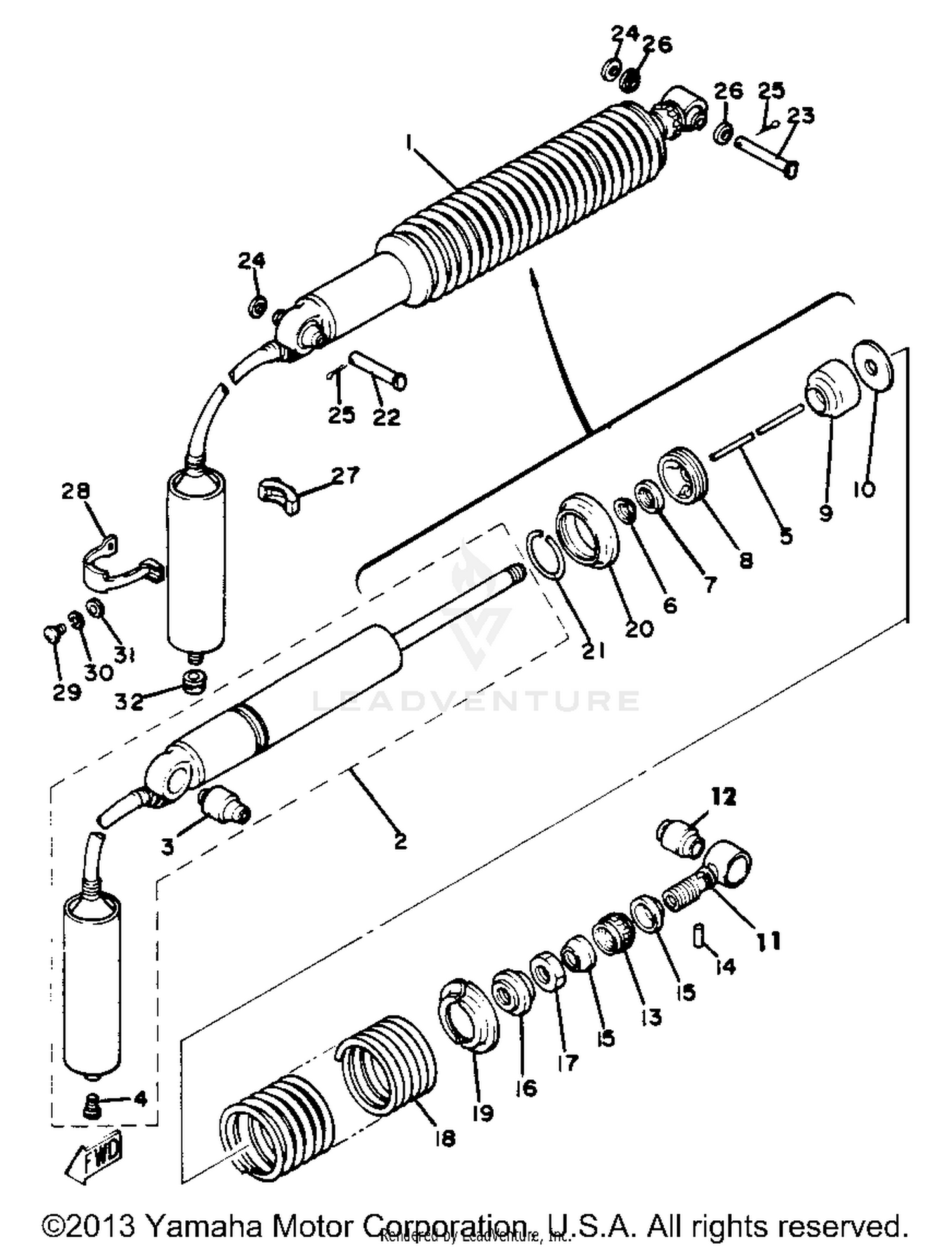

Rear Suspension Yz80j Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
5X2-22210-00-00
|
$533.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB-ASSEMBLY.
5X2-22401-00-00
|
$393.99 | ||
|
Unavailable |
|||
|
#3
BUSH, RR SHOCK ABS
2X6-22216-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, PUSH
5X2-22489-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#6
SEAL, DUST
29L-22475-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#7
SEAL, DUST
29L-22475-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#8
CAP, CASE
38W-22472-01-00
|
$17.49 | ||
|
Unavailable |
|||
|
#9
BUMP, STOP
5X2-22493-00-00
|
$12.92 | ||
|
Unavailable |
|||
|
#10
SUPPORT, BUMP STOP
5X2-22228-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#11
UPPER BRKT SUB ASSEMBLY
5X2-22409-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#12
BUSH, RR SHOCK ABS
2X6-22216-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#13
NUT, ADJUSTING
5X3-22497-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#14
PIN, DOWEL
93604-26132-00
|
$2.00 | ||
|
Unavailable |
|||
|
#15
COVER
3R4-22221-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
3R4-22213-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#17
NUT
90170-20320-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
5X2-22212-00-00
|
$32.66 | ||
|
Unavailable |
|||
|
#
SPRING, MXS HARD
5X2-22212-10-00
|
$53.34 | ||
|
Unavailable |
|||
|
#
SPRING, MXS SOFT
5X2-22212-20-00
|
$43.24 | ||
|
Unavailable |
|||
|
#19
GUIDE, SPRING 1
22W-22214-01-00
Superseded by 3P6-22214-10-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT, SPRING LOWER
5X2-22223-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#21
CIRCLIP
93440-42101-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, CLEVIS
90240-10064-00
|
$4.18 | ||
|
Unavailable |
|||
|
#23
PIN, CLEVIS
90240-10073-00
|
$6.49 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
92990-10600-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, THRUST 2
2X6-22129-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
DAMPER, SUB TANK
5X2-22261-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#28
HOLDER, SUB TANK
5X2-22262-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
90480-17213-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
