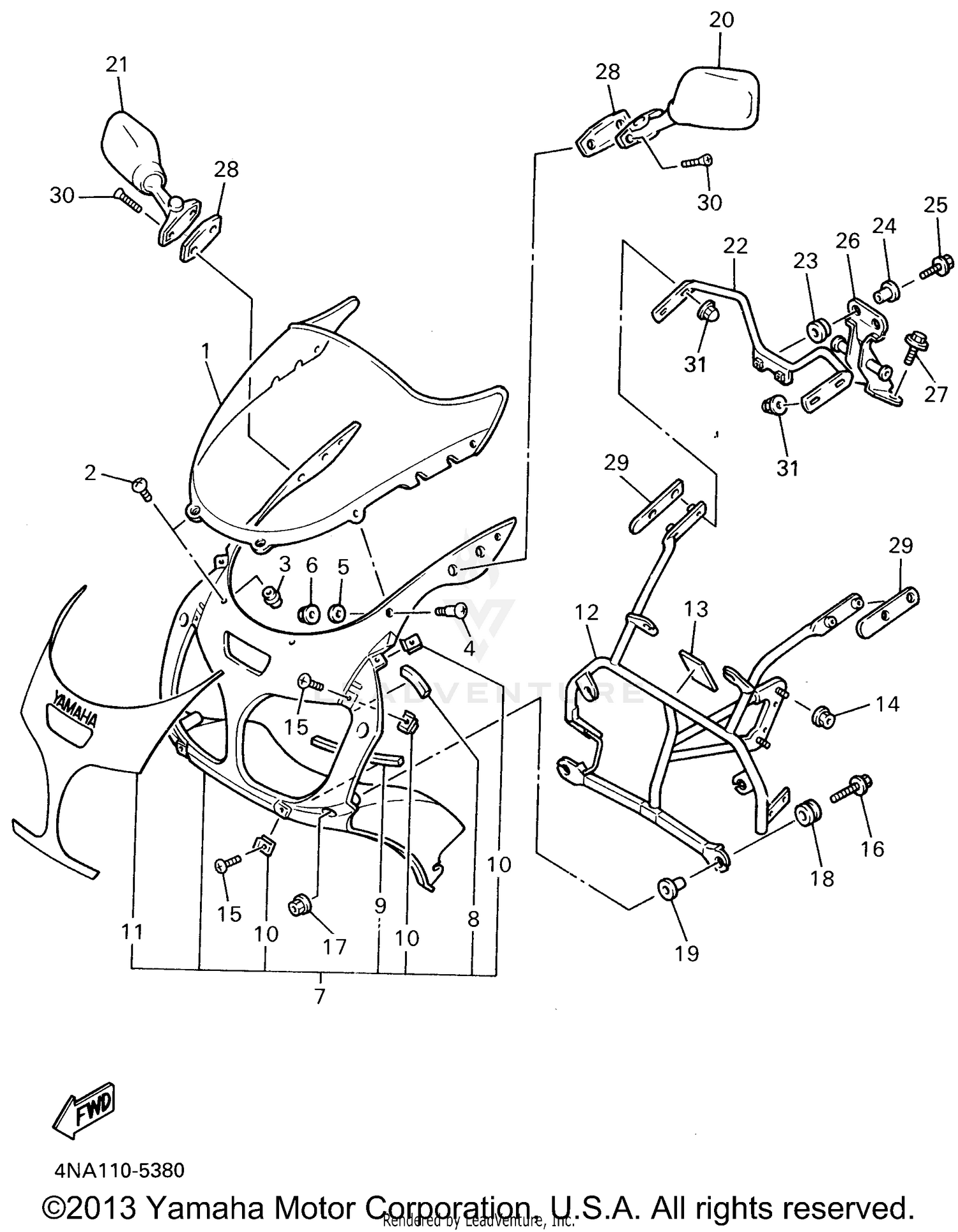

Cowling 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSHIELD
4JH-28381-00-00
Superseded by 4JH-28381-01-00
|
$326.99 | ||
|
Unavailable |
|||
|
#2
SCREW, ROUND HEAD
90150-05023-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-05273-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPECIAL
4FM-28215-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE
95706-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COWLING ASS''Y
4JH-Y2835-30-P1
|
$526.99 | ||
|
Unavailable |
|||
|
#8
TRIM 3
89X-77167-00-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
3MA-21649-00-00
|
$3.15 | ||
|
Unavailable |
|||
|
#10
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRAPHIC SET, COWLING
4NA-28390-01-00
|
$114.99 | ||
|
Unavailable |
|||
|
#12
STAY 1
4JH-28356-00-00
|
$319.99 | ||
|
Unavailable |
|||
|
#13
DAMPER, LOCATING 3
51L-28371-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
NUT, SELF-LOCKING
95606-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BINDING
90154-05059-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,FLANGE
95816-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U FLANGE
95606-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR VIEW MIRROR ASSY (LEFT)
4FM-26280-10-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
REAR VIEW MIRROR ASSY (RIGHT)
4FM-26290-10-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, MIRROR 1
4JH-2831W-00-00
|
$145.85 | ||
|
Unavailable |
|||
|
#23
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-067N5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95026-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY, MIRROR 2
4JH-2832W-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, MIRROR FITTING 2
4FM-26299-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, MIRROR FITTING 1
3XV-26298-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, FLAT HEAD
98706-06025-00
Superseded by 98707-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
