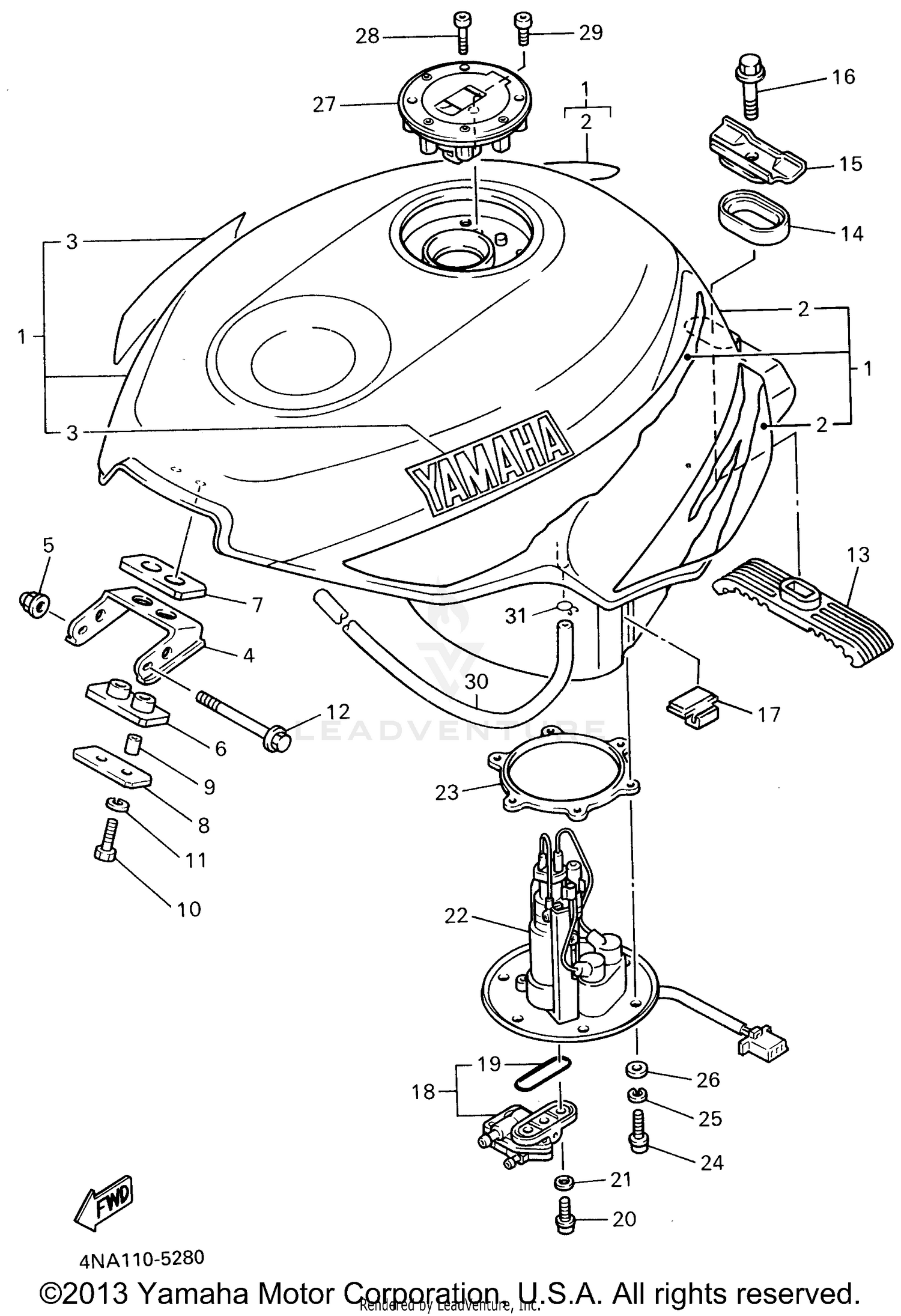

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4FM-24110-30-04
|
$793.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
4FM-24240-11-00
|
$153.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM, YAMAHA
99227-00160-00
Superseded by 99247-00160-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FUEL TANK 1
4FM-24191-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 1
2GH-24181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 3
2GH-24183-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL
2GH-24186-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06553-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95816-06075-00
Superseded by 95817-06075-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 2
33M-24182-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 3
3Y6-24183-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL
4FM-24187-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 3
4JH-24183-00-00
Superseded by 4JH-24183-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#18
FUEL COCK ASSEMBLY 1
3FV-24500-01-00
Superseded by 3FV-24500-02-00
|
$252.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
4X8-24512-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, SPECIAL SHAPE
90149-06008-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90202-05187-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUEL PUMP ASSEMBLY
4FM-13910-00-00
|
$709.99 | ||
|
Unavailable |
|||
|
#23
SEAL
4FM-2414G-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP ASSY
4FM-24602-00-00
Superseded by 4FM-24602-20-00
|
$300.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
91311-05010-00
Superseded by 91314-05010-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE
90445-107H3-00
Superseded by 90445-11M78-00
|
$8.90 | ||
|
Unavailable |
|||
|
#31
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
