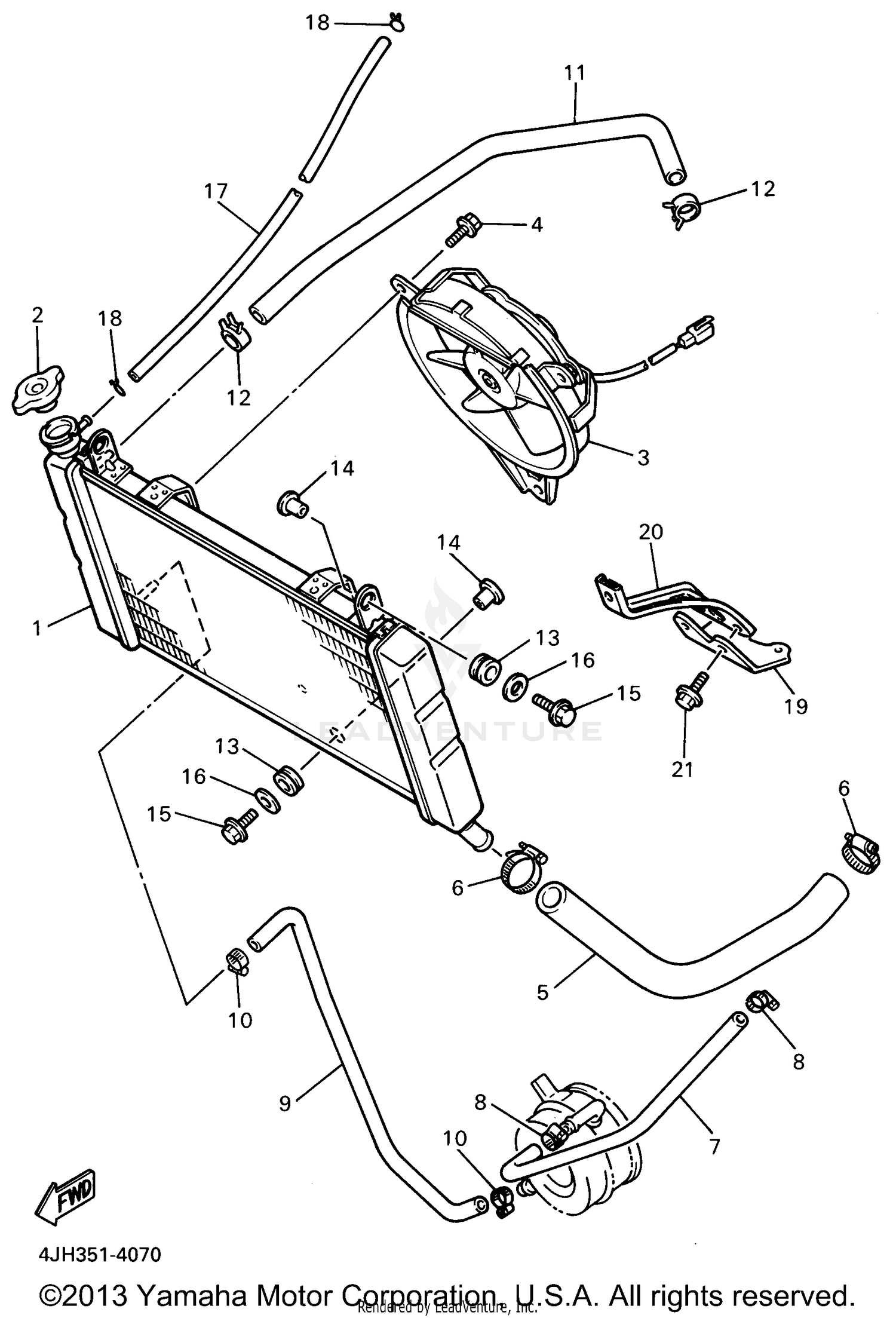

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSEMBLY
4JH-12461-00-00
|
$1,065.99 | ||
|
Unavailable |
|||
|
#2
CAP, RADIATOR
4JH-12462-00-00
Superseded by 5SL-12462-01-00
|
$27.99 | ||
|
Unavailable |
|||
|
#3
BLOWER ASSY
4JH-12405-00-00
|
$294.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE 3
4JH-12578-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#6
HOSE CLAMP ASSY
90450-32051-00
Superseded by 90450-32015-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE 4
3TJ-12579-00-00
Superseded by 4MM-12579-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#8
HOSE CLAMP ASSY
90450-17036-00
Superseded by 90450-14M05-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE 5
4JH-12588-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-17036-00
Superseded by 90450-14M05-00
|
$16.99 | ||
|
Unavailable |
|||
|
#11
HOSE 1
4JH-1243A-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-15363-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95816-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE (L675)
90445-095E9-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET 2
4JH-1244F-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#20
BRACKET, RADIATOR
4JH-2142K-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
