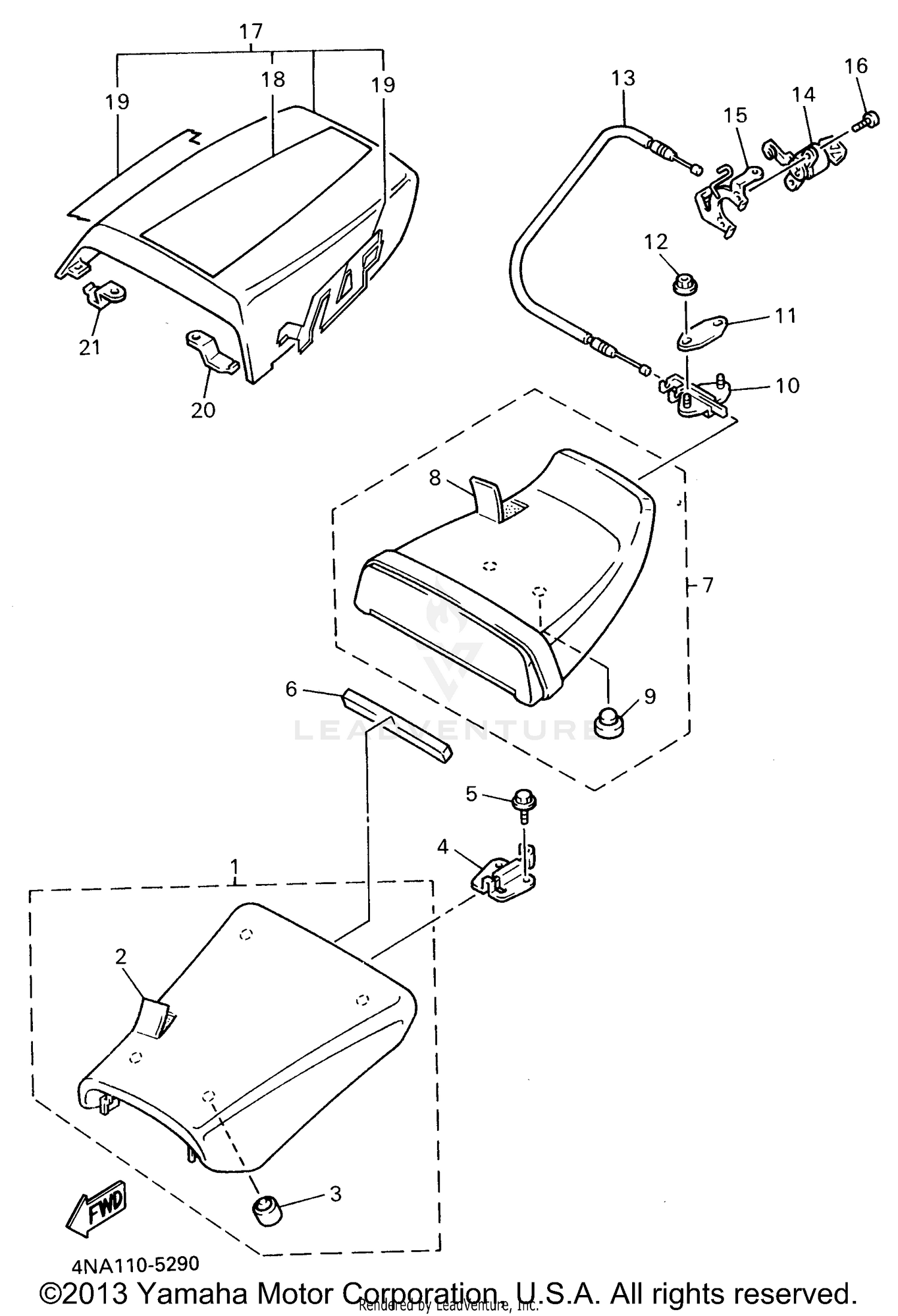

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
4JH-24710-00-00
|
$153.99 | ||
|
Unavailable |
|||
|
#2
COVER, SINGLE SEAT
4JH-24711-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#3
STOPPER, MAIN STAND
278-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT LOCK ASSEMBLY
4FM-24780-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
91002-06016-00
|
$0.19 | ||
|
Unavailable |
|||
|
#6
DAMPER 1
88T-77198-00-00
|
$3.25 | ||
|
Unavailable |
|||
|
#7
TANDEM SEAT ASSEMBLY
4FM-24750-00-00
|
$183.99 | ||
|
Unavailable |
|||
|
#8
COVER, TANDEM SEAT
4FM-24751-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#9
DAMPER, SEAT
509-24724-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT LOCK ASSY
4BP-24780-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE
4BP-24792-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE, SEAT LOCK
4FM-2478E-00-00
Superseded by 4FM-2478E-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#14
SEAT LOCK ASSY
3CK-W2470-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, LOCK
4FM-2117K-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#16
SCREW
90149-06308-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, SEAT
4FM-Y2479-30-P3
|
$265.99 | ||
|
Unavailable |
|||
|
#18
GRAPHIC, SEAT
4FM-2478M-10-00
|
$34.99 | ||
|
Unavailable |
|||
|
#19
EMBLEM
4FM-24786-10-00
|
$26.99 | ||
|
Unavailable |
|||
|
#20
BRACKET, SEAT LEVER 2
4FM-2475J-00-00
Superseded by 4FM-2475J-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#21
BRACKET, SEAT LEVER 1
4FM-2475H-00-00
Superseded by 4FM-2475H-01-00
|
$11.99 | ||
|
Unavailable |
|||
