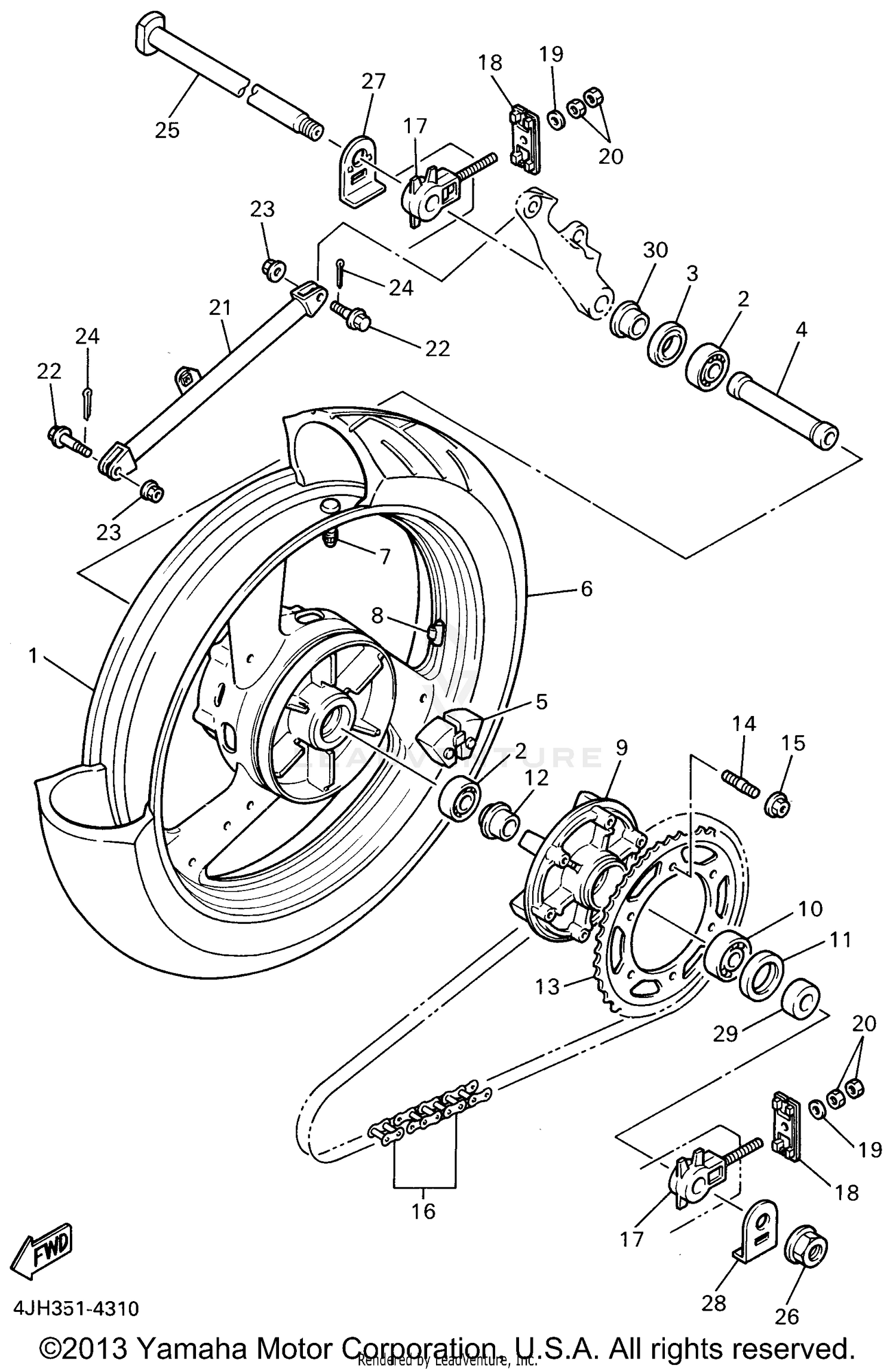

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
4JH-25338-00-P0
|
$739.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20469-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-28022-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-2004F-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
4FM-25364-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TIRE (160/60ZR17M/C BT57R)
94116-1703F-00
Superseded by 94116-1711V-00
|
$271.99 | ||
|
Unavailable |
|||
|
#7
VALVE, RIM (TR412)
93900-00030-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLUTCH, HUB
4FM-25366-00-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20644-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-40211-00
Superseded by 93106-40041-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-2004E-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, DRIVEN (47T)
4JH-25447-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD
90116-10575-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CHAIN (DID50VA7-108LE)
94581-59108-00
|
$293.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PULLER, CHAIN 1
3XW-25388-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
END 1
4JH-22174-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAR, TENSION
4JH-25371-00-00
Superseded by 4JH-25371-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE
90105-08321-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE, WHEEL
3GM-25381-A0-00
Superseded by 3GM-25381-10-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
95601-18200-00
Superseded by 95604-18200-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, WHEEL
4JH-25384-00-00
Superseded by 4JH-25384-03-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, WHEEL
4JH-25384-10-00
Superseded by 4JH-25384-12-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-2004C-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-2004D-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
