1984 Honda CB125S Control Levers + Switches + Cables OEM Parts

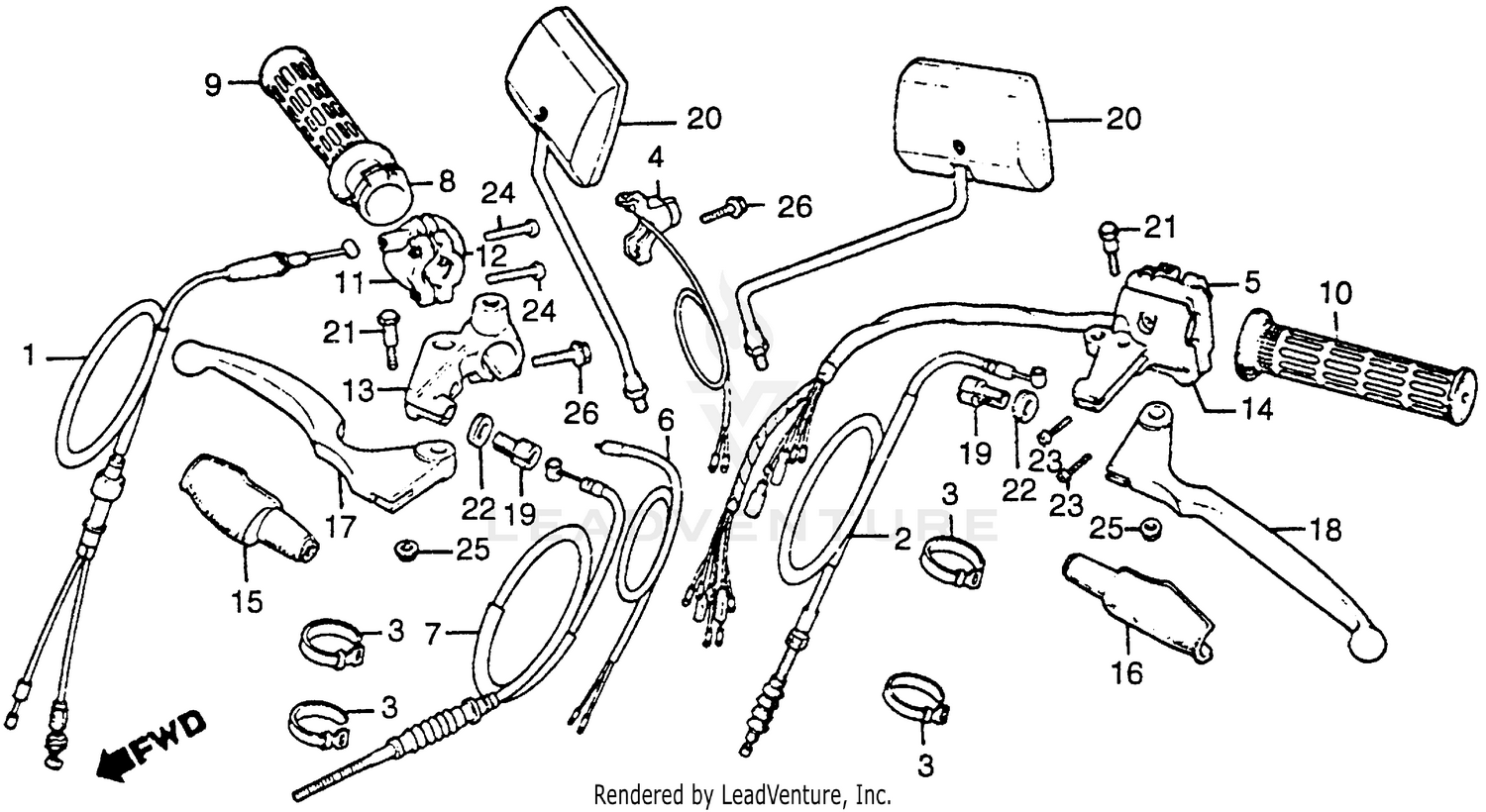

Control Levers + Switches + Cables Diagram

Item	MSRP	Qty
#1 CABLE, THROTTLE (NOT AVAILABLE) 17910-397-630	$16.56
Available to order. Add to View Price
#2 CABLE, CLUTCH 22870-397-630	$16.77
Unavailable
#3 BAND B1, WIRE 32161-404-000	$2.57
Available to order. Add to View Price
#4 SWITCH ASSY., ENGINE STOP (NOT AVAILABLE) 35130-428-673	$38.75
Available to order. Add to View Price
#5 SWITCH, TURN SIGNAL (NOT AVAILABLE) 35210-441-970	$92.43
Available to order. Add to View Price
#6 SWITCH ASSY., FR. STOP 35340-187-700 Superseded by 35340-GAN-620	$22.26
Available to order. Add to View Price
#6 SWITCH ASSY., FR. STOP 35340-401-681 Superseded by 35340-GAN-620	$22.26
Unavailable
#6 SWITCH ASSY., FR. STOP 35340-401-682 Superseded by 35340-GAN-620	$22.26
Unavailable
#6 SWITCH ASSY., FR. STOP 35340-437-661 Superseded by 35340-GAN-620	$22.26
Unavailable
#7 CABLE, FR. BRAKE 45450-397-631	$13.22
Unavailable
#7 CABLE, FR. BRAKE 45450-441-970 Superseded by 45450-397-631	$13.22
Unavailable
#8 PIPE, THROTTLE GRIP 53141-362-000	$17.25
Available to order. Add to View Price
#9 GRIP, R. HANDLEBAR 53165-390-780	$12.80
Available to order. Add to View Price
#9 GRIP, R. HANDLEBAR 53165-397-630 Superseded by 53165-390-780	$12.80
Unavailable
#10 GRIP, L. HANDLEBAR 53166-390-780	$12.80
Available to order. Add to View Price
#11 HOUSING A, GRIP 53167-397-630 Superseded by 53167-KRM-860	$3.71
Unavailable
#12 HOUSING, THROTTLE 53168-166-000	$21.39
Available to order. Add to View Price
#13 BRACKET, R. HANDLE LEVER 53171-KY0-970	$20.29
Available to order. Add to View Price
#13 BRACKET, R. HANDLE LEVER 53171-397-630 Superseded by 53171-KY0-970	$20.29
Unavailable
#14 BRACKET, L. HANDLE LEVER 53172-KY0-970	$26.48
Available to order. Add to View Price
#14 BRACKET, L. HANDLE LEVER 53172-397-630 Superseded by 53172-KY0-970	$26.48
Unavailable
#15 COVER, R. HANDLEBAR CONTROL LEVER (NOT AVAILABLE) 53173-397-630	$5.40
Available to order. Add to View Price
#16 COVER, L. HANDLEBAR CONTROL LEVER 53174-KE2-770	$5.21
Available to order. Add to View Price
#16 COVER, L. HANDLEBAR CONTROL LEVER 53174-397-630 Superseded by 53174-KE2-770	$5.21
Unavailable
#17 LEVER, R. HANDLEBAR 53175-KCH-900	$13.80
Available to order. Add to View Price
#17 LEVER, R. HANDLEBAR 53175-KY0-970 Superseded by 53175-KCH-900	$13.80
Unavailable
#17 LEVER, R. HANDLEBAR 53175-397-630 Superseded by 53175-KCH-900	$13.80
Unavailable
#18 LEVER, L. HANDLEBAR 53178-KCH-900 Superseded by 53178-KRM-860	$11.79
Available to order. Add to View Price
#18 LEVER, L. HANDLEBAR 53178-397-630 Superseded by 53178-KRM-860	$11.79
Unavailable
#19 BOLT, WIRE ADJUSTING 53192-268-000	$8.00
Available to order. Add to View Price
#20 MIRROR ASSY. (NOT AVAILABLE) 88110-441-930	$12.88
Available to order. Add to View Price
#21 BOLT, L. HANDLEBAR CONTROL LEVER PIVOT 90113-422-000	$10.39
Available to order. Add to View Price
#22 NUT, FIXING 90321-315-670	$8.78
Available to order. Add to View Price
#22 NUT, FIXING 90321-968-000 Superseded by 90321-315-670	$8.78
Unavailable
#23 SCREW, PAN (5X14) 90197-601-950 Superseded by 90188-567-000	$2.52
Available to order. Add to View Price
#23 SCREW, PAN (5X14) 93500-05014-0G	$4.41
Available to order. Add to View Price
#24 SCREW, PAN (5X22) 93500-05022-0G	$1.00
Available to order. Add to View Price
#25 NUT, FLANGE (6MM) 94050-06000	$0.60
Available to order. Add to View Price
#26 BOLT, FLANGE (6X28) 95700-06028-07 Superseded by 95701-06028-07	$1.24
Available to order. Add to View Price
#26 BOLT, FLANGE (6X28) 95701-06028-07	$1.24
Unavailable
