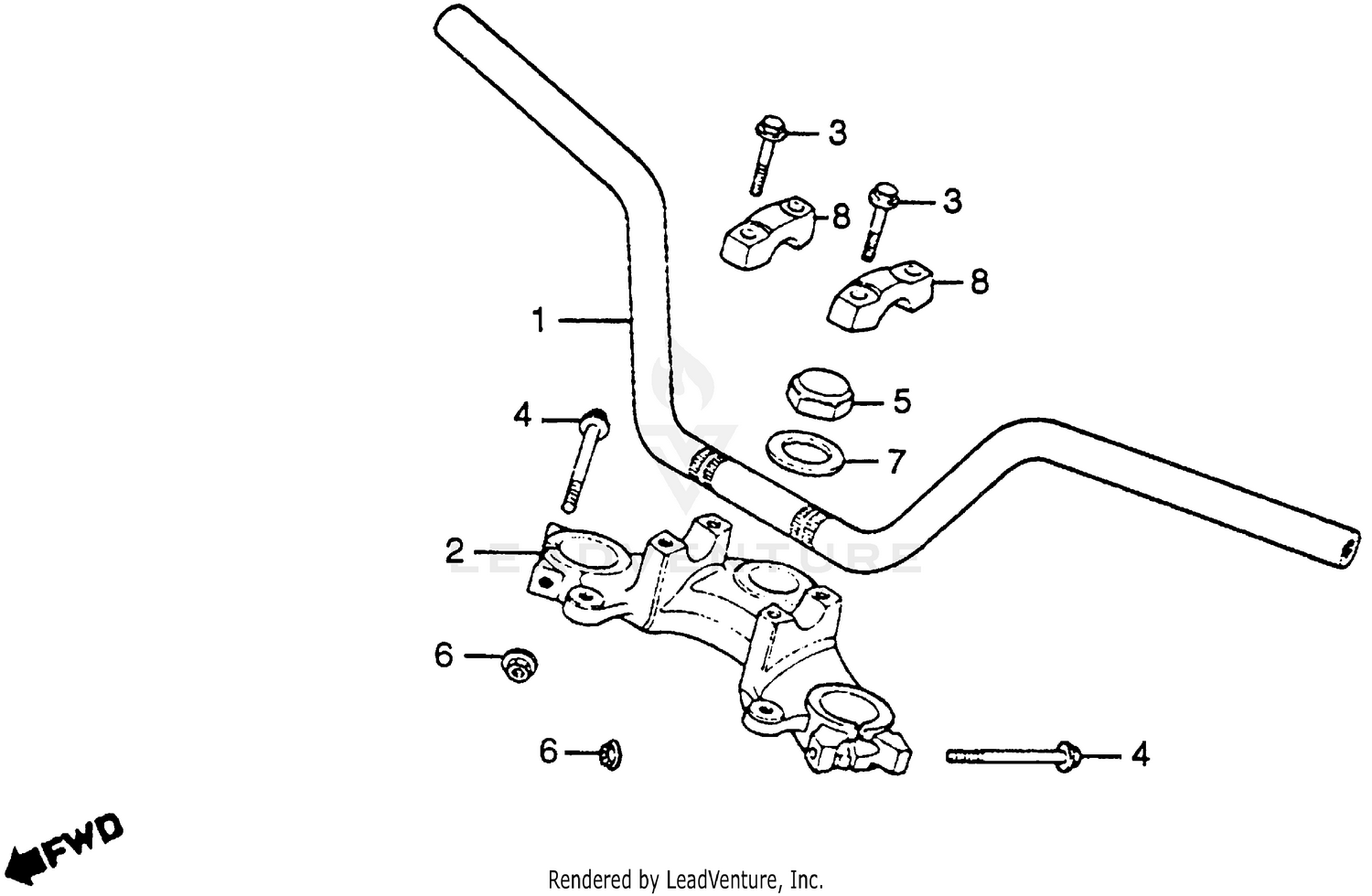

Handlebar + Top Bridge 84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR (NOT AVAILABLE)
53100-397-630
|
$31.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRIDGE, FORK TOP
53230-KCH-850
|
$247.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRIDGE, FORK TOP
53231-397-630
Superseded by 53230-KCH-850
|
$247.83 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE (6X28)
90117-KY0-860
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE (6X28)
90117-397-910
Superseded by 90117-KY0-860
|
$3.71 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE (6X28)
90117-397-911
Superseded by 90117-KY0-860
|
$3.71 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE (7X54)
90155-369-000
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, STEERING STEM
90304-159-000
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE (7MM)
90355-369-000
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, STEERING STEM NUT
90503-KY0-860
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, STEERING STEM NUT
90503-397-910
Superseded by 90503-KY0-860
|
$1.07 | ||
|
Unavailable |
|||
|
#8
HOLDER A2, HANDLEBAR (UPPER)
95014-21201
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
