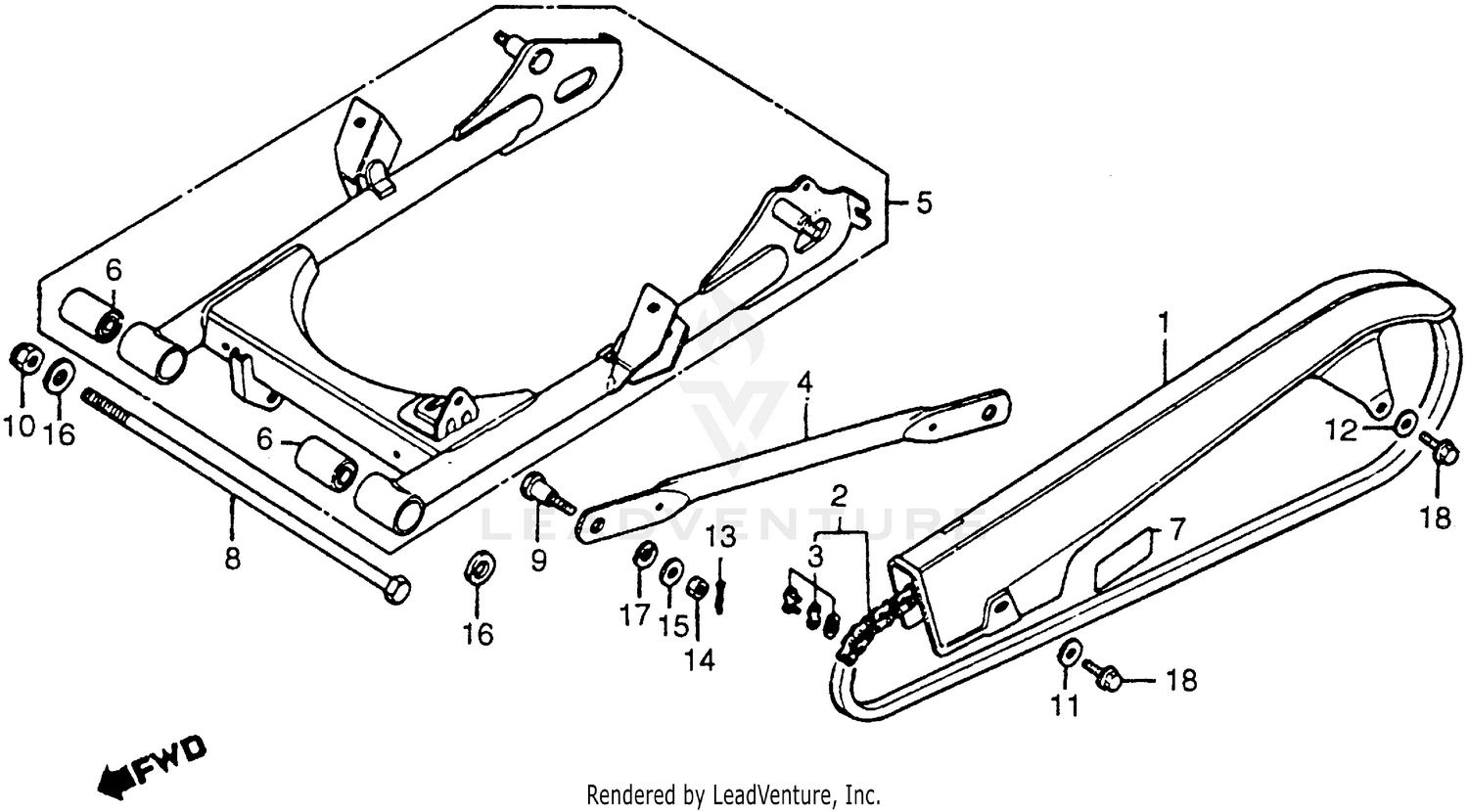

Swingarm + Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN (NOT AVAILABLE)
40510-397-631
|
$38.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, DRIVE (NOT AVAILABLE)
40530-397-630
Superseded by 40530-441-971
|
$110.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, DRIVE (NOT AVAILABLE)
40530-441-970
Superseded by 40530-441-971
|
$110.70 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (NOT AVAILABLE)
40530-441-971
|
$110.70 | ||
|
Unavailable |
|||
|
#3
MASTER LINK
40531-205-013
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, RR. BRAKE STOPPER (NOT AVAILABLE)
43431-397-630
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWINGARM ASSY., RR. *NH1* (BLACK)
52100-441-970ZA
|
$137.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, SWINGARM PIVOT
52147-028-300
|
$20.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, TIRE CAUTION (NOT AVAILABLE)
87505-441-970
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, RR. SWINGARM PIVOT
90121-KE6-830
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, RR. SWINGARM PIVOT
90121-107-780
Superseded by 90121-KE6-830
|
$14.87 | ||
|
Unavailable |
|||
|
#9
BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)
90133-331-770
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCK (12MM)
90353-045-000
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (6X9)
90513-323-000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, NUMBER BRACKET MOUNTING
90563-045-000
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, COTTER (2.0X15) (NOT AVAILABLE)
90701-397-910
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (8MM)
94101-08000
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (12MM)
94102-12000
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING (10MM)
94111-10000
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.64 | ||
|
Unavailable |
|||
