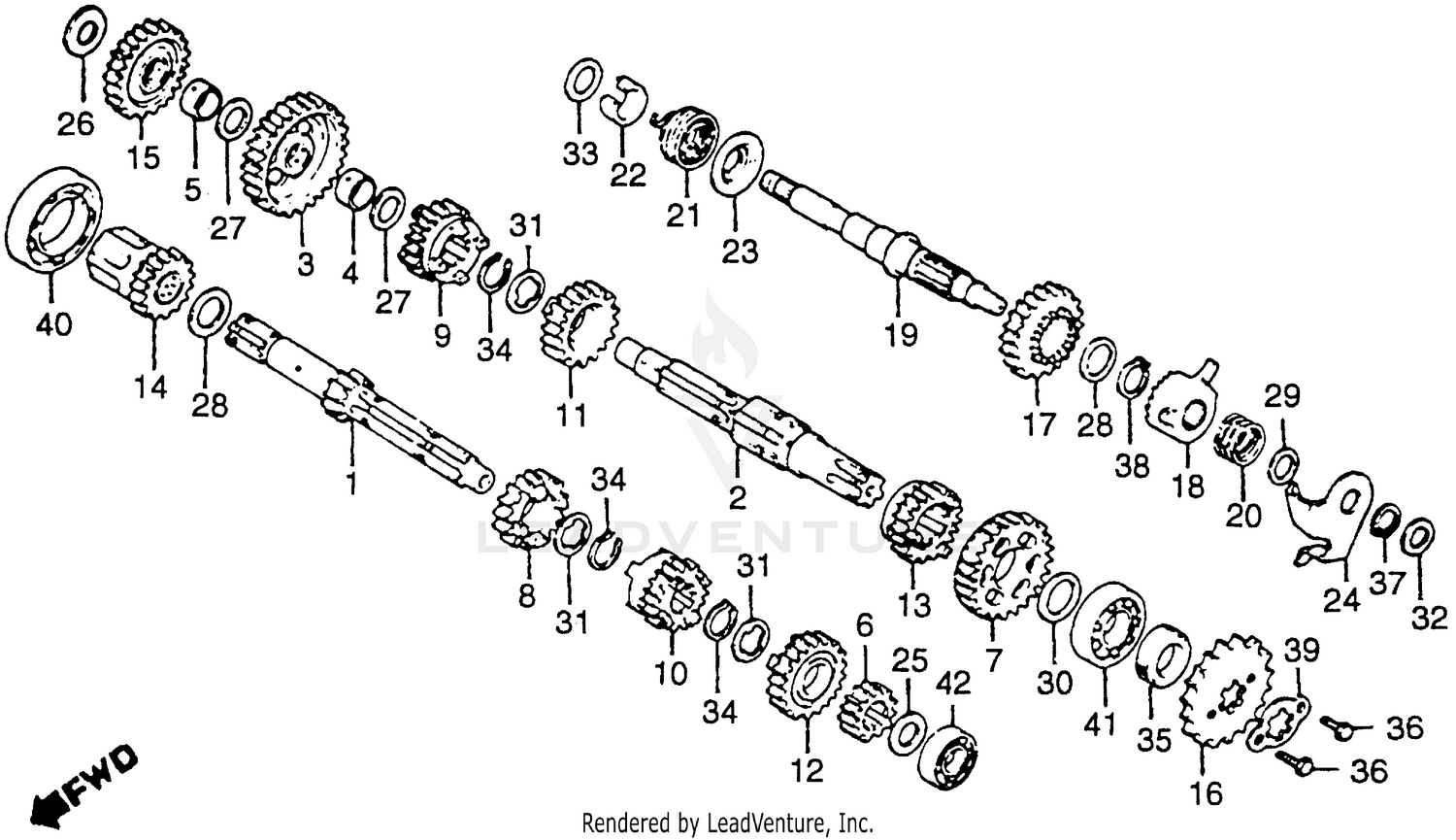

Transmission + Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (13T)
23211-383-000
Superseded by 23211-383-003
|
$87.23 | ||
|
Available to order. Add to View Price |
|||
|
#1
MAINSHAFT, TRANSMISSION (13T)
23211-383-003
|
$87.23 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23221-441-000
|
$43.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW (36T)
23426-KCS-650
|
$66.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW (36T)
23426-439-320
Superseded by 23426-KCS-650
|
$66.35 | ||
|
Unavailable |
|||
|
#4
COLLAR, COUNTERSHAFT LOW GEAR
23427-439-000
|
$20.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSHING
23431-439-000
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT SECOND (17T)
23441-439-000
|
$37.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (32T) (NOT AVAILABLE)
23451-439-900
|
$57.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD (20T)
23461-439-000
|
$87.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (28T)
23471-439-000
|
$88.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT FOURTH (23T)
23481-439-000
|
$92.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (26T)
23491-KN6-930
|
$64.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (26T)
23491-439-000
Superseded by 23491-KN6-930
|
$64.52 | ||
|
Unavailable |
|||
|
#12
GEAR, MAINSHAFT FIFTH (25T)
23501-KN6-930
|
$52.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FIFTH (25T)
23501-439-000
Superseded by 23501-KN6-930
|
$52.35 | ||
|
Unavailable |
|||
|
#13
GEAR, COUNTERSHAFT FIFTH (24T)
23511-439-010
|
$79.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, STARTER (19T)
23520-383-000
|
$92.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR ONLY, IDLE STARTER (29T)
23531-439-000
|
$54.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, DRIVE (14T)
23801-KF9-900
Superseded by 23801-KF9-505
|
$44.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, DRIVE (14T)
23801-437-000
Superseded by 23801-KF9-505
|
$44.16 | ||
|
Unavailable |
|||
|
#17
PINION, KICK STARTER (29T)
28211-397-010
|
$74.45 | ||
|
Unavailable |
|||
|
#18
RATCHET, KICK STARTER
28221-397-020
|
$48.65 | ||
|
Unavailable |
|||
|
#19
SPINDLE, KICK STARTER
28251-397-010
|
$67.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, KICK STARTER RATCHET
28253-KA2-000
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, KICK STARTER
28261-397-000
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR, KICK SPINDLE
28262-397-000
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
RETAINER, STARTER SPRING
28263-397-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, RATCHET GUIDE
28270-397-020
|
$31.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (15MM)
90451-107-000
|
$1.57 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, THRUST (15MM)
90451-365-000
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, THRUST (16.5MM)
90452-107-000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER A, THRUST (20MM)
90453-107-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, THRUST (16MM)
90453-235-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, THRUST (20MM)
90454-107-000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER A, SPLINE (20MM)
90455-107-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, THRUST (12MM)
90459-107-000
|
$1.57 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, THRUST (16MM)
90462-107-000
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#34
SET-RING (20MM)
90605-200-000
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL (20X34X7) (ARAI)
91201-030-023
Superseded by 91201-030-033
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL (20X34X7) (ARAI)
91201-030-025
Superseded by 91201-030-033
|
$6.66 | ||
|
Unavailable |
|||
|
#35
OIL SEAL (20X34X7) (ARAI)
91201-030-033
|
$6.66 | ||
|
Unavailable |
|||
|
#36
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#37
CIRCLIP, OUTER (16MM)
94510-16000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP, OUTER (20MM)
94510-20000
|
$1.34 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLATE B, FIXING
95014-92100
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING, RADIAL BALL (6006)
96100-60060-00
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING, RADIAL BALL (6202Z)
96120-62020-00
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
