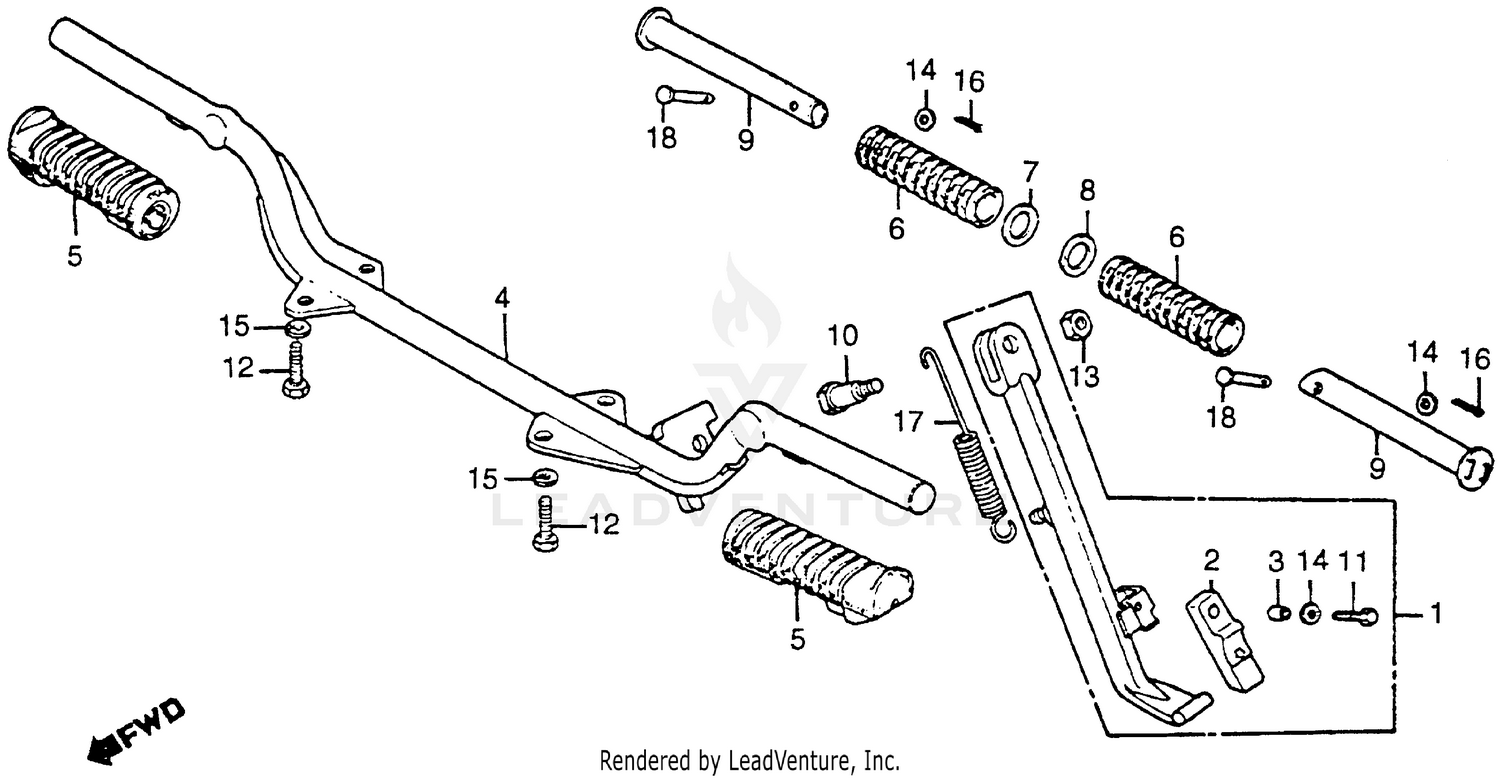

Side Stand + Footpegs Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR ASSY., SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)
50540-383-870ZA
Superseded by 50540-KE2-900ZA
|
$57.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, STAND
50548-324-760
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, STAND RUBBER SETTING
50549-356-700
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAR, FOOTPEG *NH1* (BLACK) (NOT AVAILABLE)
50610-KB5-600
|
$29.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAR, FOOTPEG *NH1* (BLACK) (NOT AVAILABLE)
50610-324-760ZA
Superseded by 50610-KB5-600
|
$29.87 | ||
|
Unavailable |
|||
|
#4
BAR, FOOTPEG *NH1* (BLACK) (NOT AVAILABLE)
50610-439-000ZA
Superseded by 50610-KB5-600
|
$29.87 | ||
|
Unavailable |
|||
|
#5
RUBBER, FOOTPEG
50661-383-670
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, PILLION FOOTPEG
50710-377-000
Superseded by 50716-371-660
|
$16.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, PILLION FOOTPEG
50716-371-660
|
$16.48 | ||
|
Unavailable |
|||
|
#7
WASHER, PILLION FOOTPEG (NOT AVAILABLE)
50712-385-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PILLION STEP
50712-413-000
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAR, PILLION STEP (COO)
50715-413-000
Superseded by 50715-413-305
|
$20.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, SIDE STAND PIVOT
90108-223-000
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. (6X28)
92000-06028
Superseded by 92101-06028-0A
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. (6X28)
92000-06028-0A
Superseded by 92101-06028-0A
|
$1.27 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X28)
92100-06028
Superseded by 92101-06028-0A
|
$1.27 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X28)
92101-06028-0A
|
$1.27 | ||
|
Unavailable |
|||
|
#12
BOLT, HEX. (8X20)
92000-08020-0A
Superseded by 92101-08020-0A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. (8X20)
92101-08020-0A
|
$1.64 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (10MM)
94002-10000-0S
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#14
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#15
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, COTTER (1.6X25)
94201-16250
|
$1.03 | ||
|
Unavailable |
|||
|
#17
SPRING A, SIDE STAND
95014-72102
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN A, PILLION STEP
95015-81000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
