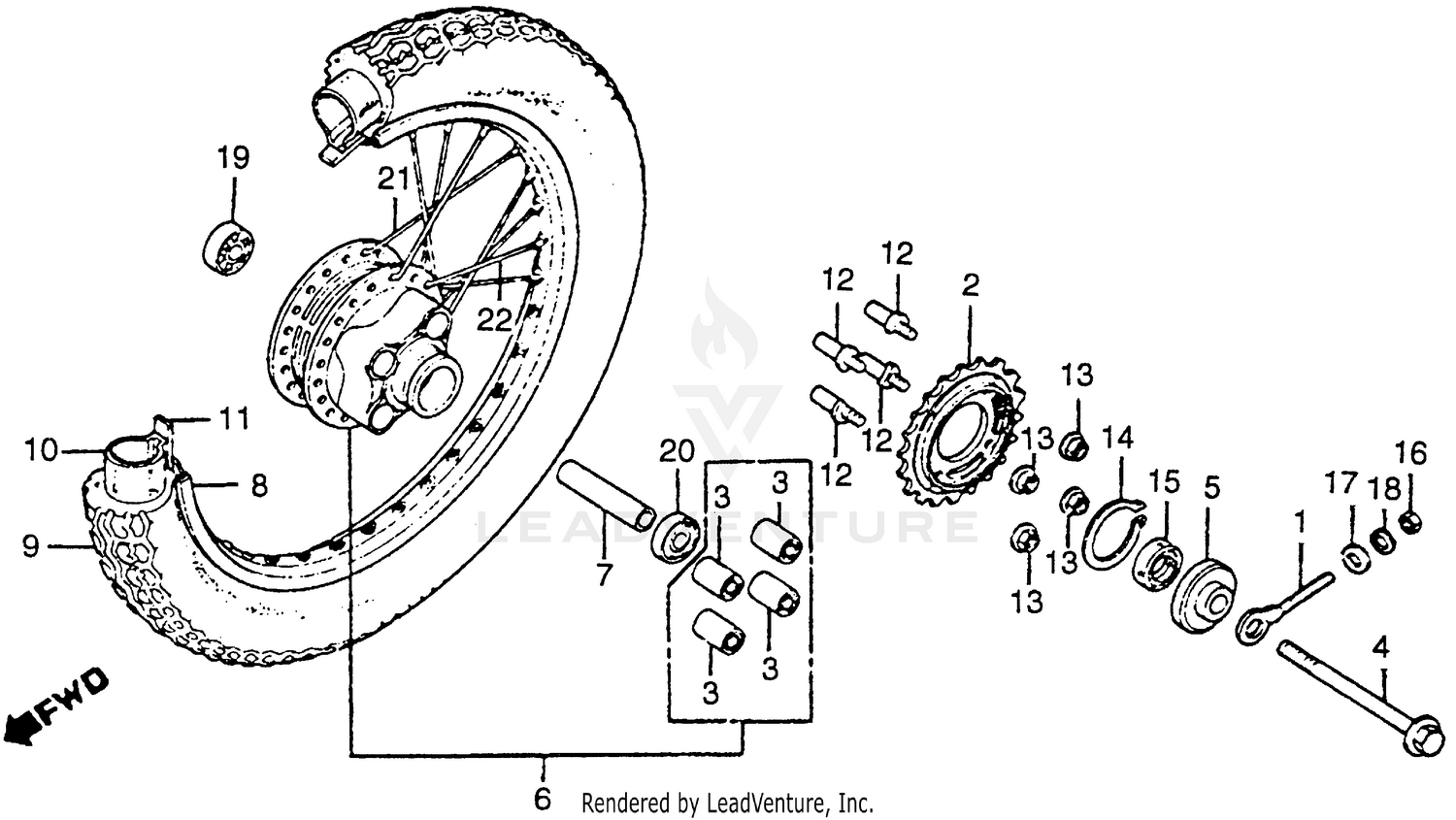

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ADJUSTER, DRIVE CHAIN
40543-384-920
Superseded by 40543-397-890
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#1
ADJUSTER, DRIVE CHAIN
40543-397-000
Superseded by 40543-397-890
|
$5.09 | ||
|
Unavailable |
|||
|
#1
ADJUSTER, DRIVE CHAIN
40543-397-890
|
$5.09 | ||
|
Unavailable |
|||
|
#2
SPROCKET, FINAL DRIVEN (43T)
41200-399-740
|
$80.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (43T)
41200-441-970
Superseded by 41200-399-740
|
$80.86 | ||
|
Unavailable |
|||
|
#3
BUSH, RR. WHEEL DAMPER
41241-222-000
|
$19.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, RR. WHEEL DAMPER
41241-307-000
Superseded by 41241-222-000
|
$19.29 | ||
|
Unavailable |
|||
|
#4
AXLE, RR. WHEEL
42301-401-680
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. WHEEL SIDE
42305-397-910
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB SUB, RR. WHEEL
42610-397-630
Superseded by 42611-397-630
|
$130.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB SUB, RR. WHEEL
42611-397-630
|
$130.21 | ||
|
Unavailable |
|||
|
#7
COLLAR, RR. AXLE DISTANCE
42620-107-010
|
$7.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIM, RR. WHEEL
42701-314-405
|
$81.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIM, RR. WHEEL
42701-441-970
Superseded by 42701-314-405
|
$81.40 | ||
|
Unavailable |
|||
|
#9
TIRE, RR. (NOT AVAILABLE)
42711-441-971
|
$27.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE (275/300-18) (IRC)
42712-KC6-005
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE (275/300-18) (IRC)
42712-168-004
Superseded by 42712-KC6-005
|
$11.82 | ||
|
Unavailable |
|||
|
#11
FLAP, TIRE (1.40/1.60-18) (BS)
42713-401-681
Superseded by 42713-304-003
|
$8.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, DRIVEN SPROCKET FIXING
90128-382-670
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (10MM)
90308-382-670
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP (58MM)
90664-216-000
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL (28X42X7) (ARAI)
91257-230-000
Superseded by 91257-230-003
|
$13.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL (28X42X7) (ARAI)
91257-230-003
|
$13.10 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (28X42X7) (ARAI)
91257-230-005
Superseded by 91257-230-003
|
$13.10 | ||
|
Unavailable |
|||
|
#16
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING (6MM)
94111-06000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (6202U)
96140-62020-10
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6302UU)
96140-63020-10
Superseded by 96150-63020-10
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6302UU)
96150-63020-10
|
$17.80 | ||
|
Unavailable |
|||
|
#21
SPOKE SET B (9X170)
97280-52180-P0
Superseded by 97280-5218010
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPOKE SET B (9X170)
97280-5218010
|
$3.71 | ||
|
Unavailable |
|||
|
#21
SPOKE SET B (9X170)
97280-5218010
|
$3.71 | ||
|
Unavailable |
|||
|
#22
SPOKE SET B (9X169.5)
97491-52179-P0
Superseded by 97491-52179-10
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPOKE SET B (9X169.5)
97491-52179-10
|
$3.87 | ||
|
Unavailable |
|||
