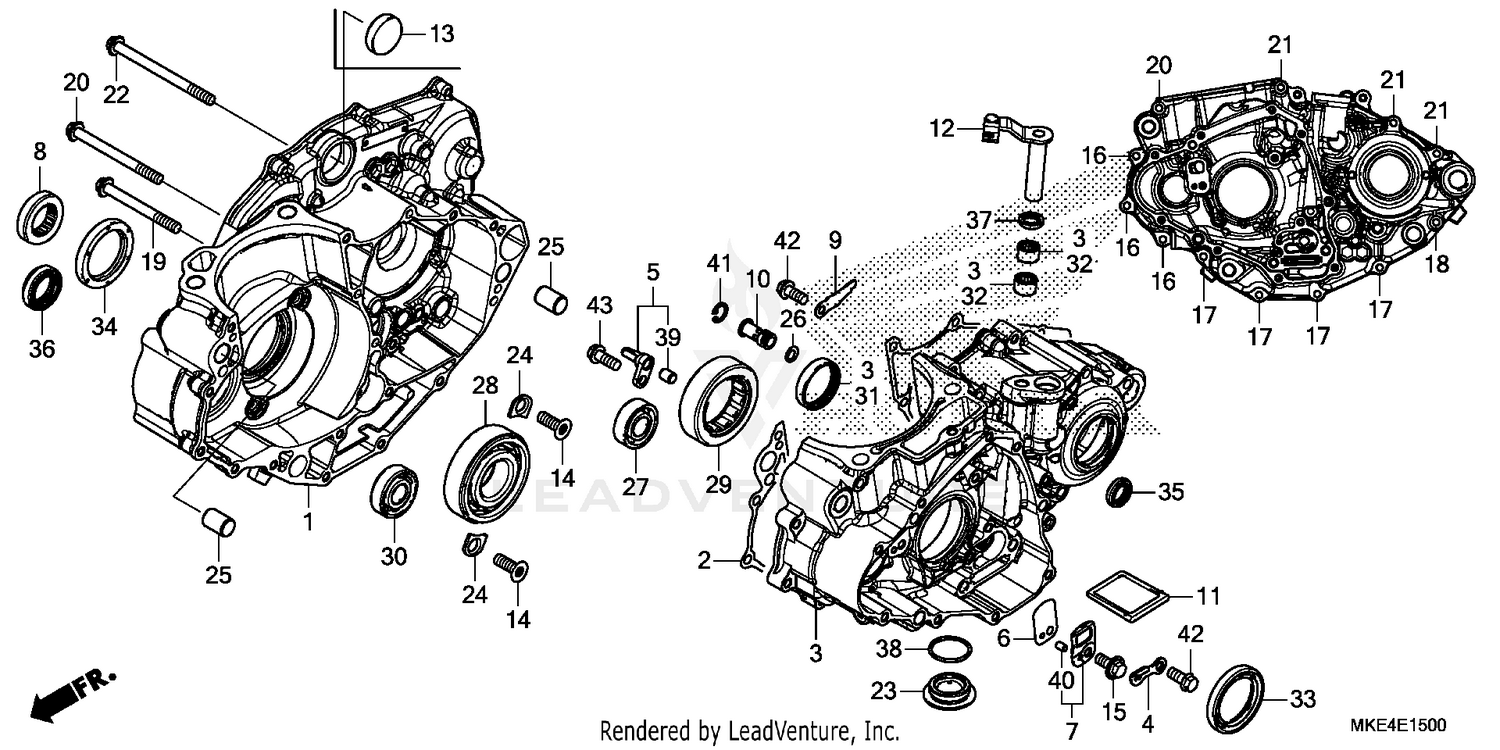

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-MKE-A01
|
$544.32 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-MKE-A01
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L.
11200-MKE-A00
|
$567.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, CAM CHAIN GUIDE
11206-MKE-A00
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, PISTON
11210-MKE-A00
|
$34.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE, REED
11221-MKE-A00
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, REED VALVE
11230-MKE-A00
|
$29.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, CRANKSHAFT
13415-MKE-A00
|
$33.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, OIL GUIDE
15201-MKE-A00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE ASSY., RELIEF
15220-MEN-A30
|
$26.94 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREEN, OIL FILTER
15421-MKE-A00
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, CLUTCH LIFTER
22810-MKE-A00
|
$59.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, SPECIAL FLAT (6X17)
90001-MEN-850
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (6X14)
90019-MKE-A00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X28) (LNSH)
90051-MKE-A00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X40) (LNSH)
90052-MKE-A00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X50) (LNSH)
90053-MKE-A00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X60) (LNSH)
90054-MKE-A00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X70) (LNSH)
90055-MKE-A00
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X75) (LNSH)
90056-MKE-A00
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X80) (LNSH)
90057-MKE-A00
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, DRAIN (30MM)
90088-MKE-A00
|
$18.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, BEARING HOLDER
90441-MEN-A30
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, DOWEL (14X20)
90701-MKE-A00
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (8.5X1.7)
90751-GK1-003
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL SPECIAL (6202)
91001-MEN-A31
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (30X72X19)
91001-MKE-A01
|
$61.68 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, SPECIAL ROLLER (NTN)
91002-MEY-671
|
$57.86 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (15X38X11)
91004-MKE-A01
|
$27.63 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, SHELL (33X38X8) (TOYO)
91022-KA4-740
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, SHELL (33X38X8)
91022-KA4-741
|
$18.38 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, NEEDLE (12X16X10)
91053-719-005
Superseded by 91101-PZ9-000
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, NEEDLE (12X16X10)
91101-PZ9-000
|
$10.06 | ||
|
Unavailable |
|||
|
#33
OIL SEAL (38X52X7) (ARAI)
91201-MEB-671
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL (39X53X7)
91202-MKE-A01
|
$19.38 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL (14X22X5) (NOK)
91203-KA4-771
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#36
OIL SEAL (22X33X7.5)
91203-MKE-A01
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL SEAL (12X18X3) (ARAI)
91205-MEB-671
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING (27X2) (ARAI)
91305-KF0-003
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIN A, DOWEL (8X10)
94301-08100
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN C, DOWEL (4X6.5)
94303-04065
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#41
CIRCLIP (INNER) (14MM)
94520-14000
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
