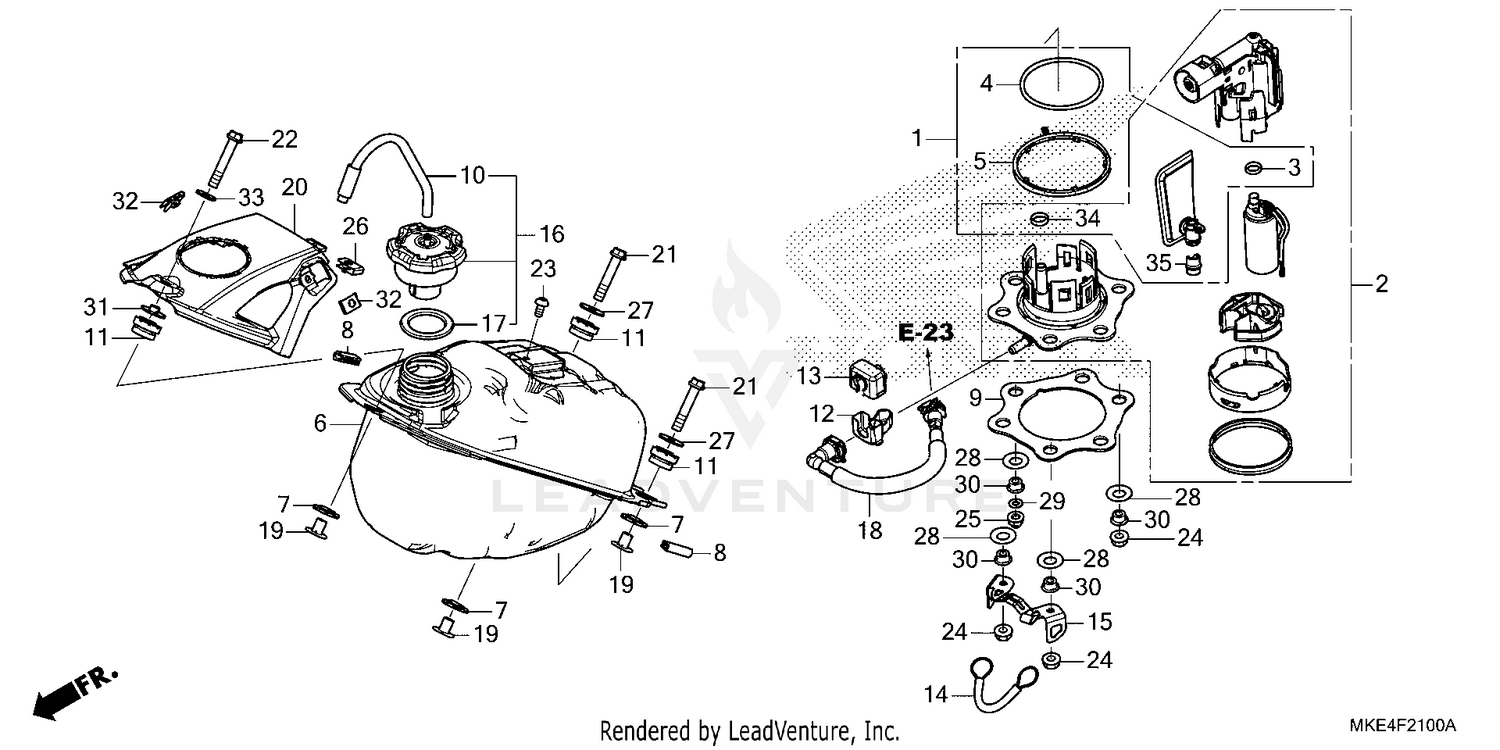

Fuel Tank (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER KIT, FUEL
06160-MKE-A00
|
$94.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
PUMP ASSY., FUEL
16700-MKE-A01
|
$463.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING (8.6X1.9)
16702-KPC-D50
|
$0.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING (3.7X73.9)
16711-MEN-A30
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUST SEAL
16712-MKE-A00
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK, FUEL
17510-MKE-A00
|
$1,093.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, TANK MOUNTING
17515-MKE-A00
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
TRIM, FUEL TANK
17518-MFN-D00
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, FUEL PUMP
17519-MKE-A00
|
$22.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE, FUEL CAP BREATHER
17521-MEN-A30
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, TANK MOUNTING
17523-MKE-A00
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, FUEL CONNECTOR
17575-KRN-A90
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, FUEL CONNECTOR
17576-KRN-A90
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE, FUEL TANK STOPPER
17577-MEN-A30
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, STOPPER CABLE
17578-MKE-A00
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP ASSY., FUEL TANK
17620-MKE-A00
|
$44.57 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, FUEL CAP
17622-MKE-A00
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, FUEL FEED
17630-MKE-A01
|
$90.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, RADIATOR MOUNTING
19052-MAC-680
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
SET, SHELTER ASSY.
83150-MKE-A00
Superseded by 83150-MKE-305
|
$24.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (6X28)
90107-MEN-A60
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X35) (SH)
90107-MKE-A00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SPECIAL (5X10) (SUS)
90119-MGE-000
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE (6MM) (Honda Code 7039662)
90217-HW1-670
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE CAP (6MM)
90301-MKE-A00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CLIP (5MM) (Honda Code 7963051)
90305-HW1-730
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN (6MM)
90404-GE2-760
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, CONICAL SPRING FUEL PUMP
90502-MEN-A30
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (6MM) (Honda Code 7039829)
90504-HW1-670
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR, FUEL PUMP
90504-MKE-A00
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR, FR. FENDER
90512-KZ4-J20
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, CLIP (5MM)
90677-KAN-961
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (6MM)
94103-06700
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (10X2.4)
16702-KTR-940
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#35
RUBBER, STOPPER
16735-MEN-A51
|
$8.66 | ||
|
Available to order. Add to View Price |
|||
