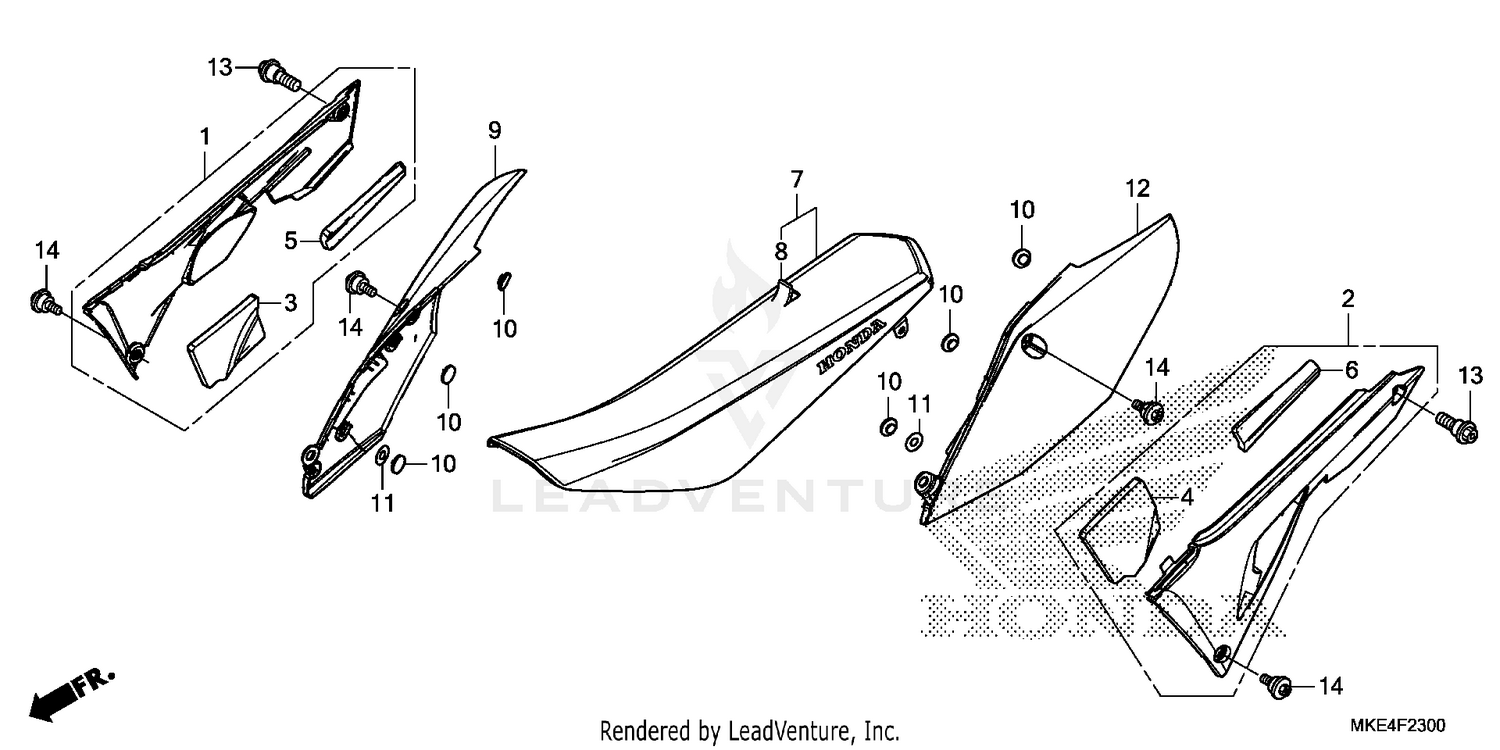

Seat@side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. AIR CLEANER BOX *R292R* (EXTREME RED)
17231-MKE-A00ZA
|
$49.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. AIR CLEANER BOX *R292R* (EXTREME RED)
17232-MKE-A00ZA
|
$49.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAT A, R. AIR CLEANER BOX COVER
17233-MKE-A00
|
$10.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
MAT A, L. AIR CLEANER BOX COVER
17234-MKE-A00
|
$10.52 | ||
|
Available to order. Add to View Price |
|||
|
#5
MAT B, R. AIR CLEANER BOX COVER
17235-MKE-A00
|
$8.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAT B, L. AIR CLEANER BOX COVER
17236-MKE-A00
|
$8.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT (TYPE1)
77100-MKE-A01ZA
Superseded by 77100-MKE-A02ZA
|
$301.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT (TYPE1)
77100-MKE-A02ZA
|
$301.09 | ||
|
Unavailable |
|||
|
#8
LEATHER, SEAT (NO LETTERS PRINTED)
77110-MKE-A01
|
$119.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, R. SIDE *NH196* (ROSS WHITE)
83510-MKE-A00ZA
|
$56.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, SIDE COVER STOPPER
83515-MKE-A00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SIDE COVER STOPPER
83516-MKE-A00
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, L. SIDE *NH196* (ROSS WHITE)
83610-MKE-A00ZA
|
$56.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL (8MM)
90121-MKE-A00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL (6MM)
90126-MKE-A00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
