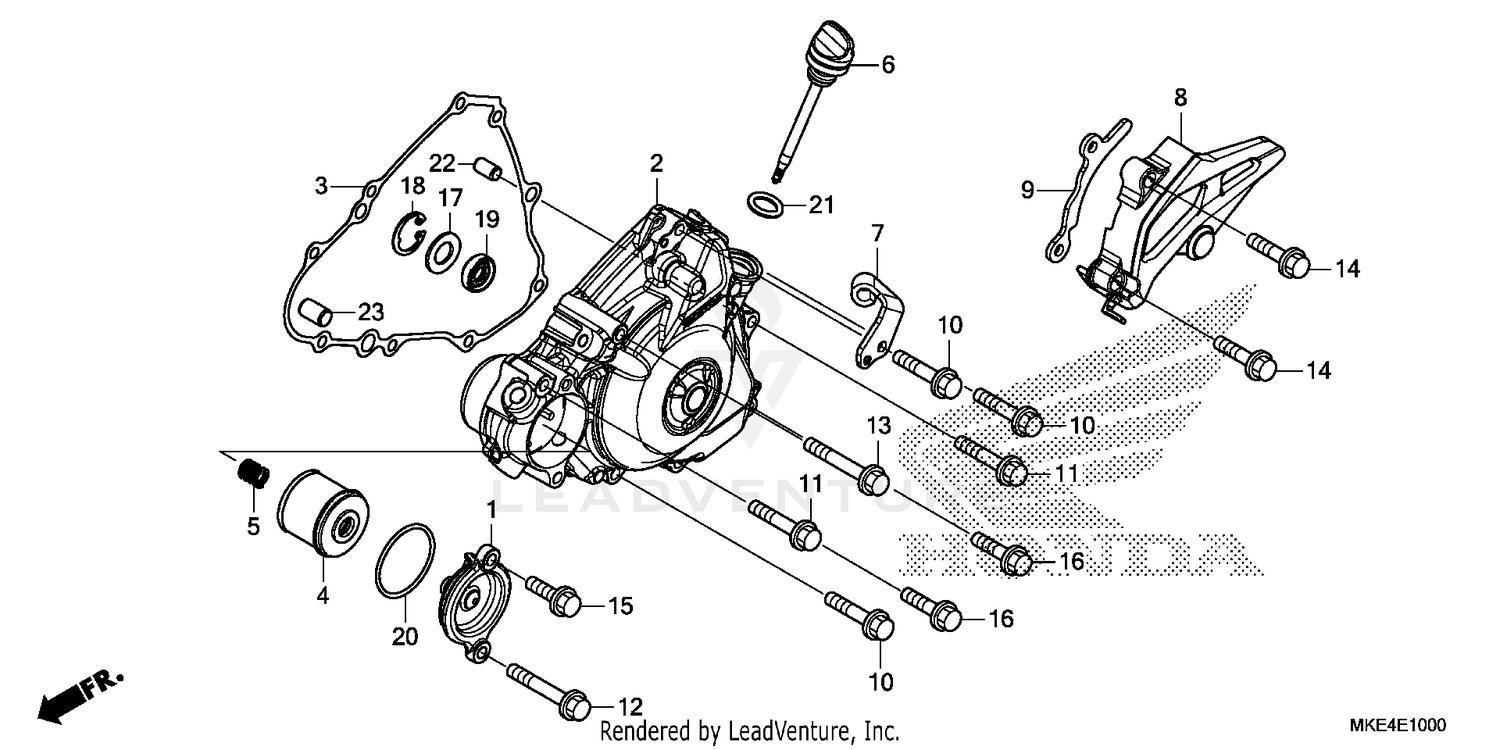

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL FILTER
11333-MKE-A00
|
$48.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. CRANKCASE
11340-MKE-A00
|
$261.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, L. COVER
11395-MKE-A01
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
FILTER, ENGINE OIL
15412-MEN-671
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, OIL FILTER
15414-MEB-670
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIPSTICK, OIL
15651-MKE-A00
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
RECEIVER, CLUTCH CABLE
22838-MKE-A00
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, DRIVE SPROCKET
23810-MKE-A00
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, DRIVE CHAIN
23812-MKE-A00
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X35) (SH)
90023-MKE-A00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X40) (SH)
90024-MKE-A00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X50) (SH)
90025-MKE-A00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X55) (SH)
90026-MKE-A00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X30) (SH)
90030-MKE-A00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X18)
90105-MEN-A60
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X25)
90109-MEN-A70
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (13X24X1.6)
90401-MEY-670
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP, SPECIAL (INNER) (24MM)
90602-MEB-670
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (10X21X5)
91204-MEN-A31
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (39.8X2.2) (ARAI)
91302-PA9-003
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#21
D-RING (14X3)
91307-KRN-A41
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
